That assumption skips a lot of engineering. Micron rating alone doesn't define how a cartridge performs. Pore-rating type, flow conditions, cartridge integrity, and water chemistry all decide whether that number translates into real-world reliability. A 0.1 micron rating printed on a spec sheet says almost nothing about pressure drop, service life, or whether the cartridge will survive contact with your glycol or biocide program.
This article covers what 0.1 micron filtration actually represents, the operating range that determines whether it works, how to validate it, and what happens when the wrong cartridge ends up in a heat-transfer loop.
TL;DR
- 0.1 micron is a nominal or absolute particle-retention rating; the meaning depends on the manufacturer's test method.
- Fine filtration cuts very small particles and some microorganisms but is not certified sterilization or disinfection.
- Finer media raises pressure drop, cuts flow, and shortens service life versus coarser cartridges.
- Verify flow, pressure-drop curves, chemical compatibility, validation data, bypass protection, and change-out criteria before specifying 0.1 micron media.
What 0.1 Micron Represents in Data Center Water Systems
A micron is one-millionth of a meter, according to the National Institute of Standards and Technology. A 0.1 micron rating means the cartridge retains particles or organisms around that size as water passes through the media. Contaminants build up on the surface or within the depth of the material.
That's the mechanism. What it does not tell you is how consistently it happens.
Design Claim vs. Field Performance
Manufacturers publish three different kinds of numbers, and they're not interchangeable:
- Design specification – what the cartridge is built to achieve under controlled conditions
- Laboratory retention claim – results from a specific test protocol, fluid, and flow rate
- Field performance – what actually happens once temperature, pressure, and water chemistry start moving around
A cartridge that hits its rating in a lab doesn't automatically hit it in a chilled-water loop running variable flow through the summer.
Where Fine Filtration Fits
Depending on system design, 0.1 micron cartridges may show up in:
- Chilled-water loops
- Process-water lines
- Make-up water treatment
- Side-stream filtration
- Equipment-protection stages ahead of sensitive components
Ultra-fine filtration supports cleaner heat-exchanger surfaces and reduces particulate circulation. It cannot, on its own, control dissolved minerals, corrosion chemistry, dissolved gases, or every biological risk in the loop. Those need dedicated water-treatment chemistry working alongside filtration, not instead of it.
Nominal vs. Absolute Ratings
Nominal ratings generally indicate approximate or partial retention under a stated test method. They should never be read as guaranteed removal at the rated size.
Absolute ratings are more stringent, tied to a specified retention level and test protocol. But "absolute" isn't a universal standard across manufacturers — one supplier's absolute rating may differ from another's. Confirm the exact definition in the datasheet rather than assuming it.

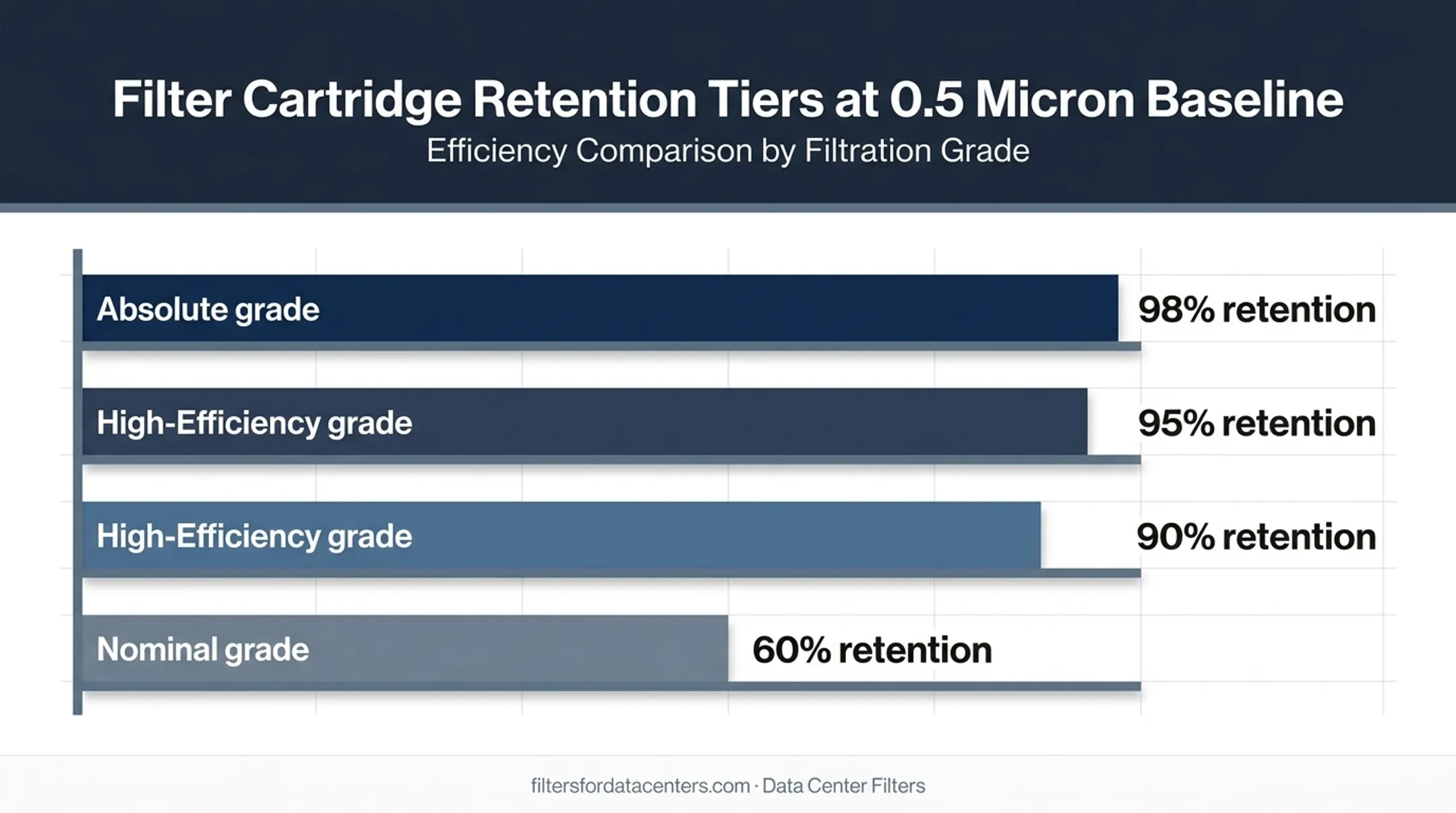

ClearFlow high-flow cartridges illustrate this well. Their documented lineup spans absolute-rated models (rated to 98% retention) down through high-efficiency and nominal grades rated at 90%, 95%, and 60%.
That documented range starts at 0.5 micron. If your application needs 0.1 micron performance, you're often looking at a different product category—such as membrane cartridges—not a standard high-flow depth element.
Operating Range and Factors That Influence Filtration
The number on the box and the number your system can actually use are two different things. Here's what shifts one into the other.
Nominal Operating Conditions
Confirm these manufacturer ratings before you specify a cartridge:
- Rated flow range
- Maximum differential pressure
- Inlet pressure
- Temperature range
- Recommended water quality
Higher flow velocity through fine media increases the loading rate. That raises pressure drop faster and increases breakthrough risk as the cartridge nears its limit.
Design and Material Constraints
Common constructions behave differently under load:
- Pleated depth media – higher surface area, good dirt-holding capacity
- Melt-blown depth media – graduated density, decent flow tolerance
- Membrane cartridges – tighter, more consistent pore structure, typically lower flow capacity
- Supported composite media – built for mechanical strength under pressure cycling
Whatever the construction, confirm wetted-material compatibility with chemicals already circulating in the loop:
- Biocides and disinfectants
- Corrosion inhibitors
- Glycol
- Oils and cleaning agents
Polypropylene media, common in high-flow cartridges, generally tops out around 176°F (80°C). Exceed that and you're outside the manufacturer's documented range regardless of micron rating.
Pretreatment and Contaminant Loading
Dropping a 0.1 micron cartridge straight into a stream carrying corrosion products, scale, or construction debris is a fast way to burn through service life. Upstream screens or coarse filters should capture larger debris first. A staged approach (coarse, then intermediate, then fine) protects the expensive fine-filtration stage from doing the coarse stage's job.
Environmental and Duty-Cycle Effects
A cartridge validated on clean laboratory water won't necessarily behave the same way in a cooling loop with variable chemistry, high solids loading, or continuous duty. These conditions stress cartridge integrity over time:
- Temperature swings
- Intermittent operation
- Pressure cycling
- Repeated startup/shutdown cycles
Safe Operating Margin
Running continuously at maximum rated flow or maximum differential pressure leaves no room for loading, abnormal events, or scheduled maintenance. Build in margin based on manufacturer documentation and your own site testing, not just the printed ceiling.
Key Technical Properties of 0.1 Micron Cartridges
Four properties determine whether a fine-rated cartridge actually fits your application.
Retention and Selectivity
Particle retention depends on more than the headline micron number:
- Pore-size distribution and media structure
- Particle shape and deformability
- The manufacturer's test protocol
Suspended-particle removal is a separate problem from dissolved-contaminant treatment. A fine cartridge, even a well-validated one, will not remove dissolved salts or most chemical contaminants.
Pressure Drop and Flow Capacity
Finer media resists flow more than coarse media, and that resistance climbs as retained solids build up.

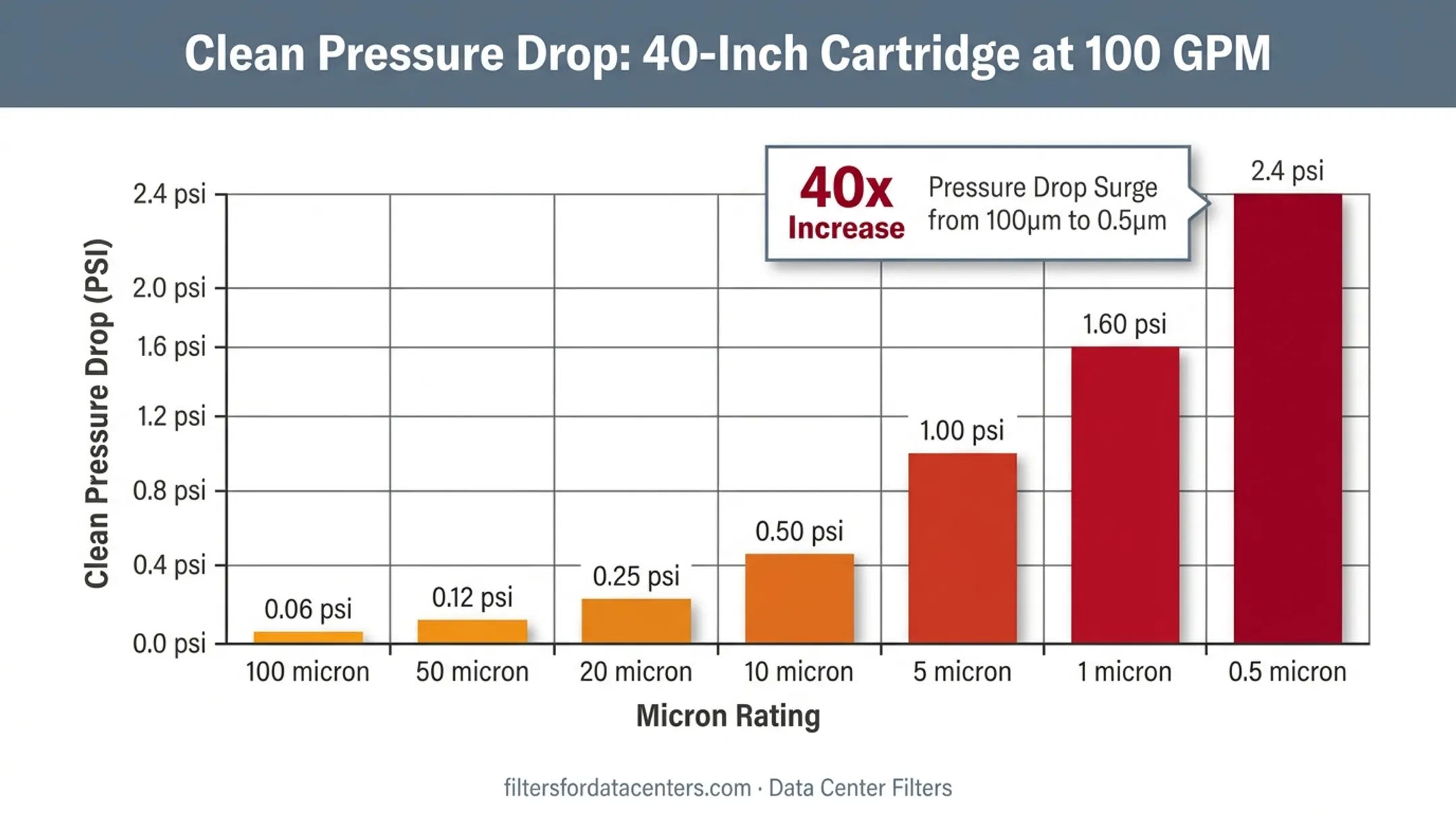

For comparison, ClearFlow's own data shows clean pressure drop on a 40-inch cartridge at 100 GPM ranging from 0.06 psi at 100 micron up to 2.4 psi at 0.5 micron. That is a 40x jump when the rating tightens by two orders of magnitude. At true 0.1 micron ratings, expect that curve to steepen further.
Always request the manufacturer's pressure-drop curve. Generic performance claims are not enough.
Dirt-Holding Capacity and Service Life
Replacement frequency depends on several operating factors:
- Upstream water quality
- Media surface area and pleat design
- Depth-loading capability
- Operating flow rate
Rising differential pressure is a practical trigger for replacement or inspection, within the supplier's stated limits. Typical industrial cartridge guidance calls for change-out around 30 psi differential. Maximums often sit near 60 psi at 70°F, falling to about 35 psi at 176°F. Treat those as reference points only; every product sets its own limits.
Integrity and Construction
Bypass is the silent failure mode. End caps, seals, support layers, and housing fit all need to be right, or untreated water routes around the media instead of through it.
Confirm construction integrity against standards or test methods for your water application. Product-specific ratings do not transfer. Eaton's LOFMEM TFA, for example, claims 99.98% efficiency at a 0.10 micron absolute rating. That figure applies only to that named product under that test, not to every cartridge with the same micron label.
How 0.1 Micron Cartridges Are Specified, Measured, and Validated
Treat the cartridge as both a purchasing decision and an ongoing operational control point.
Specification and Documentation
Before ordering, confirm you have documentation covering:
- Rating type (nominal or absolute) and the test method behind it
- Rated flow range and initial pressure drop
- Maximum differential pressure and temperature limits
- Chemical compatibility for your specific water treatment program
- Dimensions, seal materials, and housing requirements
- Expected service endpoint or change-out trigger
Ask whether published values are rated, tested, typical, or maximum, and whether they apply to a new cartridge or a loaded one. Confirm whether performance data reflects particle retention, microbial challenge testing, or another method entirely. These categories are not interchangeable.
Measurement and Verification
Differential-pressure gauges upstream and downstream of the housing, paired with flow measurement, let commissioning teams establish a clean baseline. Compare that baseline against operating readings over time to catch fouling before it becomes a problem. A basic stainless steel analog gauge on a 0–100 PSI dial is often enough to spot the trend.
For deeper validation, use particle-counting, turbidity, or microbial challenge-test methods suited to your application. Know what each method measures and where its limits are.
Installation and Bypass Control
A correctly rated cartridge protects nothing if water goes around it. Check:
- Housing cleanliness before installation
- Correct gasket seating
- Proper cartridge orientation
- Controlled flushing after startup
- Leak checks
- Bypass valves closed or properly controlled
A damaged seal or an open bypass defeats even a well-chosen cartridge.
Field Validation and Maintenance Records
Log these details at every install and change-out:
- Initial pressure drop and flow
- Water chemistry
- Installation date and cartridge batch
- Inspection notes
- Replacement reasons
Site-specific data refines your selection and replacement intervals far better than a generic calendar schedule ever will.
Implications of Operating Outside the Recommended Range
Push a cartridge past its rated conditions, and the failure modes stack up quickly.
Performance Loss Mechanisms
Operating outside rated conditions usually shows up in one of these ways:
- Excessive flow, high solids loading, chemical incompatibility, or elevated temperature raises pressure drop, cuts usable flow, damages media, or triggers premature failure
- Restricted flow or high pump resistance hits cooling capacity, heat-exchanger performance, energy use, and maintenance workload
Reliability and Water-Quality Risks
Inadequate filtration or bypass lets particulate deposition, fouling, corrosion-product circulation, and biological growth continue unchecked. Heat-transfer efficiency drops over time as a result.
The ASHRAE condenser water systems chapter notes that sediment and particulates can foul condenser-water systems. It recommends side-stream filtration instead of routing open cooling-tower water straight through coils or heat exchangers without filtration and treatment first.
Fine filtration works best as one piece of a broader program that includes corrosion monitoring and microbiological control—not as a standalone fix.

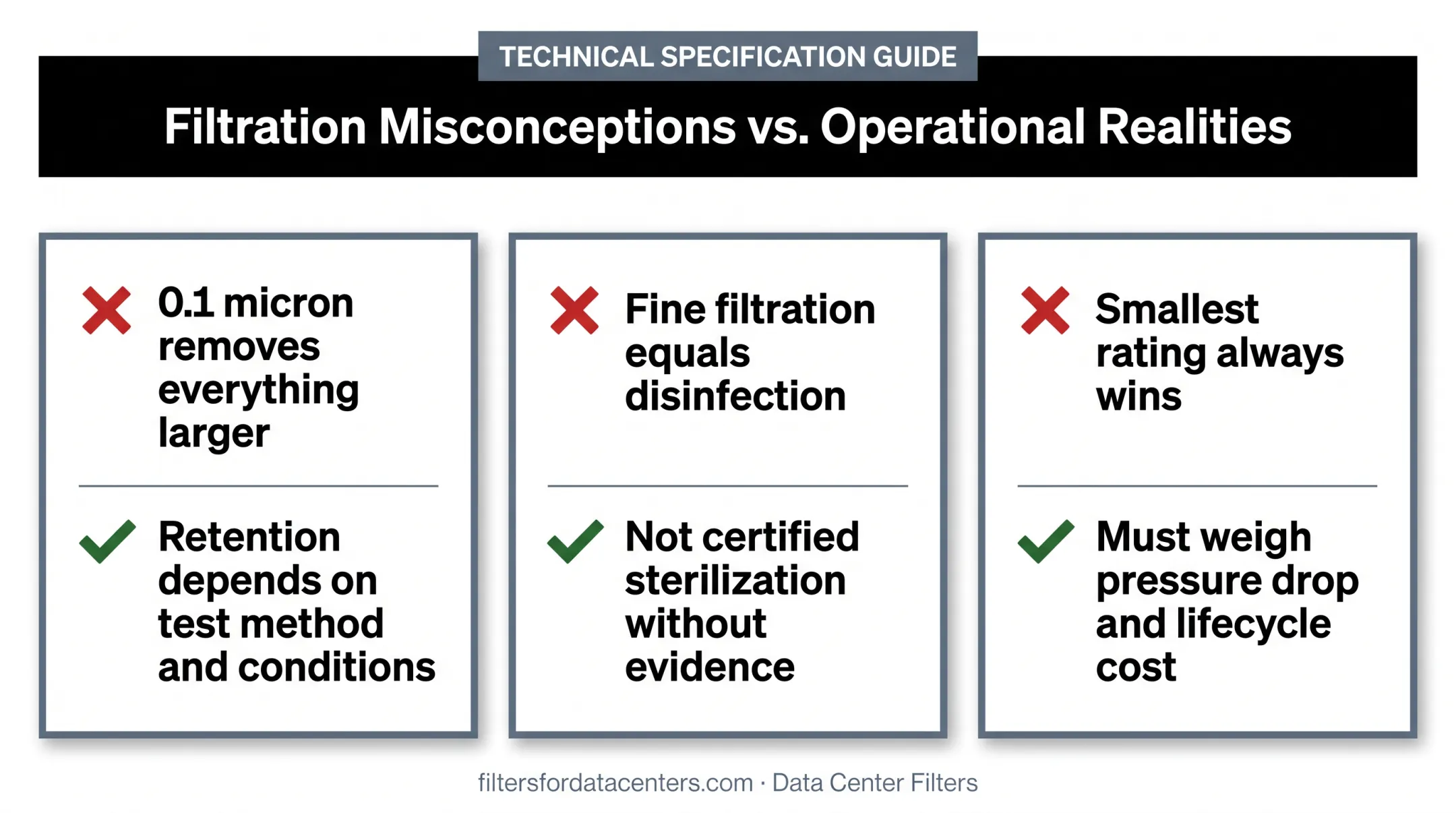

Common Misinterpretations
Three assumptions cause the most trouble:
- "0.1 micron removes everything larger, always." Retention depends on test method, flow conditions, and cartridge integrity, not just the printed number.
- "Fine filtration equals disinfection." A 0.1 micron cartridge is not automatically a bacteria, virus, microplastics, or sterilization solution without product- and test-specific evidence.
- "Smallest rating wins." Selecting the tightest available micron rating without checking pressure drop, flow demand, prefiltration needs, and lifecycle cost usually creates more maintenance headaches than it solves.
Complementary Data Center Protection
Water-side filtration handles what's in the loop. It doesn't touch what's coming through the air intake.
Data Center Filters builds custom external air-intake systems and provides AFF Field Services for installation and maintenance when airborne debris and cooling-air protection need equal attention. Air-side and water-side filtration work as complementary layers, not substitutes for each other.
Conclusion
A 0.1 micron rating is a fine filtration claim whose real meaning hinges on whether it's nominal or absolute, how it was tested, and how the cartridge holds up in your actual water system. Choosing the smallest available number isn't a strategy.
Reliable specification means evaluating these factors together, then setting replacement criteria from real operating data:
- Flow rate and pressure drop
- Water chemistry compatibility
- Cartridge integrity under load
- Pretreatment and ongoing monitoring
Before changing filtration in a mission-critical cooling loop, lean on manufacturer documentation, qualified water-treatment professionals, and site-specific validation. Use that evidence as the gate—not the micron label alone—so you don't trade one maintenance problem for another.
Frequently Asked Questions
Will a 0.1 micron water filter cartridge remove bacteria?
Many bacteria are larger than 0.1 micron, so a validated absolute-rated cartridge can retain a substantial share of bacterial cells. Treat filtration as particle control, not disinfection, and confirm organism-specific performance with the manufacturer.
Does a 0.1 micron water filter cartridge remove microplastics?
Particles larger than the cartridge's validated retention size may be captured, including some microplastics. Removal still hinges on particle size and shape plus tested performance—not the micron number alone.
What is the lowest micron water filter available?
Commercial ratings span a wide range by media type and use case. The lowest nominal number on a datasheet is not automatically best for data center cooling once flow, pressure drop, and system design are considered.
Is a 0.1 micron water filter cartridge suitable for a data center cooling loop?
It can be, when flow rate, allowable pressure drop, water chemistry, and pretreatment match the cartridge's application data. Match the product to your loop design rather than assuming any 0.1 micron rating will fit.
What is the difference between a nominal and absolute 0.1 micron filter?
Nominal ratings describe approximate retention at a stated size, often well below full capture. Absolute ratings indicate high retention under a defined test method—commonly ≥99.9%—so always read the supplier's test definition before comparing brands.
How do you know when to replace a 0.1 micron water filter cartridge?
Monitor differential pressure, flow reduction, water-quality trends, and visible damage against the manufacturer's limits. Use those signals with your site's maintenance procedure to decide when a change-out is due.
