Introduction
Cooling tower water distribution is the piping, pumping, filtration, and discharge arrangement that moves and conditions water so a tower can reject heat consistently across shifts and seasons.
U.S. data center owners, facility managers, engineers, and maintenance teams feel the impact when that path breaks down. Uneven flow cuts heat rejection capacity, shortens equipment life, and makes routine service harder without risking critical loads.
Cooling is rarely the headline cause of downtime, but it still drives real outages. Uptime Institute's 2024 Annual Outage Analysis found that cooling was the cause of 9% of respondents' most recent impactful outages.
Pumps, nozzles, filters, and basins each get discussed on their own. This article treats them as one connected flow path, covering system types, components, filtration locations, design factors, and common failure points.
Key Takeaways
- Treat distribution, filtration, and treatment as one loop—moving water without conditioning it invites fouling and scale.
- Match gravity-flow or pressurized spray to tower design and how you maintain basins and nozzles.
- Side-stream filtration, strainers, and blowdown control prevent fouling, scale, and biological growth.
- Redundancy only counts if it's tested, not assumed from equipment count alone.
What Is Cooling Tower Water Distribution, Piping, and Filtration?
Cooling tower water distribution is the network of pumps, supply and return piping, headers, basins, troughs, nozzles, valves, and controls that spreads water uniformly across a tower's heat-transfer area. Get this wrong, and the rest of the cooling plant compensates for a problem it can't actually fix.
Piping transports water between the tower, condenser or heat exchanger, pumps, treatment equipment, makeup-water source, and blowdown connection. Filtration removes contaminants from makeup or recirculating water before they cause damage downstream.
Distribution vs. Treatment: Two Different Jobs
Distribution controls where and how water flows. Filtration and chemical treatment control the physical and chemical condition of that water. Confusing the two leads to the wrong fix: a bigger pump won't remove sediment, and a finer filter won't correct an unbalanced header.
In practice, that means:
- Distribution equipment (pumps, headers, spray branches, nozzles, basins) moves water where it needs to go.
- Filtration equipment (strainers, bag housings, cartridge filters) protects that equipment from what's suspended in the water.
Data Center Filters' cooling-water filtration line targets this second job:
- High Flow Filter Cartridges (0.5 to 100 microns) cut wear on pumps, valves, and heat exchangers
- Felt Filter Bags remove up to 99% of particulates before sediment becomes a mechanical problem
- Duplex strainers use dual chambers so one basket can be cleaned while the other keeps water moving
The goal is to maximize air-to-water contact, hold the required heat-rejection capacity, protect pumps and nozzles from wear, and return properly cooled water to the data center loop.
Water-Side Filtration Is Not Air-Side Filtration
Water filtration addresses solids and contaminants inside the tower's recirculating loop. Air filtration protects coils and outdoor equipment from airborne debris like dust, insects, and leaves. Neither substitutes for the other. A facility needs both, applied to their respective sides of the system.
Why the System Matters in Data Centers and Where It Is Applied
Data center cooling demand is continuous. There's rarely a slow season, and thermal excursions can threaten servers and power equipment fast. Maintenance windows are often narrow or nonexistent, which makes distribution reliability a design requirement, not an afterthought.
ASHRAE's TC9.9 white paper on water-cooled server design notes that different water loops carry different chemistry, filtration, and pressure requirements, and that localized supply-side filtration is necessary specifically to prevent sediment fouling. That guidance reflects how facility water loops actually behave in the field.
What happens when distribution or filtration falls short:
- Clogged strainers and nozzles reduce flow where it's needed most
- Uneven wetting across the fill creates dry zones and wastes heat-transfer surface
- Pump strain increases as systems fight restrictions they weren't designed for
- Approach temperatures climb, triggering avoidable alarms or load limitations
Where Filtration Gets Applied
Data centers typically apply filtration at several points along the loop, not just one:
- Makeup-water pretreatment — removes sediment before water ever enters the tower
- Side-stream filtration — continuously cleans a portion of recirculating water
- Full-flow strainers or filters — protect pumps, nozzles, heat exchangers, and control components directly
- Blowdown or discharge treatment — manages water chemistry where local requirements govern release or reuse
These applications show up across water-cooled chiller condenser loops, evaporative cooling systems, hybrid cooling plants, and towers serving mission-critical facilities.
System selection should account for:
- Redundancy needs and how much maintenance downtime the facility can tolerate
- Water availability, local climate, and water chemistry
- Tower configuration and heat load
- Discharge requirements under applicable state and local permits
Regulatory requirements for blowdown discharge vary by state and permit. Always check current local rules before finalizing a discharge plan.

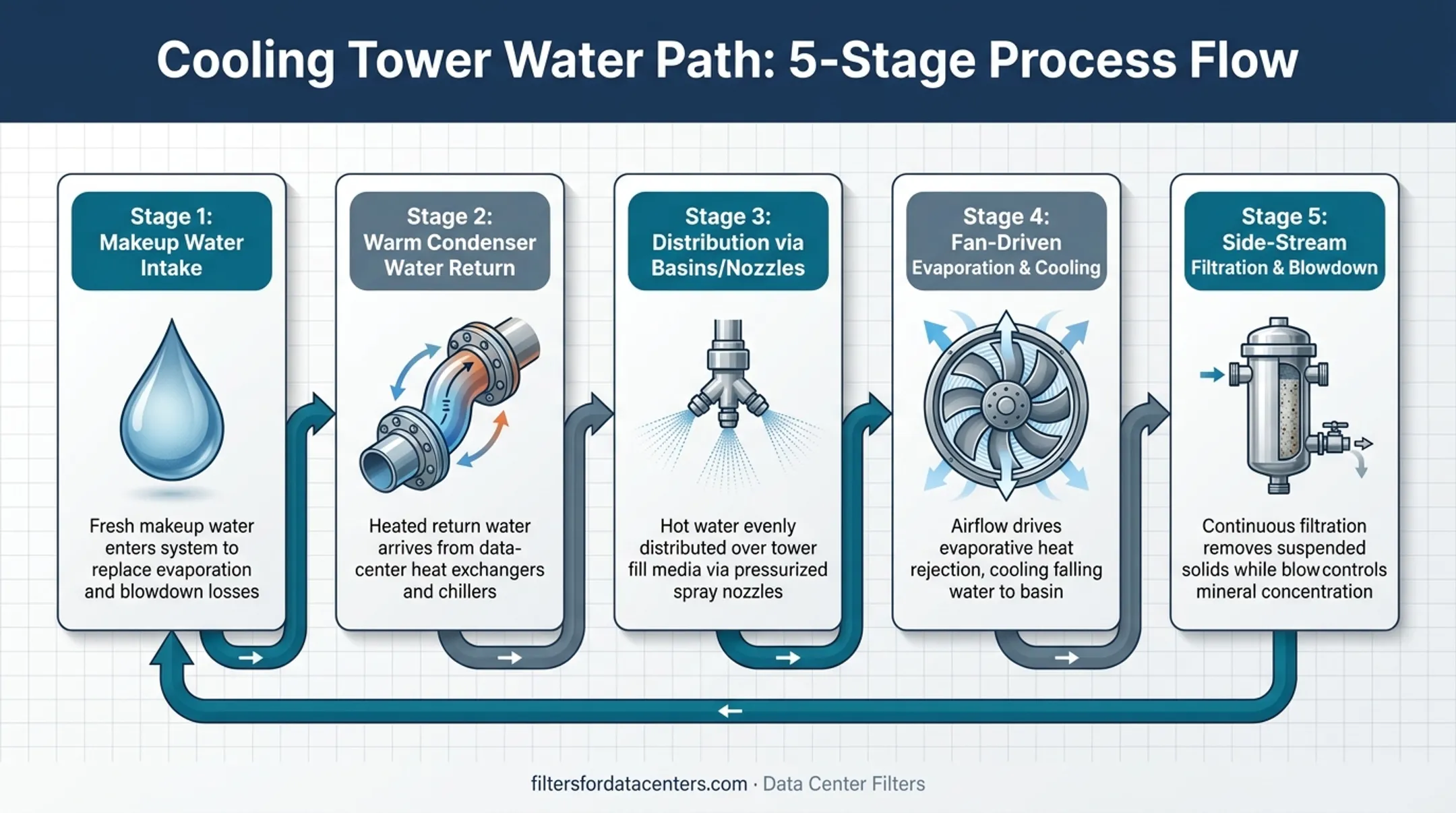

How the Cooling Tower Water Path Works
Following the water from source to return makes the whole system easier to reason about.
- Makeup water replaces losses from evaporation, drift, and blowdown. Sources include municipal water, well water, reclaimed water, or treated process water. Source quality determines how much pretreatment is needed before water enters the loop.
- Warm condenser water enters the tower through return piping, pumps, headers, troughs, or distribution branches, depending on tower design.
- Gravity basins or pressurized spray nozzles spread that water across the fill. Uniform wetting maximizes air-to-water contact; dry zones waste capacity.
- Fans move air through the tower while evaporation removes heat. Cooled water collects in the cold-water basin and returns through supply piping to the chiller or heat exchanger.
- A portion of the flow passes through side-stream filtration, while blowdown removes concentrated dissolved solids and makeup water restores system volume.
The Department of Energy's FEMP cooling tower guidance frames this balance simply: makeup water equals evaporation plus blowdown plus drift. Push cycles of concentration from three to six, and DOE estimates makeup water drops by roughly 20% while blowdown drops by about 50% (within the water chemistry limits your treatment program allows).
Gravity-Flow vs. Pressurized Spray
| Factor | Gravity-Flow | Pressurized Spray |
|---|---|---|
| Typical tower type | Crossflow | Counterflow |
| Complexity | Simpler, elevated basin with orifices | Pumps, headers, laterals, nozzles |
| Inspection | Open, easier to view and clean | Enclosed, needs more deliberate access |
| Vulnerability | More exposed to debris, biological growth | Clogging harder to spot early |
Neither design is universally better. The right choice depends on tower type, water quality, and how the facility prefers to maintain it.
Key Piping Components
Beyond supply and return lines, several components keep the loop serviceable:
- Isolation valves take a section offline for repair without draining the whole loop
- Balancing valves keep flow even across multiple headers
- Strainers (such as Eaton Model 72 simplex or 53BTX duplex units) sit ahead of pumps and nozzles to catch debris before it damages equipment downstream
- Flexible connections, expansion provisions, drains, vents, and instrumentation handle movement, service access, and monitoring
Key Design and Maintenance Factors
Good distribution design starts with water quality, not equipment catalogs.
Matching Filtration to Contamination Type
Different contaminants need different controls:
- Suspended solids and sediment — caught by strainers, bag filters, or cartridge filters
- Biological material — managed through treatment chemistry and monitoring, not filtration alone
- Scale-forming minerals — controlled through blowdown and cycles of concentration
- Corrosion products and debris — captured by side-stream filtration before they recirculate
Filter type, capacity, allowable pressure drop, and media selection should be based on water analysis, manufacturer requirements, and flow rate , not a generic spec sheet. DOE's side-stream filtration evaluation recommends sizing side-stream filters for 3% to 10% of total system flow, noting that going below 3% has been shown to let fouling continue unchecked.
Strainer baskets typically run a 15–20 psi cleaning threshold and shouldn't exceed roughly 50 psi differential before service is overdue. High-flow cartridges generally call for a change-out around 30 psi differential . Confirm those thresholds against your specific equipment documentation.
Piping and Hydraulic Design
Pipe sizing, velocity, pump head, and header balancing all affect whether nozzles get the pressure they need. Elevation changes, water hammer, vibration, and corrosion resistance matter just as much as flow rate on paper. Stainless steel hangers with vibration-reducing inserts, for example, address the physical wear that comes from constant flow , a detail that's easy to overlook until a joint fails.
Building In Real Redundancy
Hydraulics get water to the nozzles; redundancy keeps that path available when something fails. N+1 and similar models only mean something when matched to a facility's documented design basis, not applied as a blanket assumption.
Practical redundancy includes:
- Independent isolation paths and bypasses that let maintenance happen without a full shutdown
- Standby pumps and spare filtration capacity sized for actual peak demand
- Validation through commissioning, functional testing, and failure-mode analysis, not just counting spare units

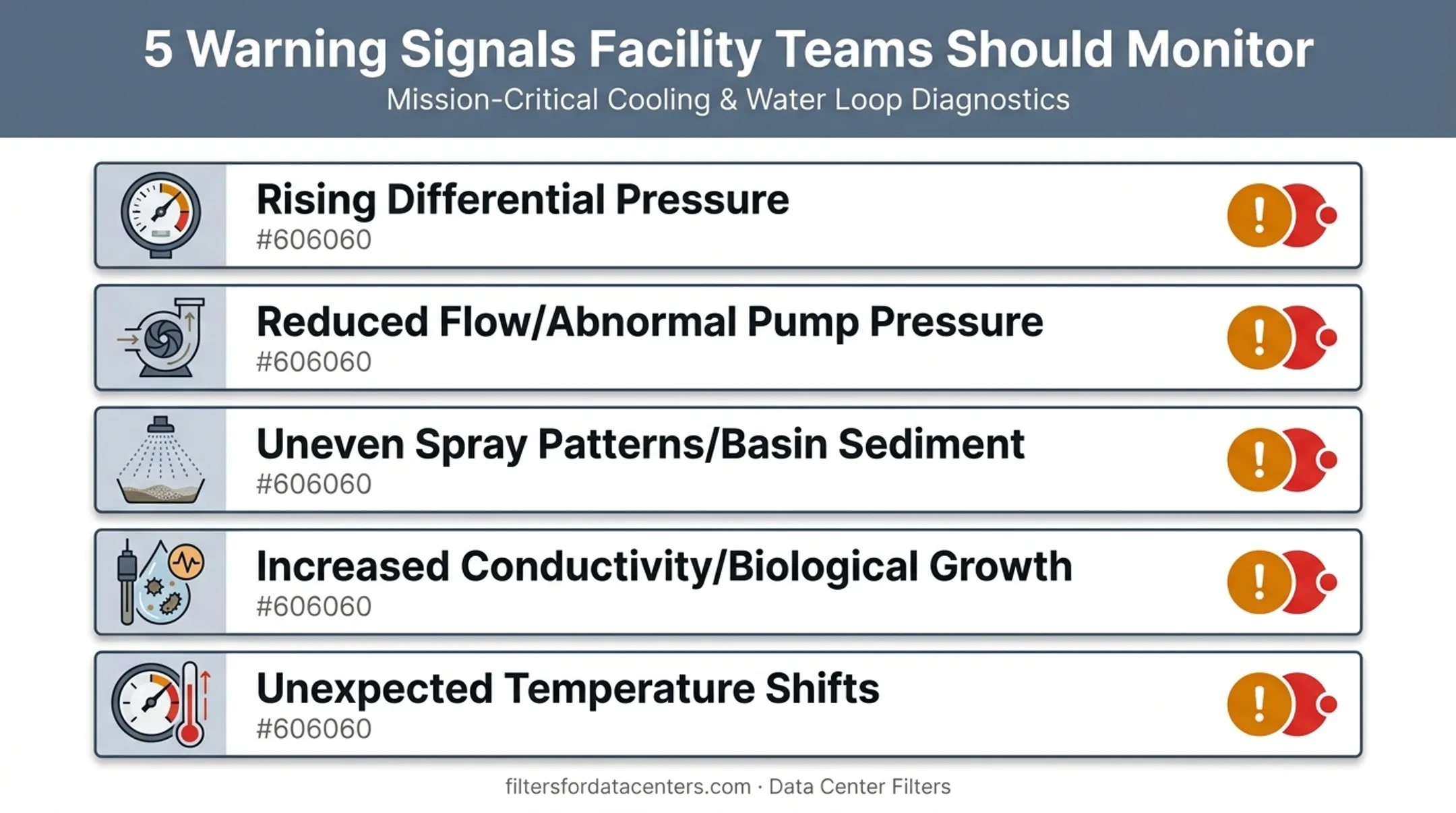

Signals That Warrant a Closer Look
Watch for:
- Rising differential pressure across filters or strainers
- Reduced flow or abnormal pump pressure
- Uneven spray patterns or visible basin sediment
- Increased conductivity, suspended solids, or biological growth
- Unexpected shifts in tower approach or return temperature
Common Misconceptions
A bigger pump doesn't fix poor nozzle placement, clogged components, or unbalanced headers . It just pushes harder against the same restriction. Filtration also has limits: it removes suspended solids, not dissolved minerals, and it doesn't replace chemical treatment, blowdown control, or microbial management.
A cooling tower isn't automatically the right answer. Air-cooled chillers, closed-loop systems, or hybrid arrangements can better suit facilities dealing with water scarcity, tight maintenance budgets, or specific climate conditions.
Data Center Filters' custom external air-intake filtration and AFF Field Services address airborne cottonwood, dust, insects, leaves, and debris reaching outdoor cooling equipment. That protects the air side of the system. It does not replace cooling tower water filtration or chemical treatment. The two operate independently, and both need attention.
Conclusion
Reliable cooling tower performance depends on how the full water path works as a system: source, filtration, pumps, piping, distribution, fill, airflow, basin, and treatment controls. No single component carries the load alone.
For data centers, lock in these priorities:
- Uniform distribution across the fill
- Verified water quality and maintainable filtration
- Active monitoring, proper isolation, and redundancy tested under load
There's no default arrangement that fits every facility. Match the design to water analysis, tower layout, heat load, operating conditions, manufacturer requirements, and your resilience strategy. The biggest pump or the most filters won't fix a poor fit.
Frequently Asked Questions
What are the common types of cooling tower water distribution systems?
Gravity-flow systems use elevated basins or troughs with metering orifices and are common in crossflow towers. Pressurized spray systems use pumps, headers, laterals, and nozzles and are typical in counterflow towers.
Where does a cooling tower water distribution system get its water?
It recirculates condenser water and adds makeup from municipal supply, wells, reclaimed water, or treated process water, depending on facility design and local water quality.
What are the main components of a cooling tower water distribution system?
Core hardware includes pumps, supply and return piping, headers, valves, basins or troughs, nozzles, and fill. Strainers or filters, controls, instrumentation, and makeup and blowdown connections complete the loop.
What is the purpose of a cooling tower water distribution system?
It spreads warm water evenly across the fill so the tower can reject heat through evaporation, then collects the cooled water and returns it to the plant while limiting fouling and flow restrictions.
Can filtration alone prevent scale and corrosion in a cooling tower?
No. Filtration removes suspended solids and debris, but scale and corrosion require chemical treatment, blowdown control, and regular water testing alongside filtration.
