Filter Sock Housing for Data Center Water Filtration

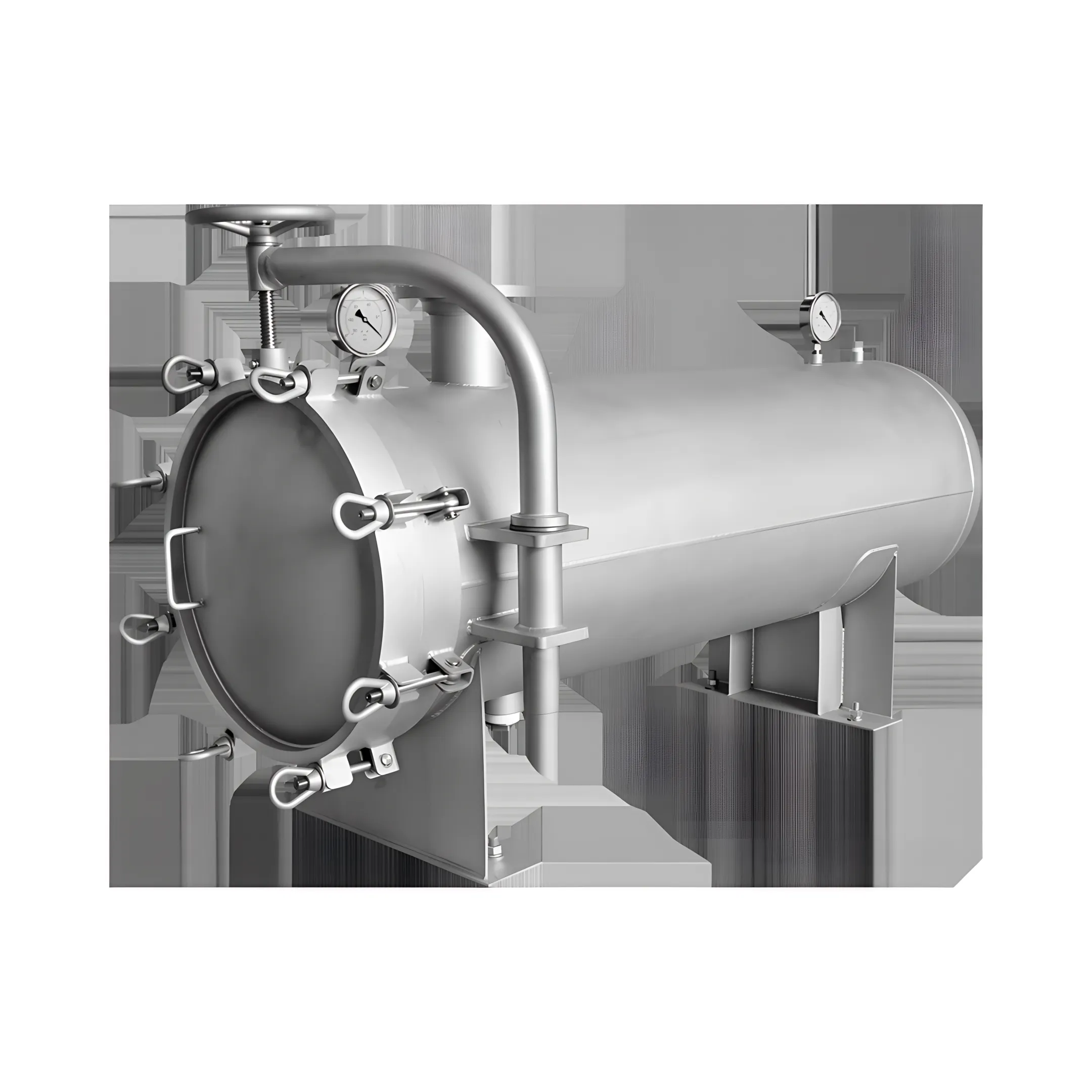

A filter housing serves as the pressure vessel that contains and secures filter bags within a pressurized flow line. Constructed from 304L or 316L stainless steel, it routes process liquid through the filtration media while preventing bypass. The housing supports system pressure up to 150 psi, maintains secure sealing via specialized gaskets, and allows convenient access for regular bag replacement.

Filters For Data Centers manufactures dedicated single and multi-bag filter housings specifically engineered for critical cooling applications. Our housing solutions feature heavy-duty stainless steel vessels, positive sealing arrangements to eliminate bypass, and versatile connection options. We provide technical support for connection selection, materials, and configurations that align with mission-critical uptime demands across enterprise facilities.

Bag filter systems operate by directing contaminated liquid into the housing interior where it passes from the inside of a filter sock outward through perforated support baskets. The porous fabric retains particulate matter inside the bag while clean liquid exits downstream. Contaminant loading is monitored by pressure differential across the housing, signaling when the cover should be opened for clean bag replacement.

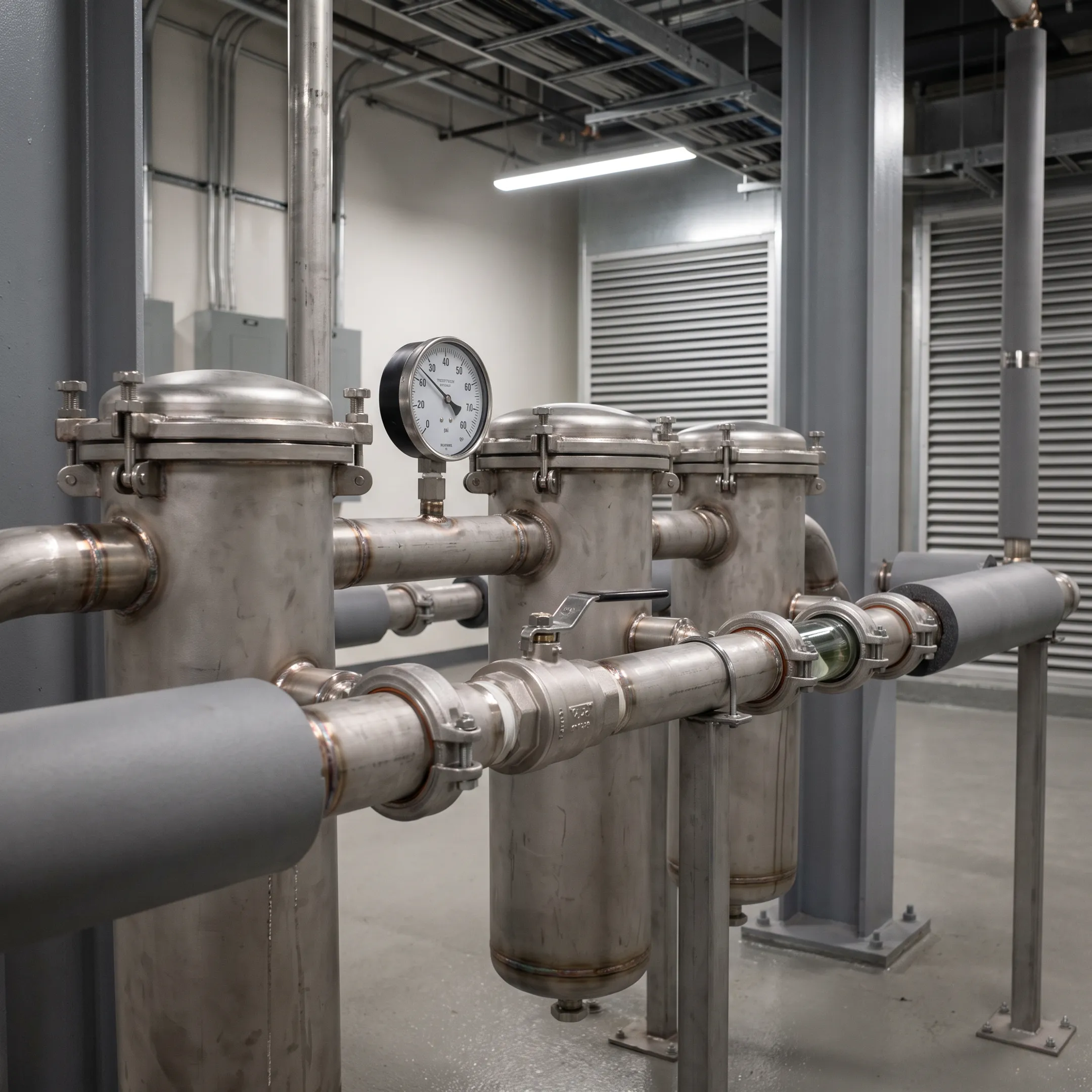

Our housings are constructed from 304L and 316/316L stainless steel, offering superior corrosion resistance for condenser water, chilled loops, and industrial fluid circuits. Internally, each vessel includes perforated stainless steel baskets that reinforce the filter bags under working pressure. Closure selections include clamp, swing-bolt, and davit-assisted assemblies paired with Buna-N, EPR/EPDM, silicone, or Viton/FKM sealing gaskets.

Single-bag housings offer a compact footprint suitable for flow rates up to 176 GPM, utilizing sizes #1 through #4 bags for cost-effective particulate filtration. Multi-bag housings accommodate 2 to 24 standard double-length bags, handling high-volume process flows up to 4,200 GPM. Multi-bag designs distribute contaminant loading across multiple elements, reducing overall system pressure drops and extending maintenance intervals.

The housings accommodate a broad selection of filtration media, including polypropylene, polyester, nylon, felt, and mesh bags. The choice of media depends on fluid compatibility, operating temperature ranges up to 300°F, and targeted particle sizes. Compatible bag configurations ensure a positive seal against the housing seat, preventing liquid bypass and ensuring optimal cleanliness throughout critical closed-loop cooling circuits.
