0.5 Micron Water Filters for Data Center Precision Cooling

The ideal micron rating depends on the system requirements and particulate load. For sensitive cooling loops and closed-loop data center precision chillers, fine ratings such as 0.5 microns prevent scale and sediment buildup in narrow heat exchangers. Coarser ratings up to 100 microns are suited for raw intake water or preliminary screening before high-efficiency polished filtration stages.

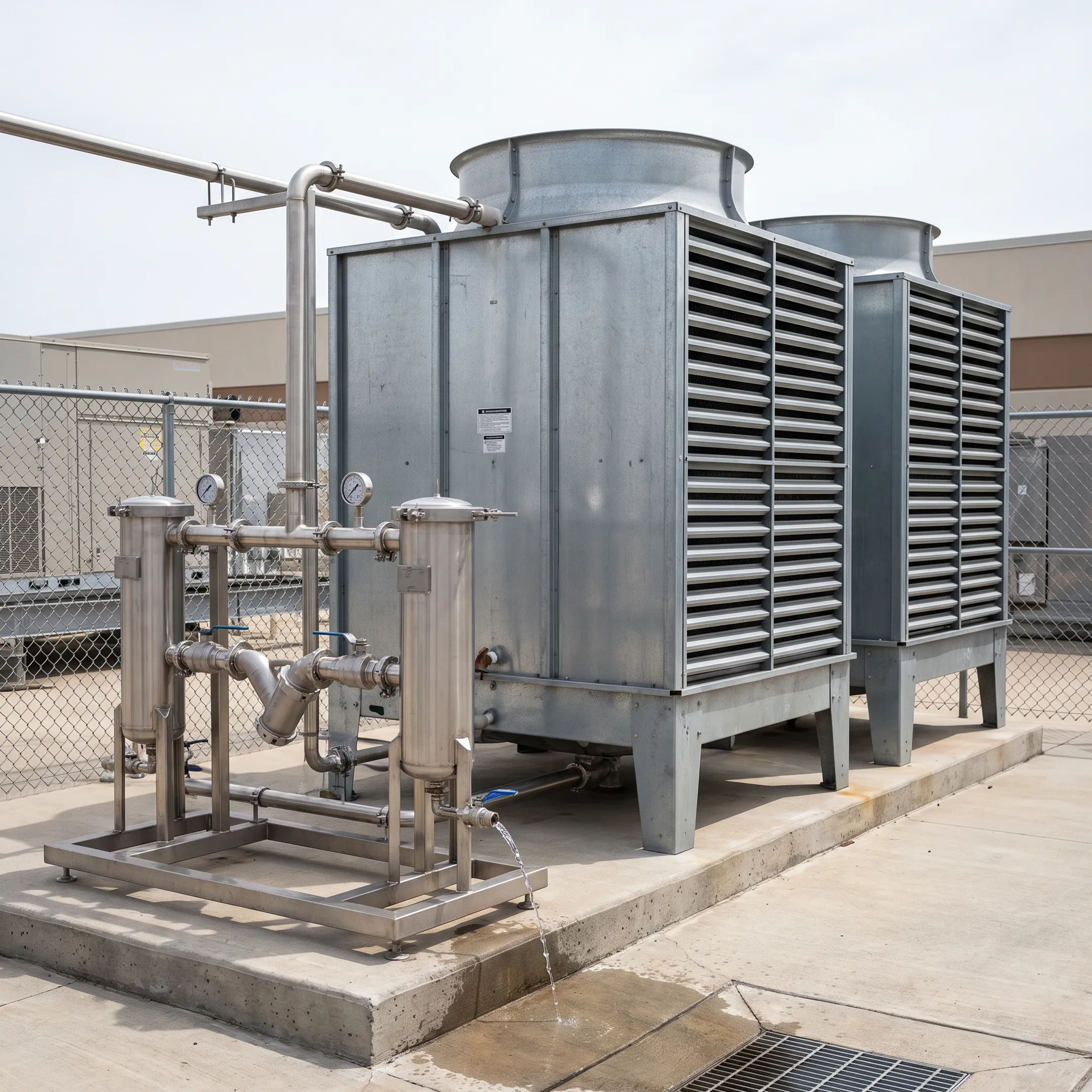

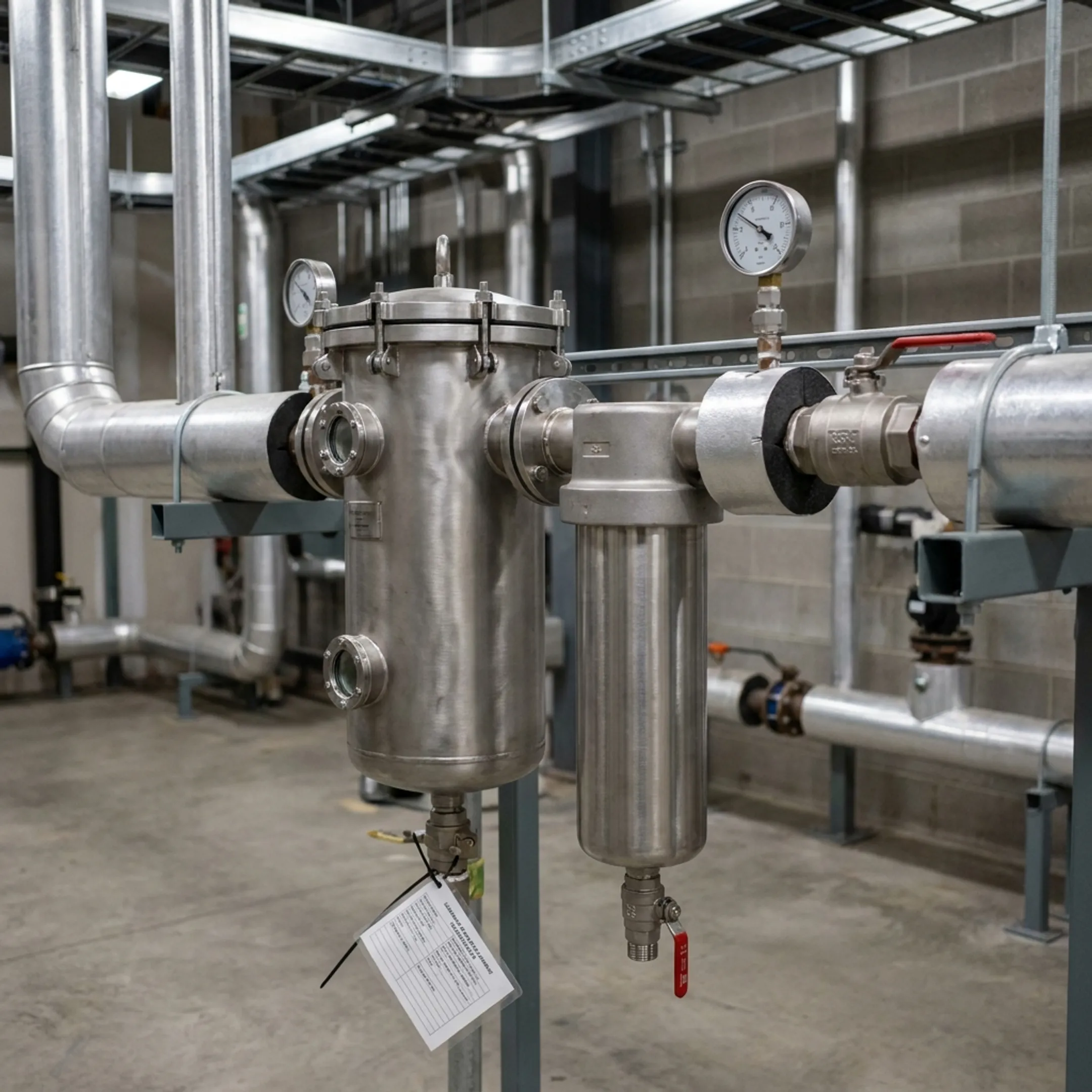

In data center chilled loops and cooling towers, microscopic suspended solids can foul plate heat exchangers and reduce thermal transfer efficiency. High flow 0.5 micron polypropylene cartridges capture fine silt, scale, and particulate down to sub-micron thresholds. This inside-to-outside flow design retains trapped contaminants within the core, protecting sensitive cooling components and maintaining uninterrupted heat dissipation.

These polypropylene filter cartridges support a maximum operating temperature of 176°F (80°C). They handle a maximum operating differential pressure of 60 psi (4 bar) at 70°F (21°C), and 35 psi (2.4 bar) at elevated temperatures of 176°F (80°C). Adhering to these engineering parameters ensures media stability, prevents cartridge collapse, and maintains consistent fluid flow through mission-critical loops.

The recommended change-out differential pressure is 30 psi differential. Monitoring differential pressure across the filter housing allows facility operators to replace cartridges before restricted flow compromises chilled water flow rates to precision cooling units. Regular scheduled change-outs at this differential prevent pressure spikes, protect pump systems, and ensure consistent heat rejection throughout the facility.

The filter media, cage, core, and end caps are manufactured from pure polypropylene, offering wide chemical compatibility across process fluids. To match specific chemical treatments in chilled and cooling tower water, cartridges are available with multiple elastomer seal options, including EPDM, E-FKM, standard FKM, and Silicone, ensuring leak-free seating in single open-ended housing configurations.

High flow cartridges are configured with an outside diameter of 152 mm (6 inches) in a single open-ended design. They are available in standard lengths of 20, 40, 60, and 80 inches. These oversized pleated dimensions handle significantly higher flow rates than standard 10-inch elements, reducing housing footprints and overall cartridge consumption in large data center installations.
