Temporary Cone Strainers for Data Center Piping Commissioning

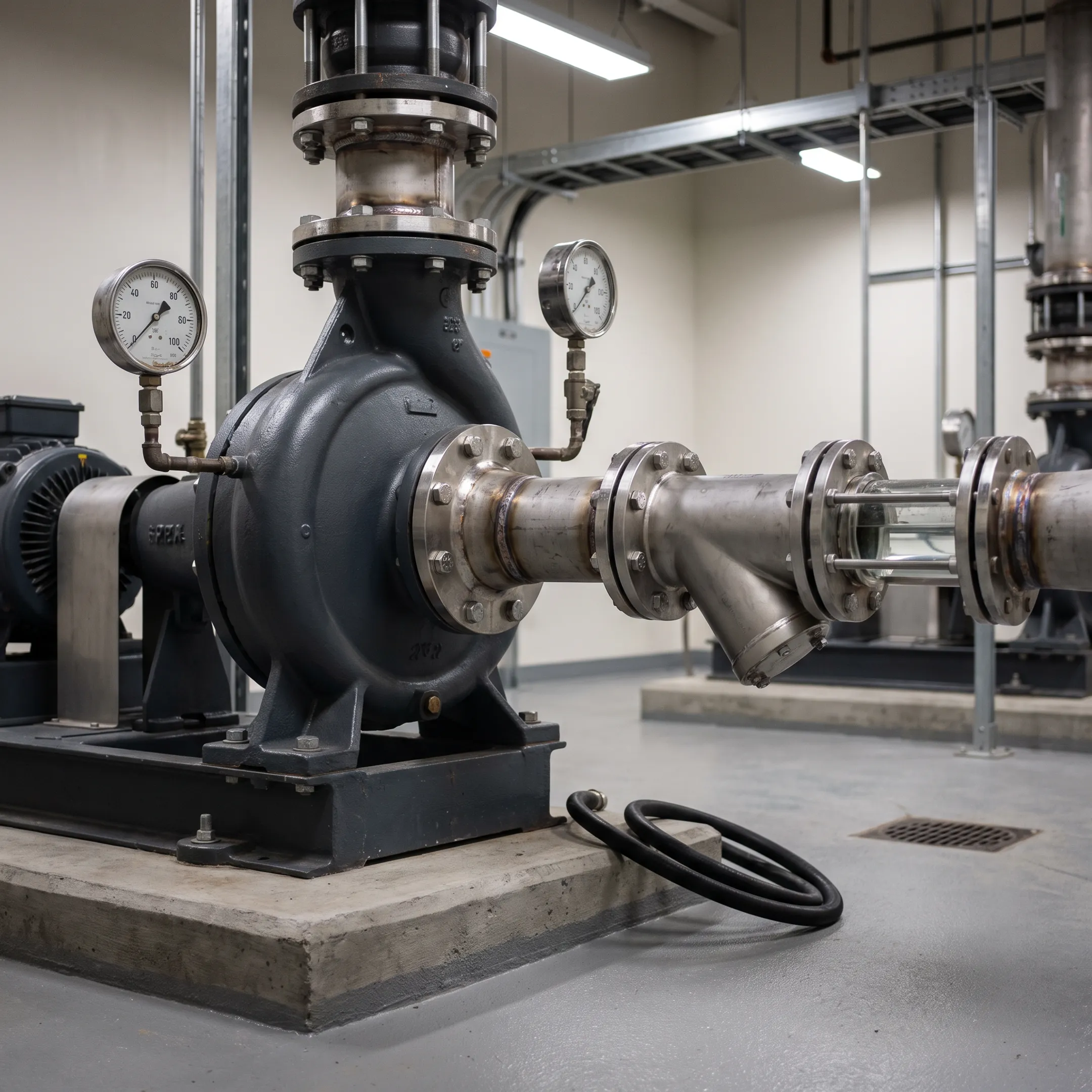

A pipeline strainer is a closed filtration device that mechanically separates solid contaminants from flowing liquid, gas, or steam lines. By placing a perforated screen or woven mesh element directly in the fluid stream, the strainer captures construction debris, weld slag, and particulate. This filtration process protects sensitive downstream mechanical equipment, including pumps, control valves, chillers, and heat exchangers, from damage.

These temporary cone strainers are manufactured from durable 316 stainless steel. This material construction provides excellent corrosion resistance and structural integrity across diverse fluid conditions. Strainers feature a factory polish ring finish on standard configurations and can operate at maximum process temperatures up to 1,000°F (538°C) and operating pressures reaching up to 1,500 PSIG, depending on selected configuration.

Standard stocked units accommodate nominal pipe sizes from 2 inches up to 24 inches. They are engineered to install between standard ANSI 150# or 300# flat-face pipe flanges without necessitating major piping modifications. Custom dimensional and quality requirements can also be accommodated upon request to ensure compatibility with unique piping schedules and project engineering designs across mission-critical facilities.

Screen configurations feature perforated metal with opening diameters ranging from 1/32 inch to 3/4 inch, delivering open area ratios between 20% and 60%. For finer filtration needs, optional wire mesh liners are available in 20, 40, 60, 80, or 100 mesh ratings, along with fine micron linings to trap small construction particulates before they reach downstream components.

The recommended change-out differential pressure is 15 to 20 PSI (1.0 to 1.4 bar) ΔP. Operating across this threshold indicates particulate accumulation on the cone screen. Depending on configuration, the strainers withstand a maximum operating differential pressure up to 50 psi (3.4 bar). Monitoring differential pressure prevents excessive flow restriction and structural overload across the conical element.

Yes, material certifications and inspection documentation are available upon request for any application or project. Each unit is manufactured with close attention to material quality, dimensional accuracy, and filtration specifications. Facilities teams can obtain verified documentation to confirm compliance with data center piping commissioning protocols and stringent mechanical system quality standards.
