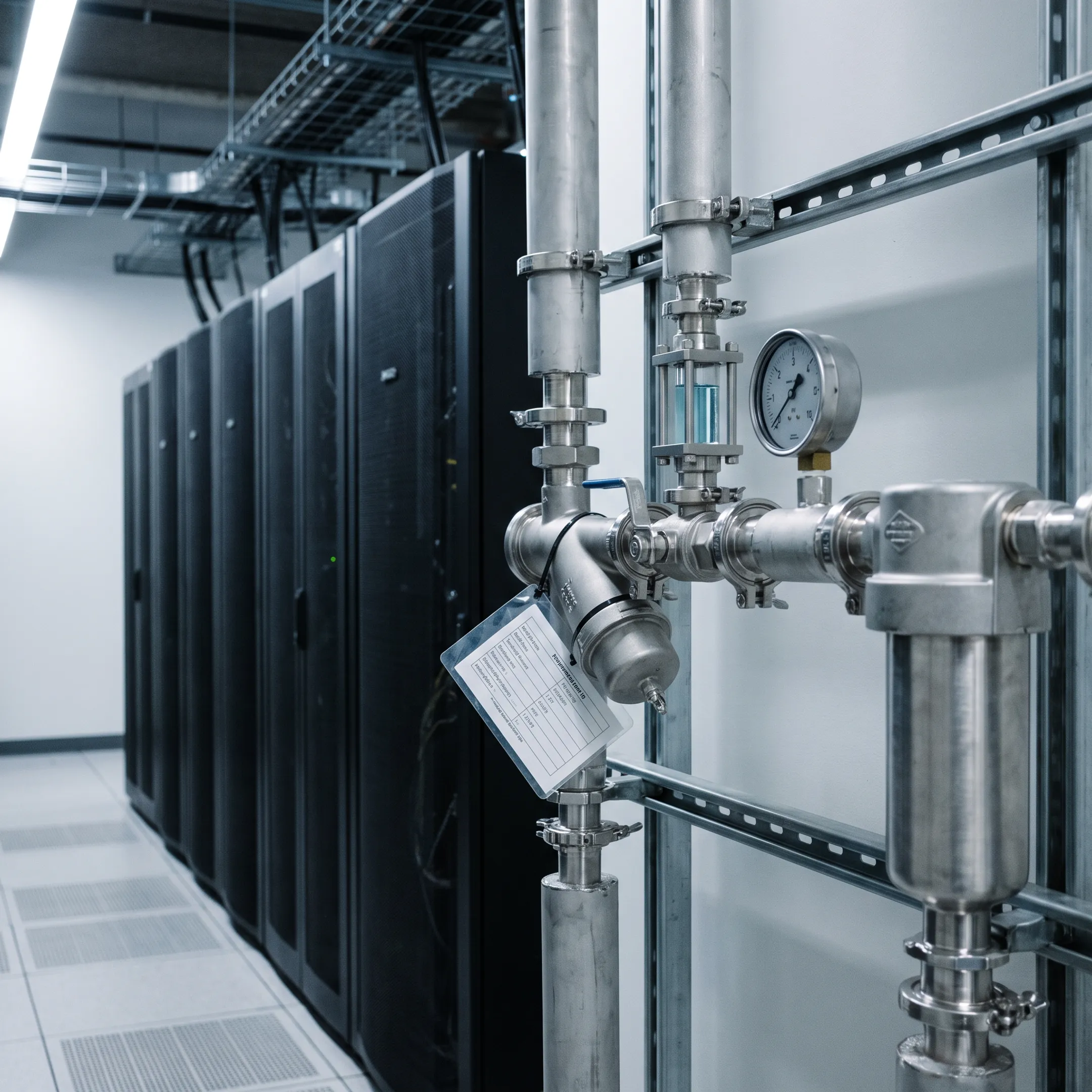

Commercial Water Filter Systems for Data Center Cooling

Pricing for commercial water filtration systems is available on request. Costs vary based on vessel housing material such as 304 or 316 stainless steel, flow rate capacity, basket or cartridge quantity, design pressure ratings, connection sizes, and specific engineering code options like ASME Section VIII compliance.

For drinking water applications in commercial facilities, systems should feature components certified to NSF/ANSI/CAN 61 and NSF/ANSI/CAN 372 drinking water standards, as well as FDA 21 CFR compliance. Select felt or mesh filter bags meet these requirements to support compliant, potable water filtration.

Industrial water filtration costs depend on technical specifications, including pipe size from 3/8-inch up to 24 inches, operating pressure ratings up to 600 psig, operating temperatures, and chosen media configurations. Pricing is provided on request to match the specific operational requirements of your facility.

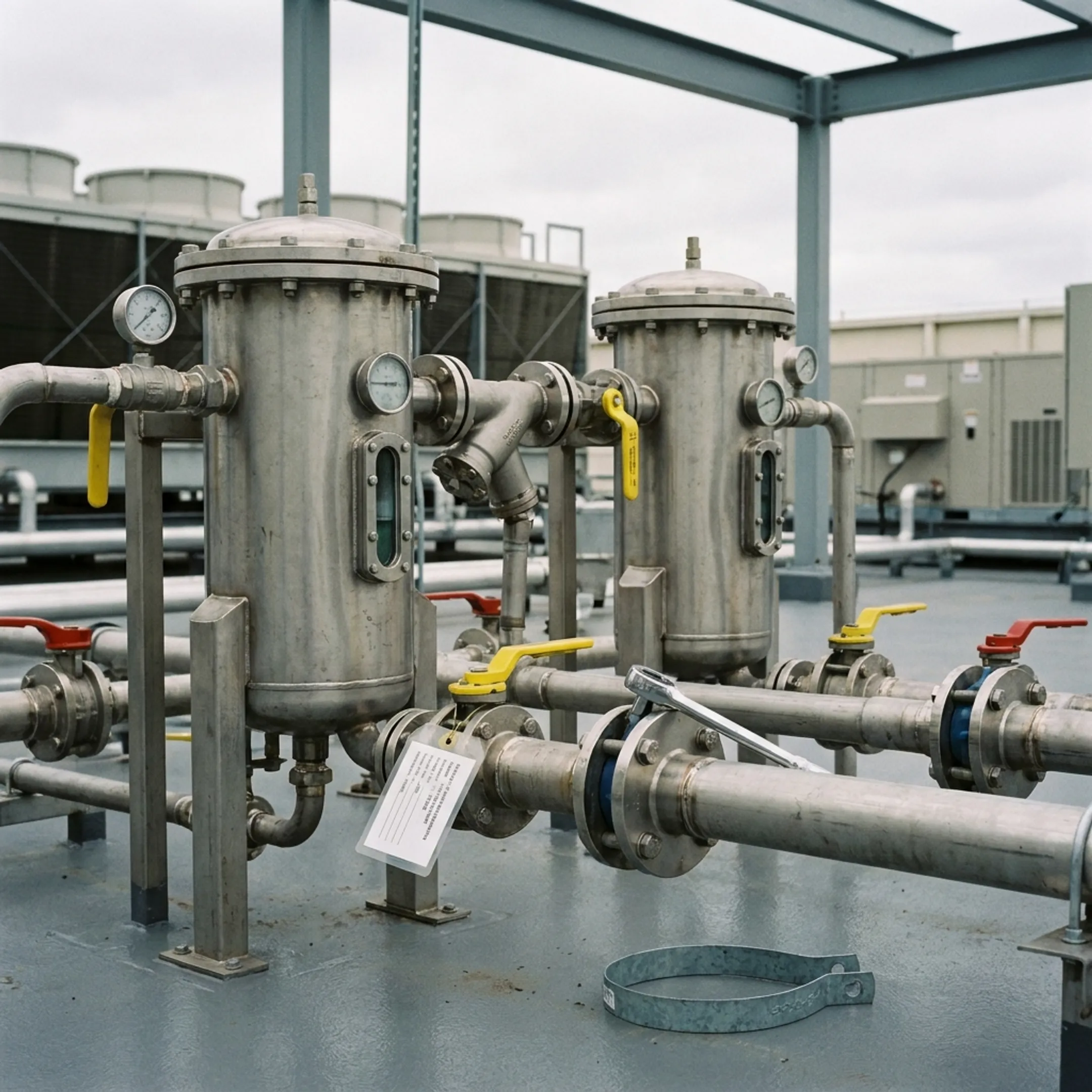

Simplex strainers contain a single basket and require process line shutdown or bypass when servicing screens. Duplex strainers incorporate two separate chambers with an integrated flow diverter valve, allowing technicians to isolate and clean one basket while cooling water continues flowing through the other chamber without interruption.

Temporary cone strainers are designed for installation between pipe flanges during pre-commissioning, new piping startup, hydrostatic testing, and system flushing. They capture construction debris and pipe scale before fluids reach sensitive equipment, and are easily removed once initial system cleanup is completed.

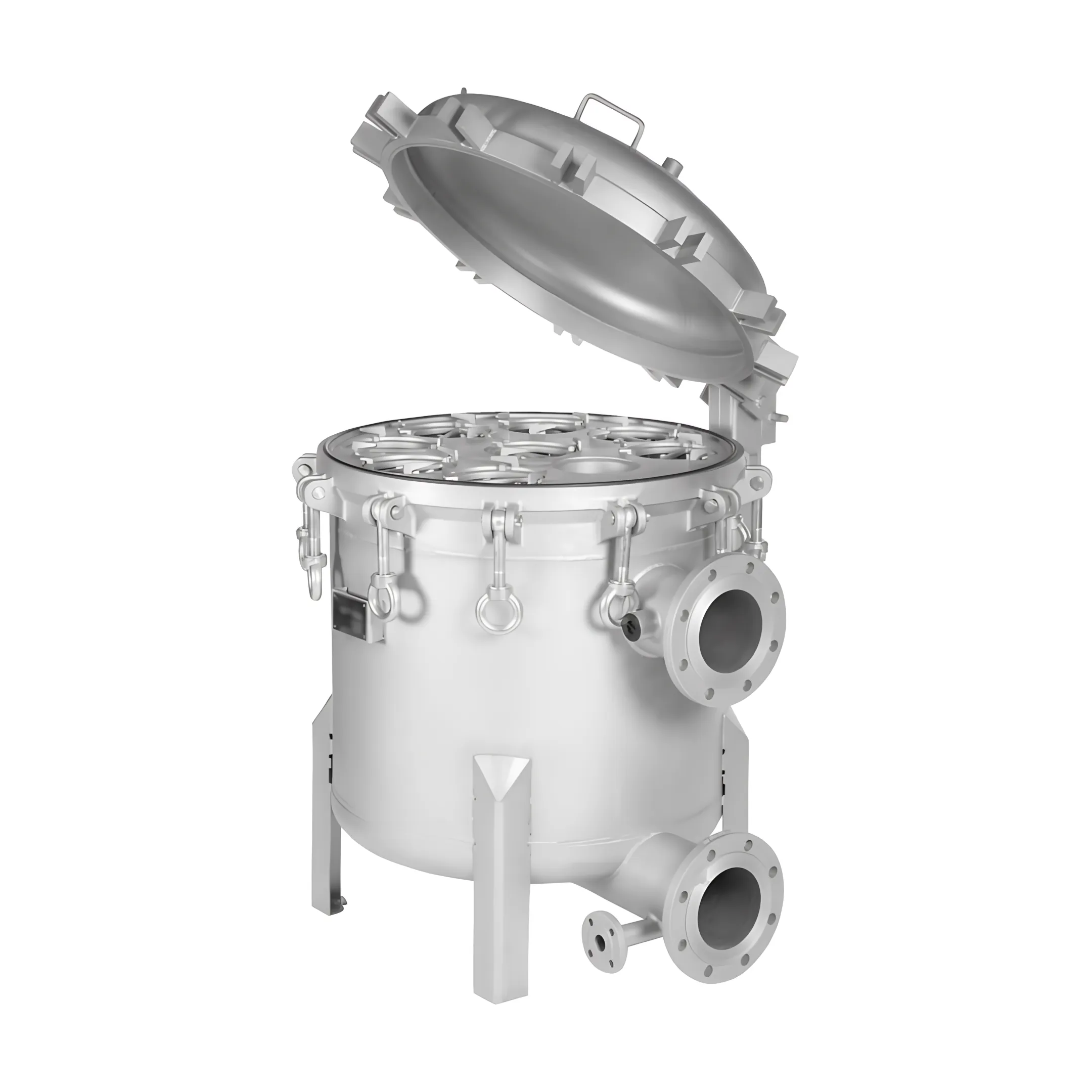

Bag filter housings accommodate various filtration media, including polypropylene, polyester, nylon, felt, and mesh. Selection depends on chemical compatibility, operating temperature, and target particle retention, with micron ratings available from 1 to 1500 microns depending on the specific filter bag configuration selected.
