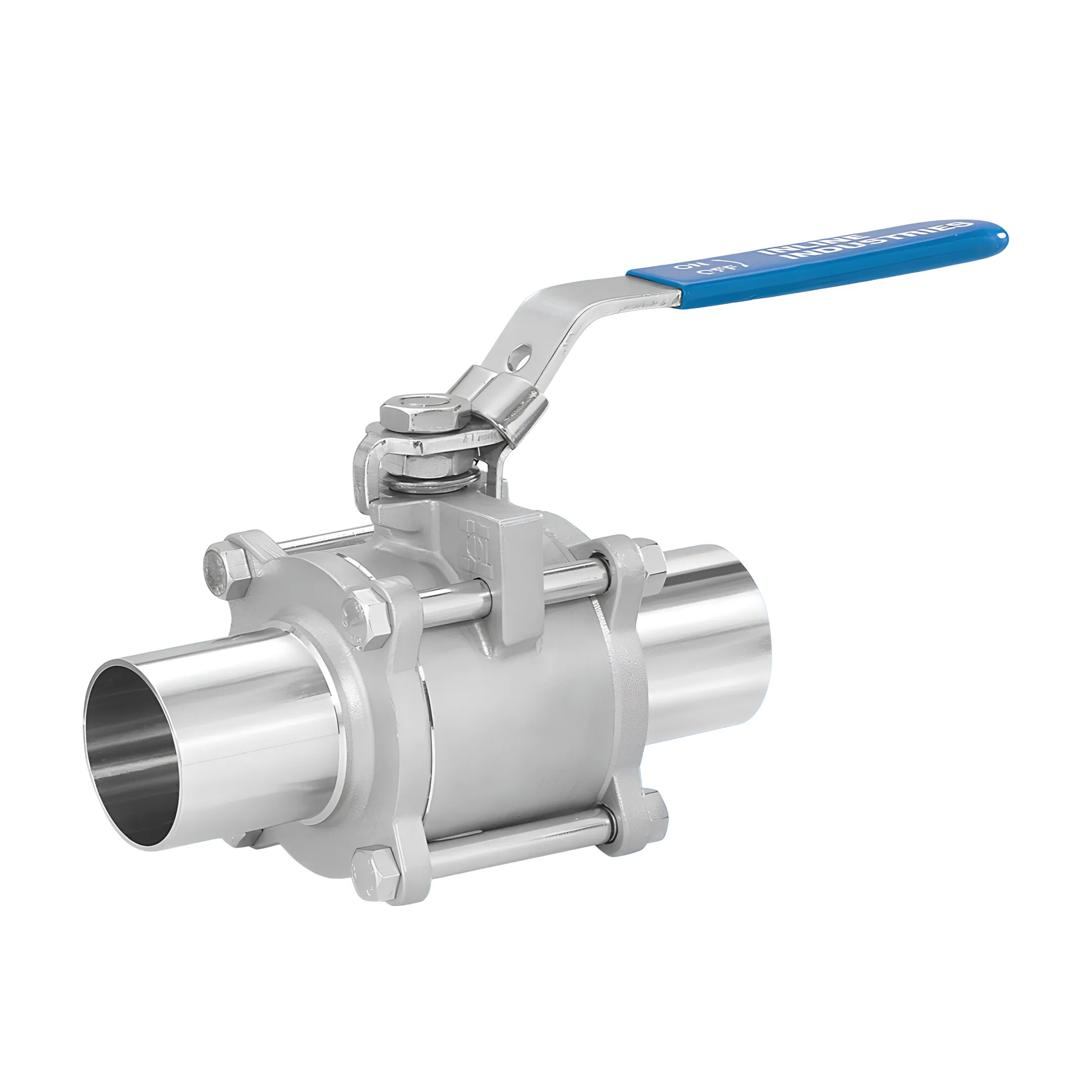

3/4 Stainless Steel Full Port Ball Valves

Pricing for these ball valves is available on request. Total unit costs depend on your specific configuration requirements, including body material selection of 304 or 316/316L stainless steel, end connections such as weld end, tri-clamp, or NPT, seal materials like PTFE or Viton, and actuation choices. Contact our commercial sales specialists to receive a clear and itemized quote for your facility.

These valves feature rugged bodies constructed from either 304 or 316/316L stainless steel, while internal ball and stem components are manufactured from high-grade 316L stainless steel. Seal and O-ring materials are available in Buna-N, EPDM, PTFE, or Viton configurations. These materials provide exceptional corrosion resistance, mechanical strength, and chemical durability across critical fluid handling, cooling loops, and process water systems.

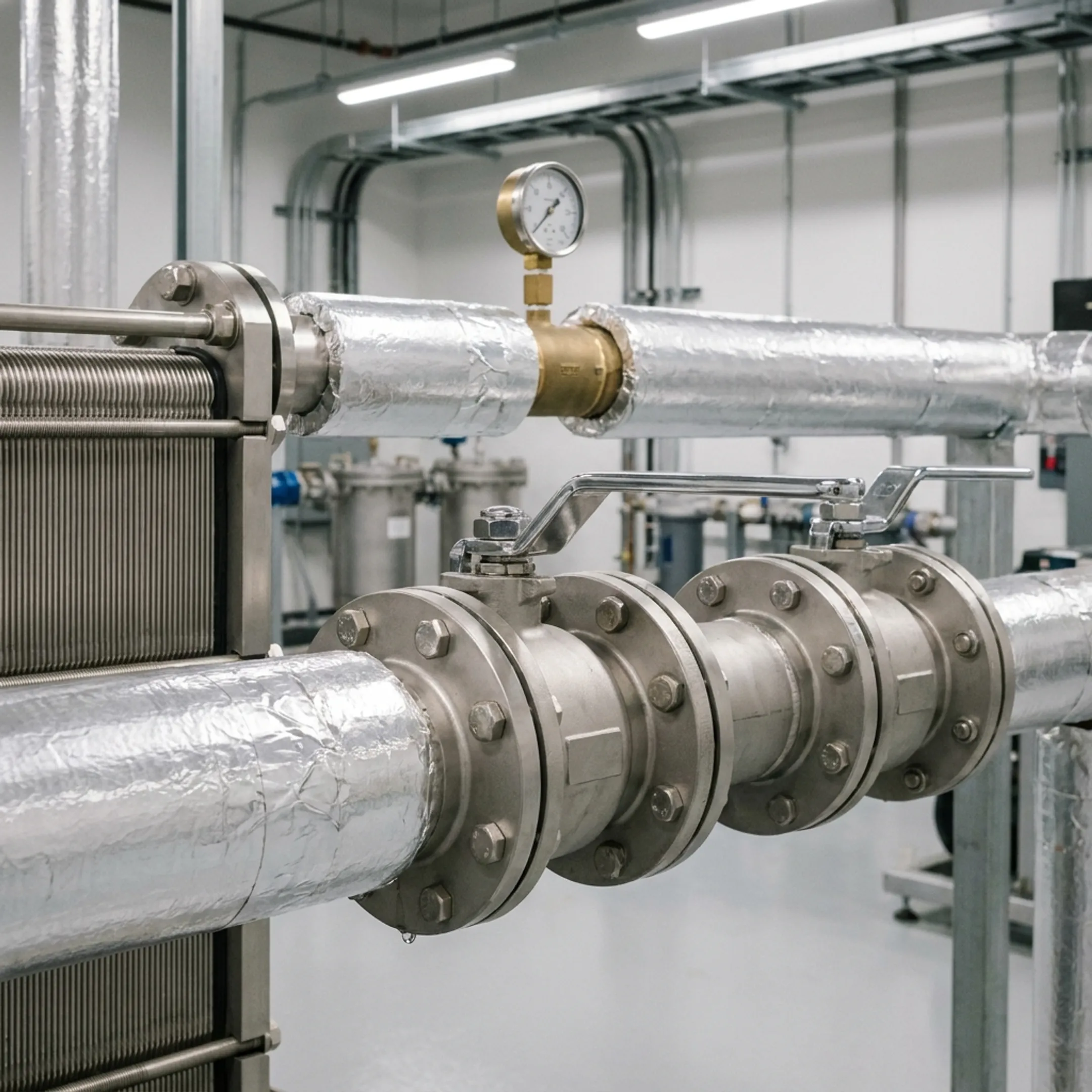

Our ball valves can be specified with several common industrial end connections to match your piping setup. Available configurations include weld end, tri-clamp sanitary connections, and standard NPT threaded connections. These options ensure clean, leak-resistant alignment and compact installation whether you are retrofitting existing pipe runs or integrating new valves into cooling skids, heat exchangers, or dedicated recirculating water systems.

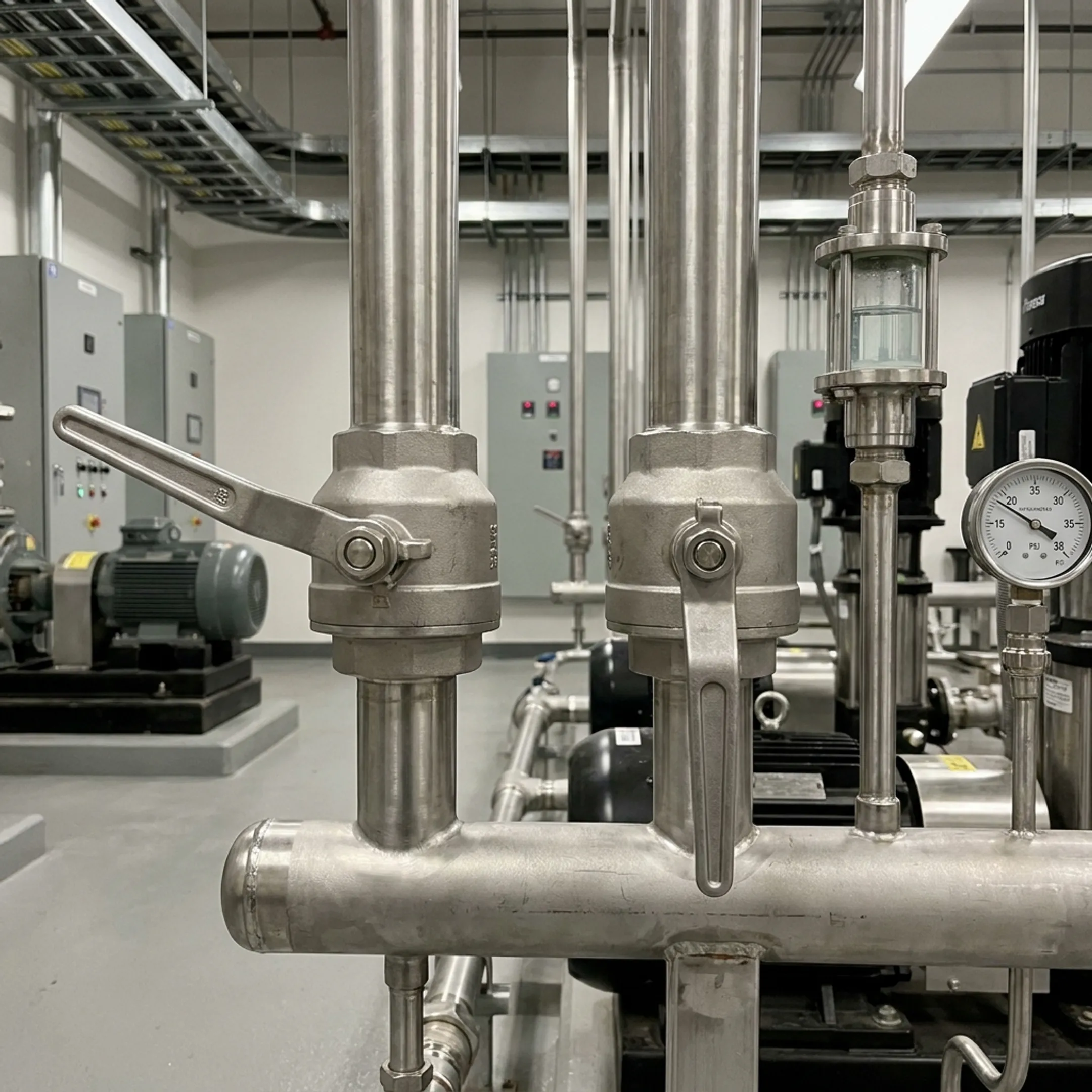

These full port ball valves support versatile operation configurations to suit manual or automated process control. Options include standard manual handles for quick quarter-turn shutoff, pneumatically actuated systems for rapid automated cycling, and electrically actuated packages for remote monitoring and integration into building management networks. Each method delivers dependable, precision quarter-turn control to protect pumps, skids, and downstream equipment.

These stainless steel ball valves handle operating temperatures up to 350°F (177°C), depending on configuration and selected elastomer or seat compounds. Pairing 316L stainless steel with appropriate seal materials like PTFE or Viton allows dependable thermal resilience. Always verify your process fluid temperatures against the specific seal composition to ensure long-term sealing performance across cooling tower, utility, or chilled water systems.

To meet varied sanitary and industrial cleanliness requirements, these valves offer multiple internal surface finishes. Options include 30RA ID, 20RA MP ID (mechanically polished), and 15RA EP ID (electropolished) finishes. These refined internal surfaces help prevent product buildup, support easy cleaning and routine maintenance, and comply with strict ASME, ASTM, and sanitary inspection standards across critical process water installations.
