Industrial Inline Water Filtration for Data Center Cooling

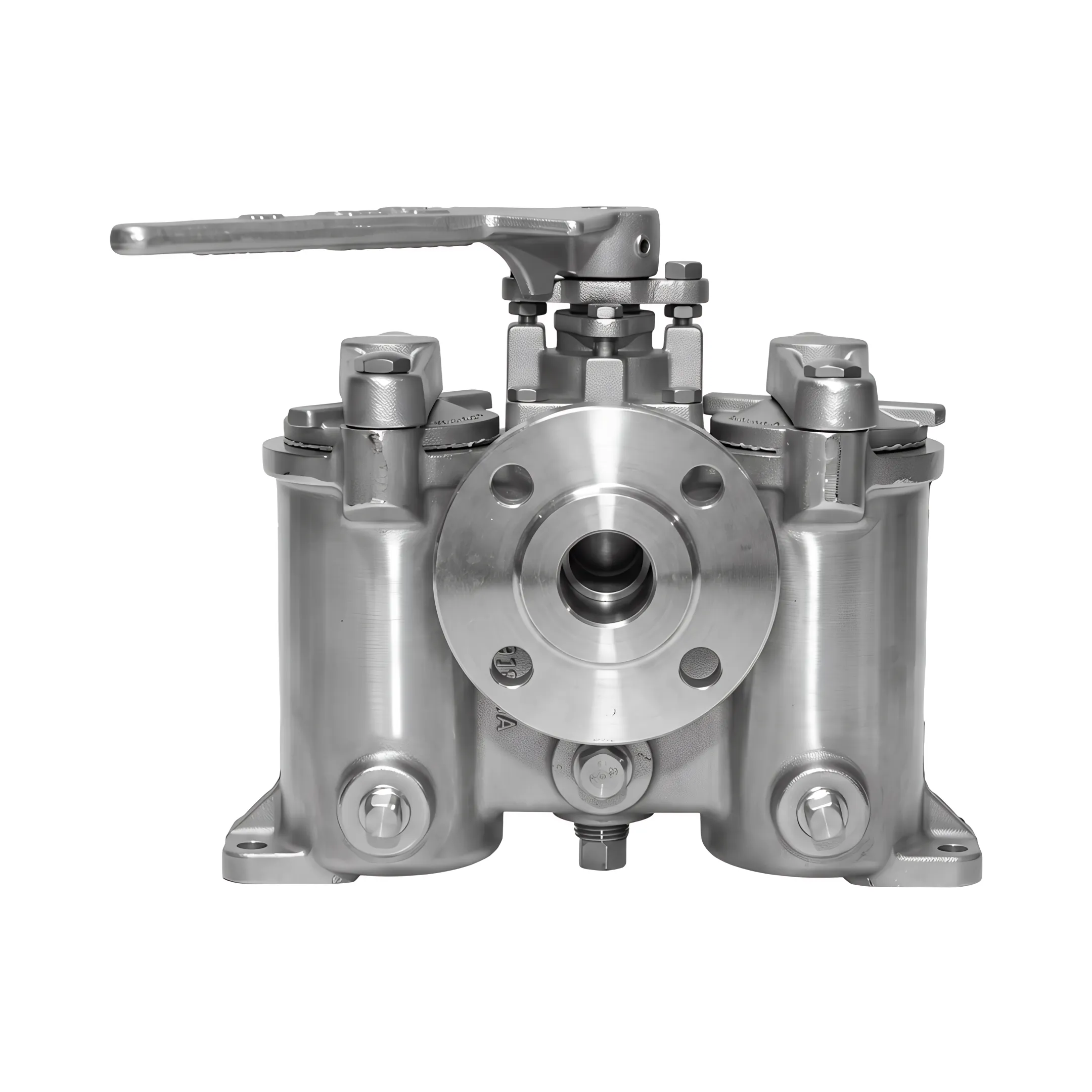

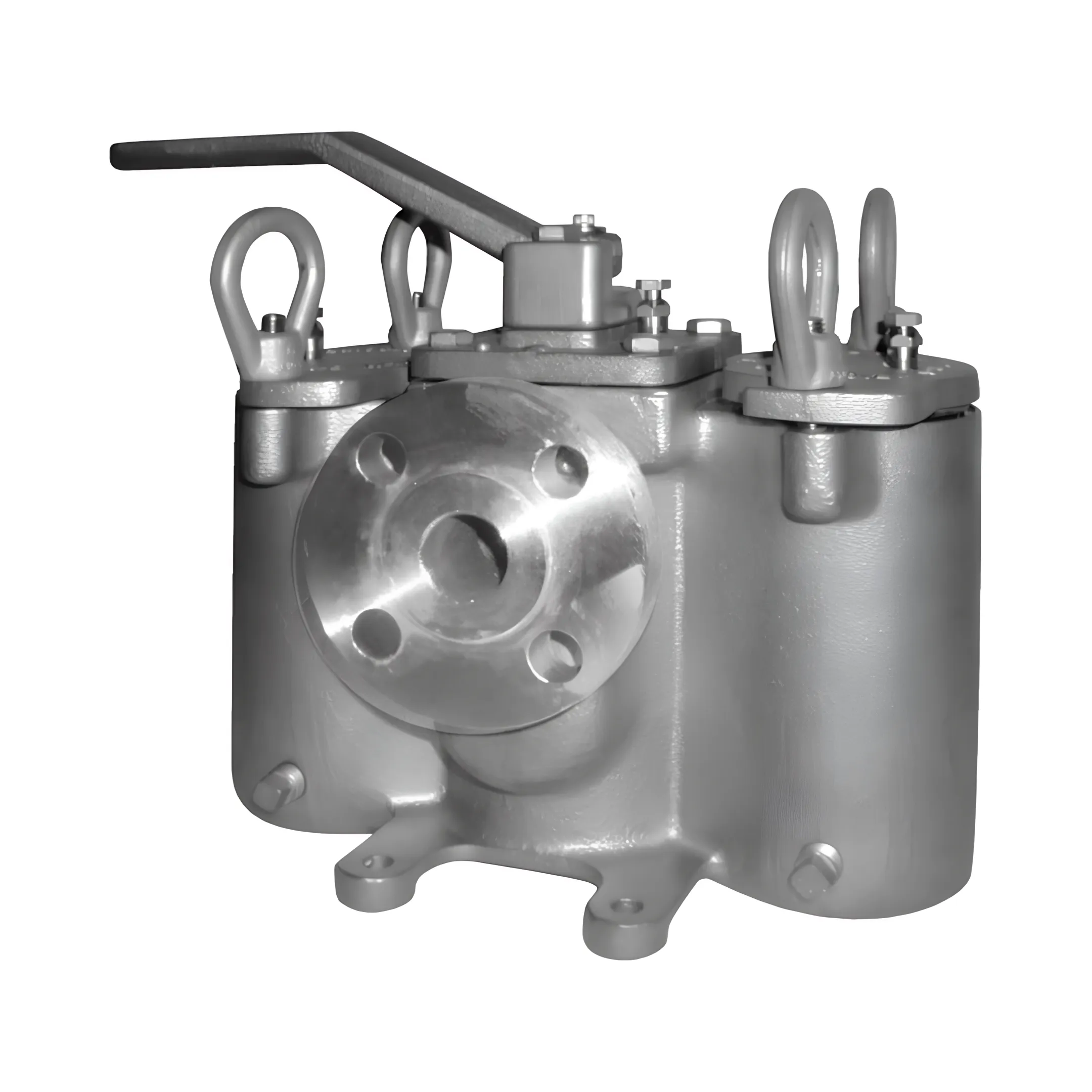

Duplex strainers feature a dual-chamber design with an integrated diverter valve. When one basket accumulates debris and reaches its cleaning differential pressure, flow is diverted to the parallel chamber. This allows operators to remove, clean, and inspect the off-line strainer basket without shutting down cooling pumps or interrupting chilled water circulation to critical computer room air handlers and heat exchangers.

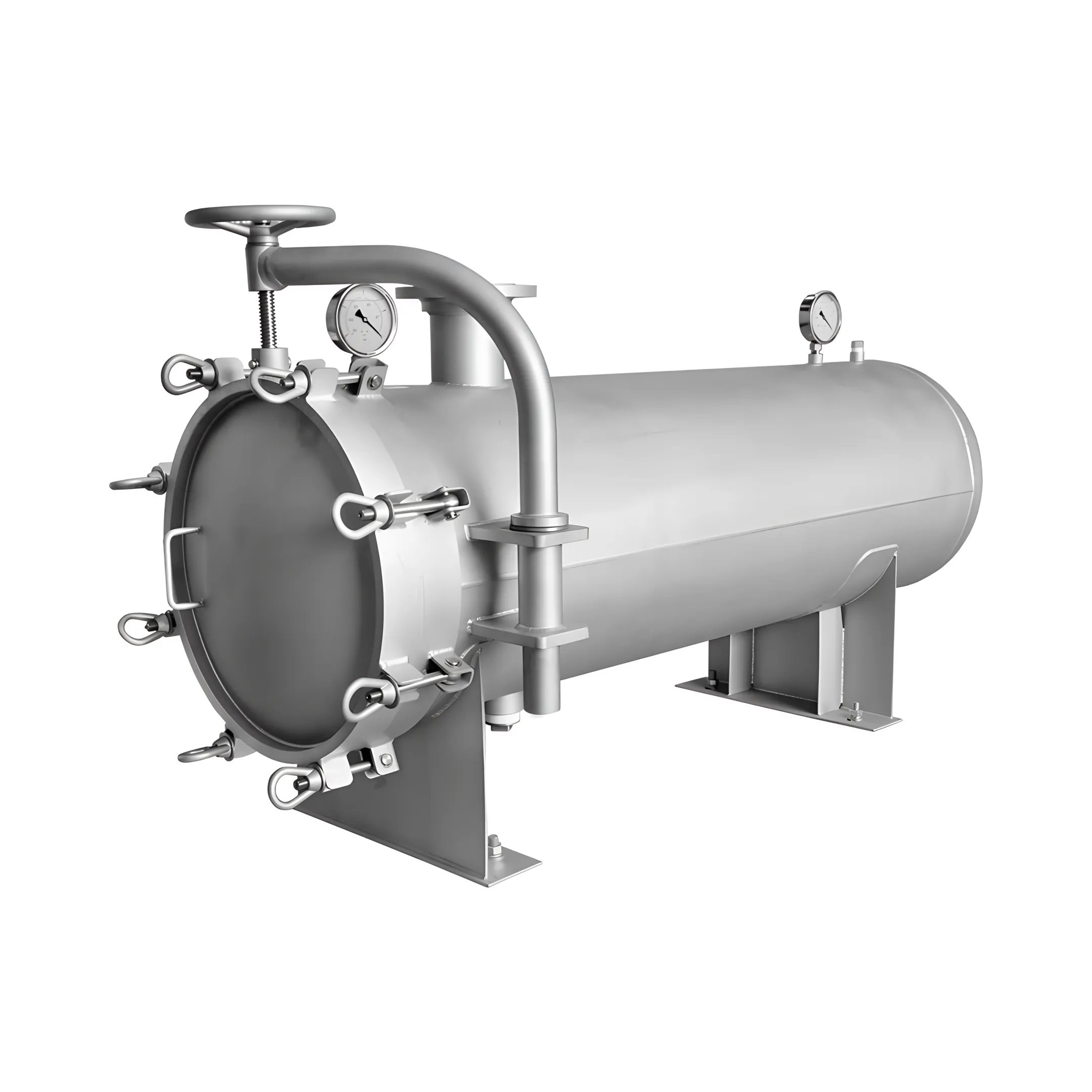

Multi-bag filter housings are engineered for high-flow installations requiring substantial dirt-holding capacity across multiple filter bags. They divide fluid flow among several elements to minimize system pressure drop and accommodate heavy particulate loading. Cartridge housings are typically preferred for fine micro-filtration or reverse osmosis pre-treatment where rigid, pleated depth media are required for sub-micron particulate capture.

Temporary cone strainers install directly between standard pipe flanges during the flushing, hydrostatic testing, and commissioning phases of new piping installations. Their conical geometry provides a large filtration area to capture construction debris, weld slag, and loose scale, preventing serious mechanical damage to downstream pumps, control valves, and heat exchanger bundles prior to switching over to permanent filtration.

Strainer maintenance is dictated by differential pressure across the vessel. As particulate matter collects on the mesh or perforated plate, the pressure differential rises. Gauges monitor this change, indicating cleaning when differential pressure reaches 5 to 20 psi depending on the specific housing and basket configuration, ensuring unrestricted flow and protecting against excessive pump head loss.

Industrial strainers and housings are fabricated primarily from corrosion-resistant 304 and 316 stainless steel to withstand continuous exposure to treated process water, chilled loops, and condenser systems. Internal baskets feature perforated metal plate or woven wire mesh, with elastomer seal options including Buna-N, EPDM, PTFE, and Viton to match fluid chemistry and operating temperatures.

Yes, heavy-duty industrial strainers and filter vessels are engineered for rigorous operating conditions. Depending on the vessel model and connection style, units can accommodate operating pressures up to several hundred psi and operating temperatures exceeding normal industrial water cooling thresholds, manufactured to applicable ASME and ASTM material standards.
