High Flow Filtration Solutions for Data Center Cooling Systems

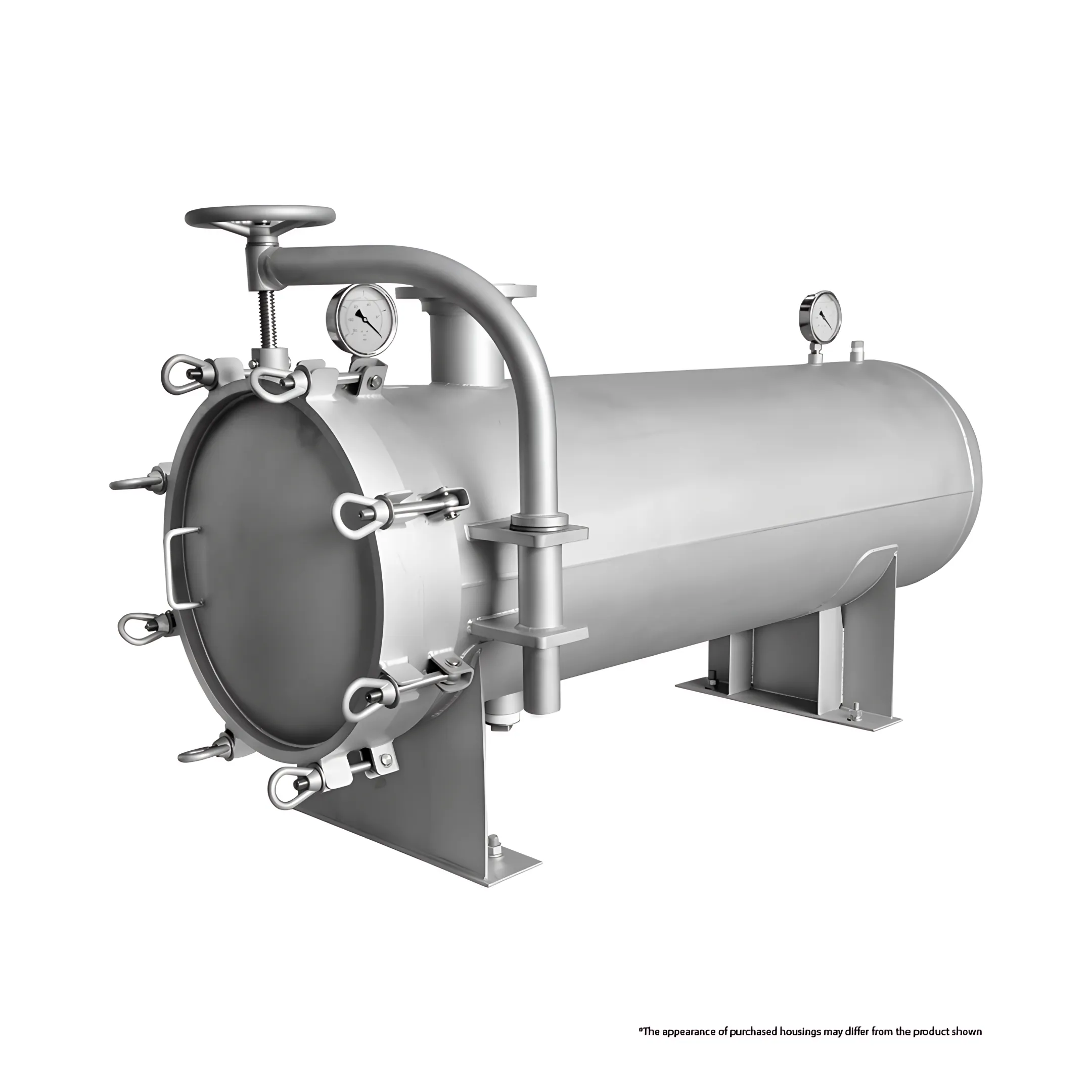

Filter housings are manufactured using 304L stainless steel, 316/316L stainless steel, or non-metallic fiberglass. Selecting the appropriate alloy or fiberglass construction depends on water chemistry, operating temperatures up to 300 degrees Fahrenheit, and system corrosion requirements in mission-critical facilities.

High flow polypropylene cartridges offer filtration ratings ranging from 0.5 to 100 microns. The oversized pleated design delivers high dirt-holding capacity across depth-oriented media, allowing facilities to target fine suspended solids or coarse particulates without creating excessive differential pressure.

The recommended change-out differential pressure is 30 psi. Although cartridges maintain a maximum operating differential pressure of 60 psi at 70 degrees Fahrenheit and 35 psi at 176 degrees Fahrenheit, scheduling element changeouts at 30 psi prevents bypass and protects pumps.

Yes. Qualified filter housing designs are engineered to ASME Section VIII, Division 1 requirements with optional ASME U-stamps, including documented material traceability, certified welding procedures, and hydrostatic pressure testing. CE/PED 2014/68/EU compliant vessels are also offered where required.

Multi-bag vessels accommodate from 2 to 24 standard size number 02 double-length bags. Closure options include clamp, swing-bolt, and davit-assisted assemblies, with internal stainless steel perforated support baskets and standard ANSI flanged connection options to match facility piping.

High flow elements and multi-bag vessels provide substantially larger surface area per element compared to standard 10-inch cartridges. This reduces the total element count, minimizes gasket seals, and allows operators to complete changeouts rapidly through single cover assemblies during scheduled maintenance.
