Reverse Osmosis Water Filter Housing for Data Center Makeup Water

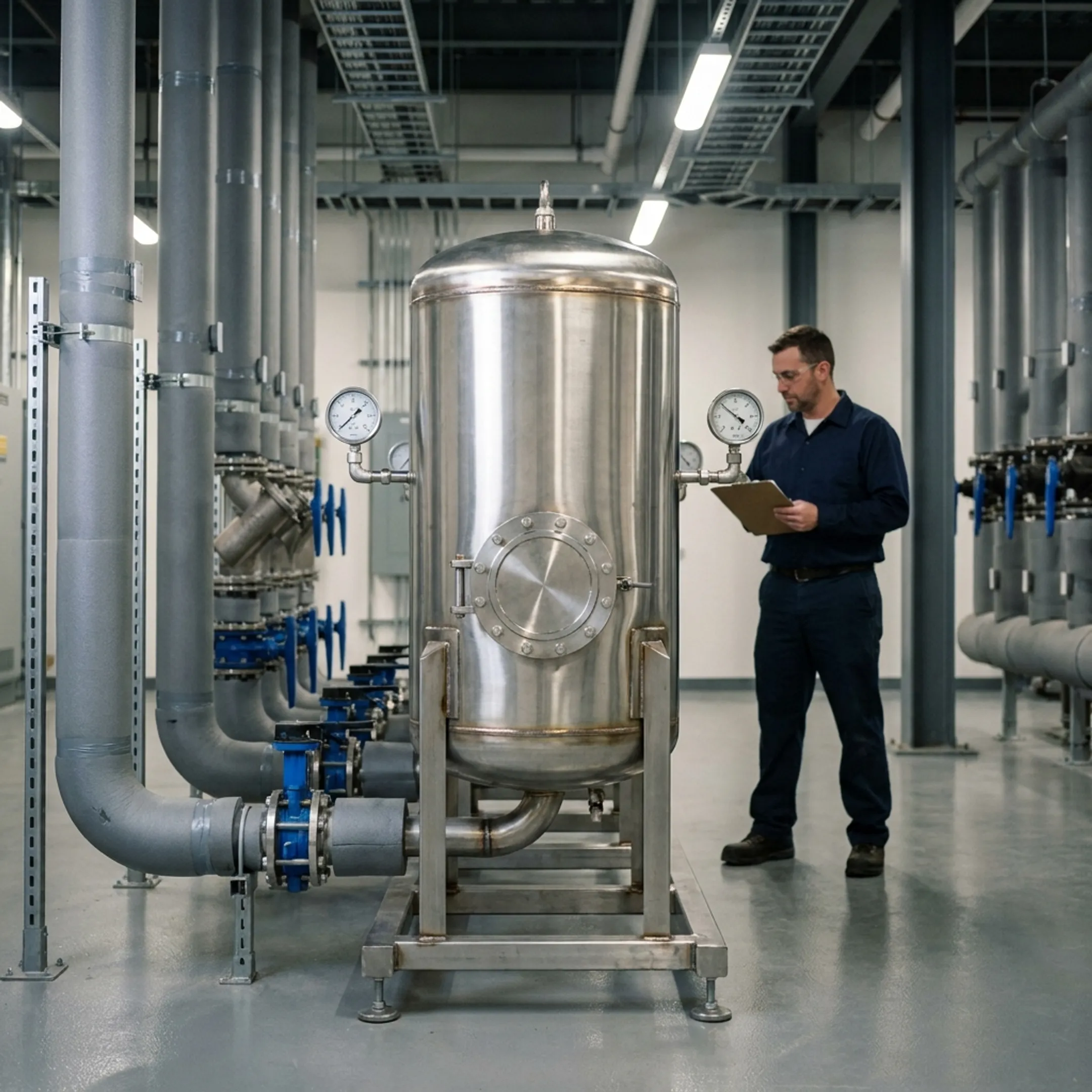

Industrial pressure vessels constructed from stainless steel or robust fiberglass are engineered for long-term service life when properly maintained. Operating within designated temperature and pressure parameters, routinely inspecting gasket seals, and following proper changeout procedures for filter media prevent premature wear, ensuring reliable continuous protection for mission-critical reverse osmosis systems and facility cooling infrastructure.

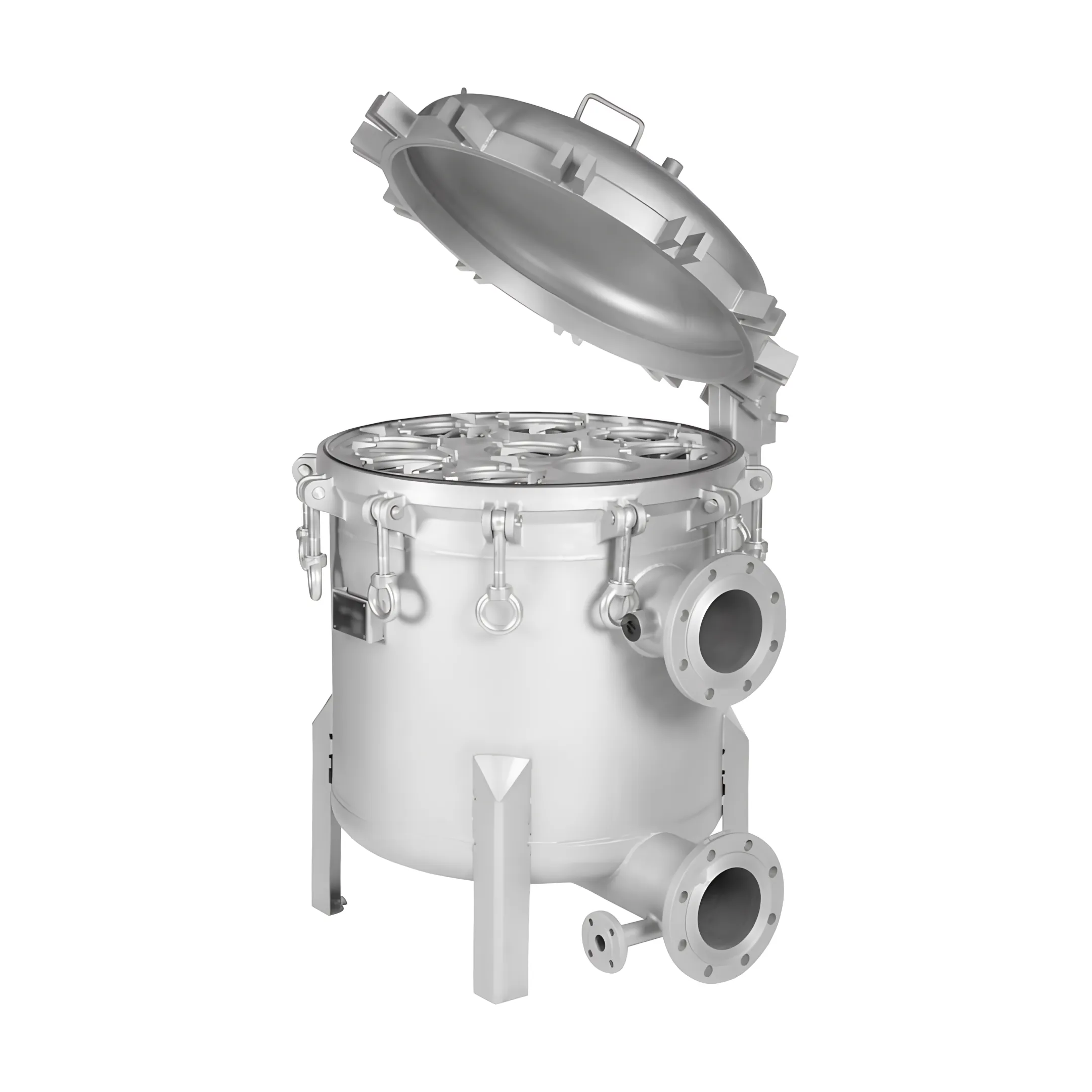

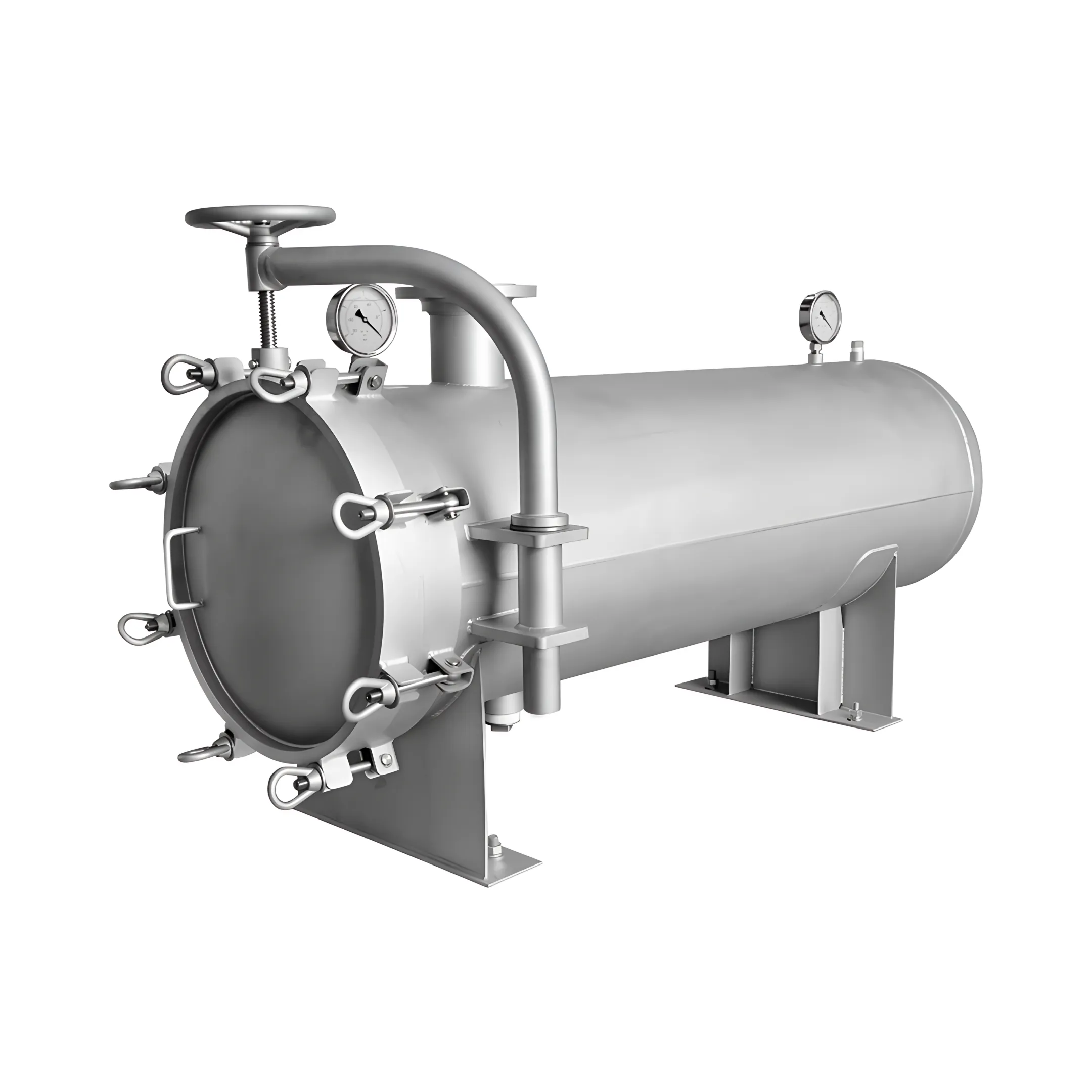

Systems can utilize high-flow cartridge filter housings or bag filter housings in single-bag and multi-bag arrangements. High-flow cartridge housings support vertical or horizontal orientations with various inlet and outlet patterns, while multi-bag vessels handle demanding volumes by distributing process flow across multiple elements accessible through a single cover.

Operating parameters vary by specific vessel model and configuration. High-flow cartridge housings operate at temperatures up to 180°F and differential pressures up to 60 psi. Multi-bag housings accommodate design pressures up to 150 psi and temperatures up to 300°F, while single-bag vessels handle temperatures up to 250°F.

Bag filter housings offer multiple closure styles to simplify routine maintenance, including clamp, band clamp, swing-bolt, and davit-assisted configurations. Piping connection choices include standard ANSI flanged connections, FNPT threaded ports, and sanitary ferrule fittings, allowing straightforward integration into existing facility piping manifolds and reverse osmosis intake lines.

Yes. Qualified filter housing designs are available manufactured to ASME Section VIII, Division 1 standards, including ASME U-stamped vessels produced under authorized quality programs with full material traceability, welding inspections, and pressure testing. CE and PED compliant vessels are also available for applicable system configurations.

To ensure fluid compatibility and prevent bypass in demanding water loops, filter housings offer several elastomer seal choices. Depending on the vessel type and process water chemistry, gasket selections include Buna-N, EPDM or EPR, silicone, and FKM Viton to withstand target operating temperatures and process additives.
