4 Stainless Steel Foot Valves

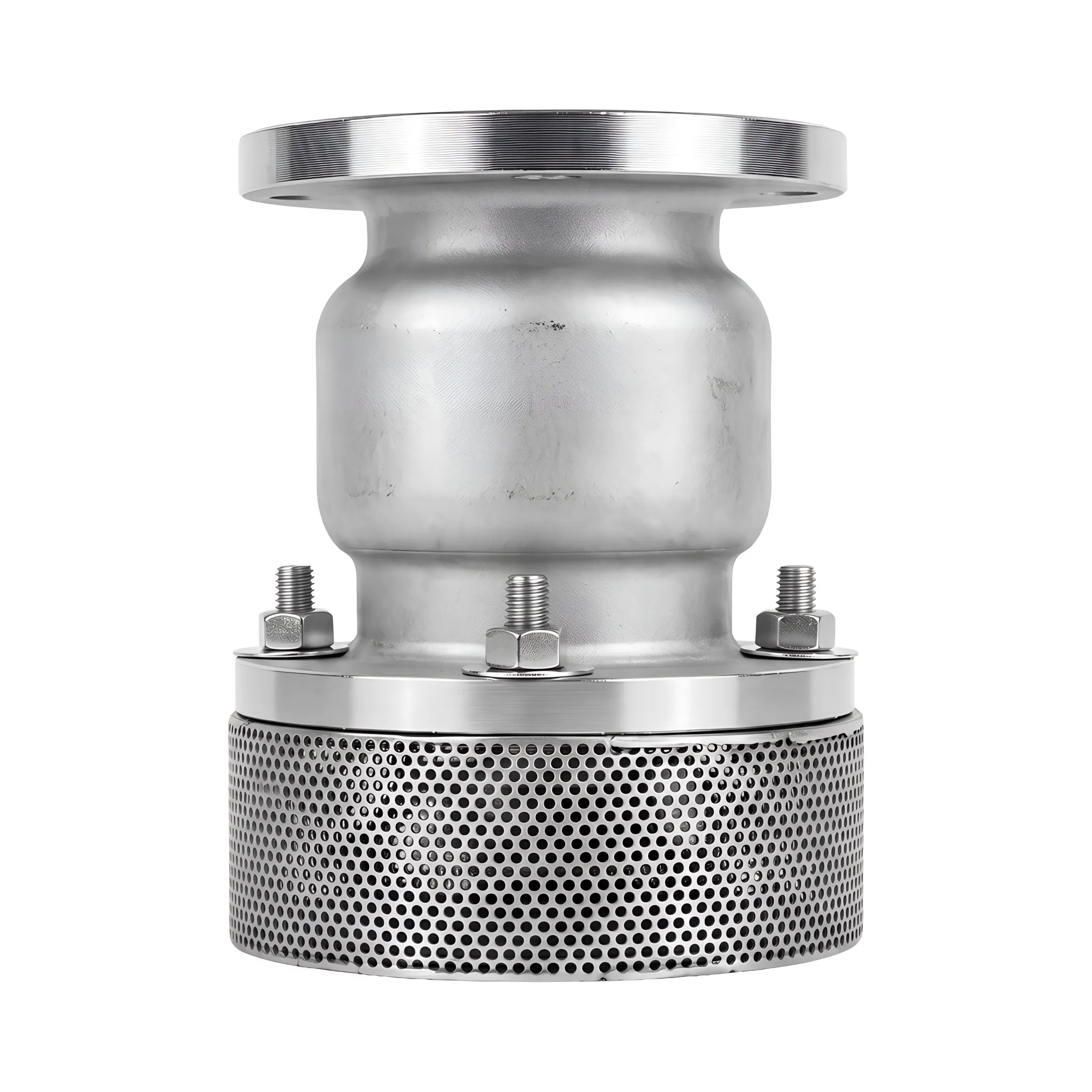

A foot valve is often referred to as a suction check valve, bottom check valve, or pump priming valve. Because it incorporates an integrated inlet screen alongside a one-way flow mechanism, it is essentially a specialized lift or poppet check valve positioned at the fluid intake point to sustain prime and filter coarse solids.

These foot valves are constructed with bodies available in cast iron, carbon steel, and 316 stainless steel manufactured to ASTM material standards. The integrated inlet screens are made from 304 stainless steel, while internal components utilize aluminum bronze or 316 stainless steel to ensure dependable performance in demanding commercial and industrial liquid handling applications.

The valves feature standardized flanged connections available in Class 125 and Class 150 configurations. Designed to meet applicable ASME requirements, including ASME B16.1 and ASME B16.5, these standardized dimensions facilitate straightforward integration into commercial and industrial process piping networks, supporting maximum working pressures up to 285 psig depending on material.

The integrated 304 stainless steel inlet screen acts as a protective barrier at the fluid intake, straining out debris, particulates, and solid contaminants before fluid enters the suction pipe. By keeping harmful objects away from internal valve components and pump impellers, it minimizes flow restriction, maintains high flow capacity, and prevents unexpected downtime.

These foot valves offer multiple elastomeric seal options, including Buna-N, EPDM, and Viton. Selecting the proper seal material depends on the operating temperature range, fluid chemistry, and system demands of your application, ensuring tight shutoff and reliable backflow prevention across cooling water, water treatment, or general liquid transfer systems.

The valves meet applicable ASME requirements, including ASME B16.1 and ASME B16.5 standards for flanged configurations. Additionally, the body and component materials are manufactured to established ASTM material standards, confirming structural integrity, consistent mechanical properties, and compliance across municipal, commercial, and industrial fluid handling systems.
