Water Filter Pressure Gauges for Data Center Filtration Monitoring

Operating pressure depends on system design and equipment specifications. Standard industrial pressure gauges accommodate maximum working pressures ranging from 15 to 200 psi. Facilities teams track baseline differential pressure across filter banks to identify when particulate accumulation restricts flow or strains pumps.

Plumbers and facility technicians utilize direct-reading pressure gauges connected via back or bottom mounts using standard 1/4-inch or 1/2-inch connections. In mission-critical piping, liquid-filled stainless steel gauges containing USP glycerin or silicone oil are deployed to prevent needle flutter and ensure steady, accurate measurement.

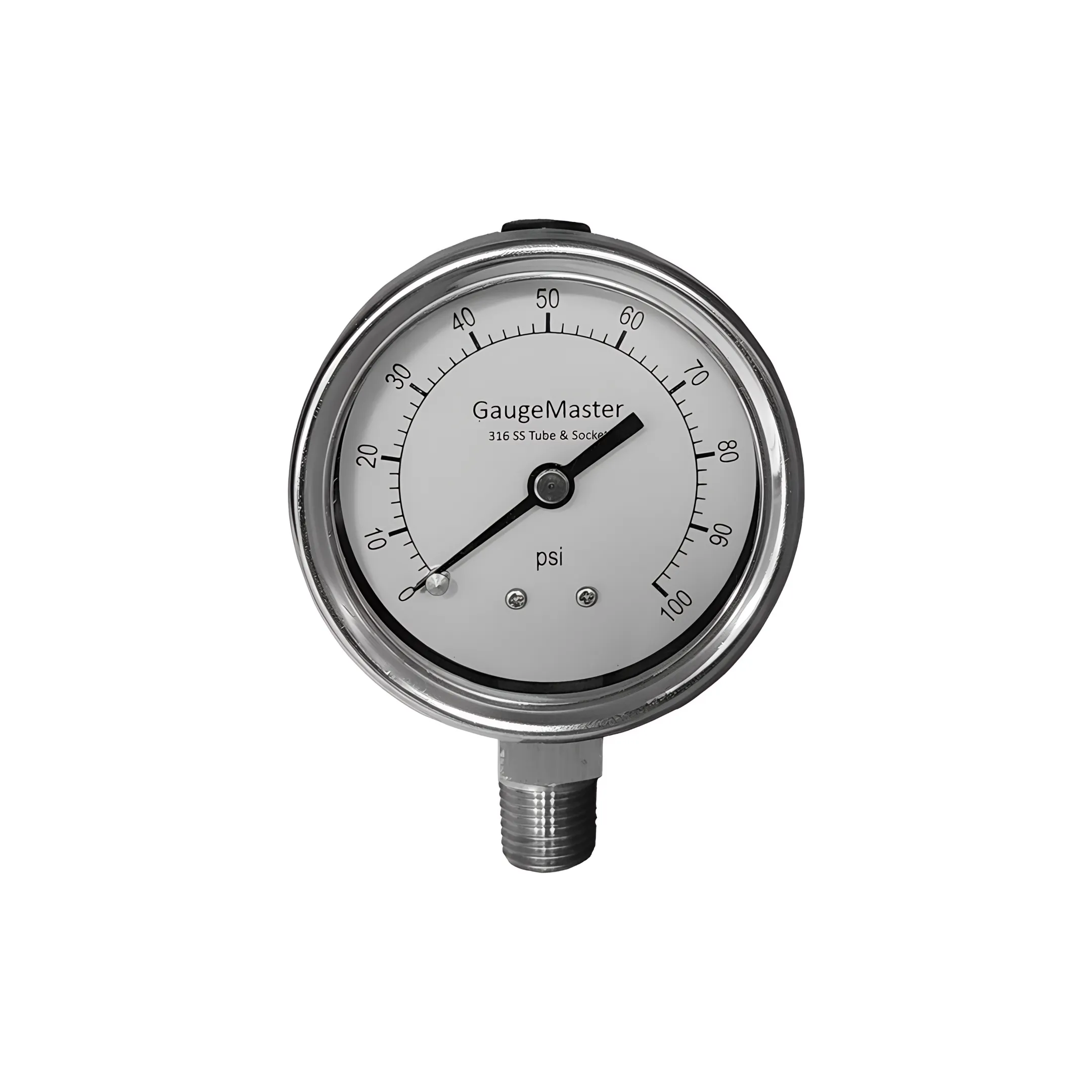

Our stainless steel industrial pressure gauges are available in 2-1/2 inch or 4 inch case sizes. They feature either back or bottom mounting configurations with 1/4 inch or 1/2 inch connection sizes to integrate into standard process piping and cooling infrastructure.

Gauges can be ordered with USP glycerin fill, silicone oil fill, or with no fill. Liquid fill protects internal mechanical movements from heavy vibration caused by nearby pumps, chillers, or cooling tower equipment, extending operational life.

Each gauge features 316 stainless steel socket and tube wetted materials for corrosion resistance, paired with a durable 304 stainless steel case, bezel, and movement to withstand demanding industrial and plant utility environments.

Gauges are manufactured in compliance with applicable ASME and ASTM standards, FDA requirements, and 3-A sanitary standards. Units are available with calibration documentation and material certifications upon request to satisfy rigorous compliance tracking.
