Ultrafiltration (UF) is one tool facilities teams use to intercept those contaminants before they cause damage. It's a pressure-driven membrane process that physically separates particles from water. That's an important distinction: UF treats water, not air. A data center still needs a separate air-intake filtration strategy to keep dust, cottonwood, insects, and leaves out of outdoor coils.
This article covers how UF works, where it fits in data center water systems, what it can and can't remove, how it compares to RO, UV, and conventional filtration, and what to budget for when specifying a system.
Key Takeaways
- UF blocks suspended solids, colloids, microbes, and larger organics; dissolved salts still need RO or ion exchange
- Use UF as RO pretreatment or standalone cooling-water treatment based on source chemistry and flow
- Reliable performance depends on pretreatment, backwashing, chemical cleaning, and scheduled integrity tests
- Evaluate water-side UF and outdoor air-intake filtration as separate systems—neither replaces the other
What Is Ultrafiltration and How Does It Work?
Ultrafiltration (UF) pushes feed water through a semipermeable membrane. The membrane's pore size, or molecular-weight cutoff, decides what stays behind and what passes through. Water and small dissolved substances become permeate. Everything larger (solids, colloids, and most microorganisms) gets concentrated into a reject stream and eventually flushed out during cleaning.
Pore size ranges vary by manufacturer and product line rather than following one universal number. DuPont's UF technology overview cites a general range of 0.02 to 0.05 micrometers, with membrane service life typically running 3 to 7 years or longer depending on operating conditions and cleaning discipline.
Membrane Formats and Flow Configurations
UF membranes come in several physical formats, and the right one depends on feed-water quality, footprint, flow rate, and cleaning needs:
- Hollow-fiber — common for municipal, industrial, and RO-pretreatment applications
- Pressurized or immersed modules — configured around how feed water contacts the membrane
- Spiral-wound, tubular, and flat-sheet — used where fouling tendency or space constraints favor a different geometry
Flow mode matters as much as membrane format. Dead-end filtration sends all feed water toward the membrane, building a filter cake that periodically needs removal. Crossflow operation runs water parallel to the membrane surface at low velocity, which can reduce cake buildup in certain feed conditions.

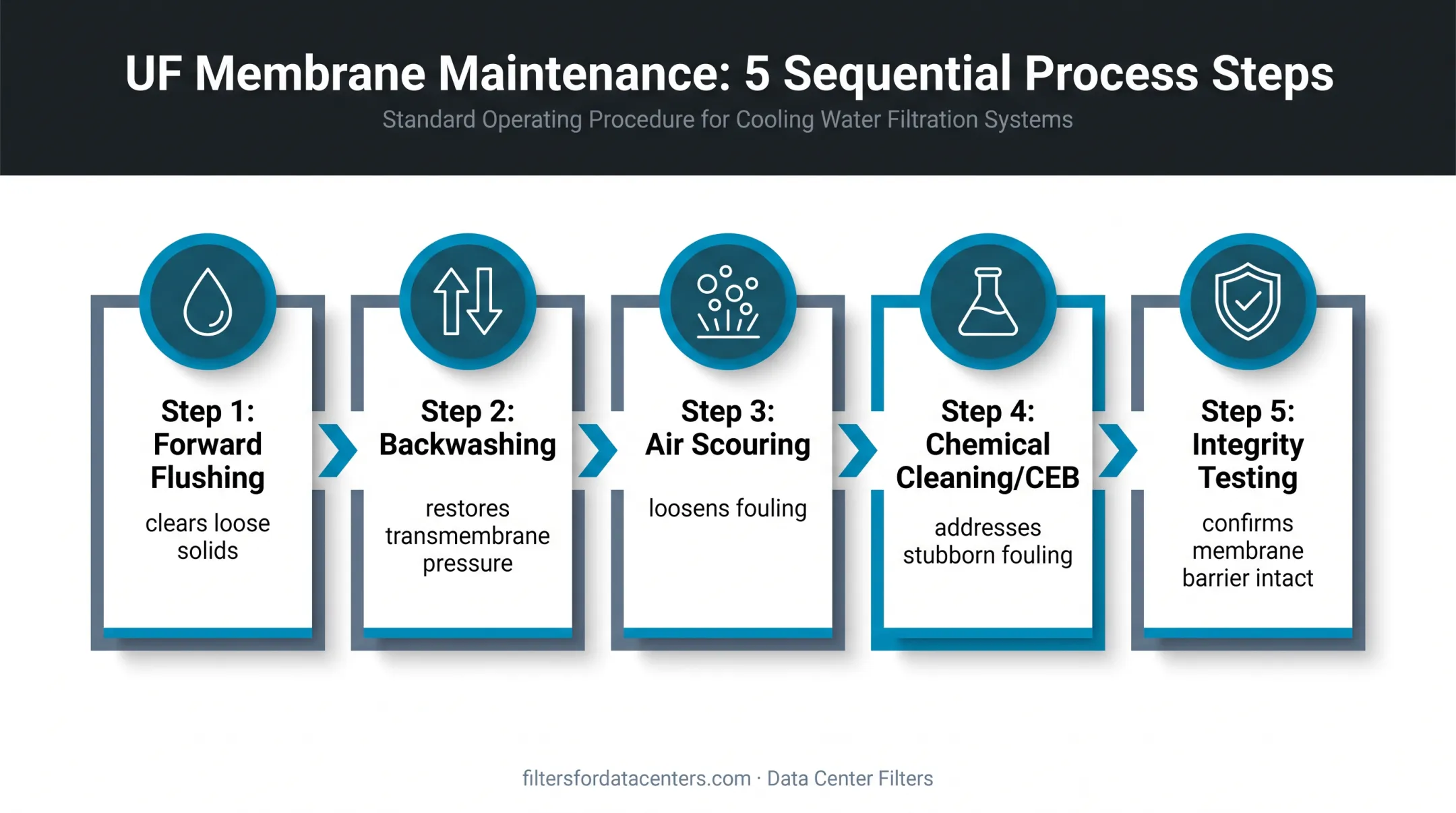

Cleaning and Integrity Testing
Membranes lose performance as solids accumulate. Standard maintenance cycles typically include:
- Forward flushing — clears loose solids from feed channels, often lasting 20-40 seconds per cycle
- Backwashing — reverses flow from the filtrate side to strip the cake and restore transmembrane pressure
- Air scouring — used in some module designs to loosen fouling before backwash
- Chemical cleaning (CEB) — acidic and caustic solutions address fouling that flushing alone won't remove
- Integrity testing — pressure-hold or bubble tests confirm the membrane barrier is intact
Operating pressure, flux, and backwash pressure limits are product-specific. A design engineer should confirm these figures against current manufacturer documentation rather than a single published spec sheet.
Why Data Centers Use UF Water Filters
UF shows up in several water-side roles across a data center's cooling infrastructure:
- Cooling-tower makeup water treatment — reducing particulate load before it enters the loop
- Pretreatment ahead of RO — protecting downstream RO membranes from fouling
- Process, humidification, and reclaimed water — polishing secondary streams before use or reuse
These are distinct from closed-loop chemistry management, which handles corrosion and biological control through inhibitors and biocides rather than membrane filtration.
Untreated suspended solids and biological contaminants create real operational drag: strainers clog faster, heat-transfer surfaces lose efficiency, and cleaning schedules get compressed.
A 2016 peer-reviewed study on cooling-tower blowdown water found that UF pretreatment improved subsequent RO performance by cutting turbidity and removing suspended solids before the RO stage. That documents a real UF–RO synergy; UF alone still does not solve scaling or corrosion.
UF won't independently manage every fouling mechanism. Hardness, dissolved solids, and biological growth in the loop often still require:
- A water softener or antiscalant program
- Activated carbon for chlorine or organics
- Ion exchange for dissolved-ion control
- An RO system if demineralization is the target
Reliability Requirements for Mission-Critical Facilities
Data centers can't treat a UF skid the way a municipal plant might. Facilities teams generally need:
- N+1 redundancy for pumps, racks, and cleaning equipment
- Bypass planning that keeps cooling capacity available during maintenance
- Online monitoring with alarm integration for pressure, flow, and permeate quality
- Spare inventory, including isolation valves and membrane stock on hand
A facility running on relatively clean municipal makeup water may need a simpler UF configuration and less frequent chemical cleaning.
A site pulling from well, surface, reclaimed, or rainwater sources faces more variable feed quality. That usually means more lab testing, tighter pretreatment, and design margin for seasonal swings in turbidity and organic load.

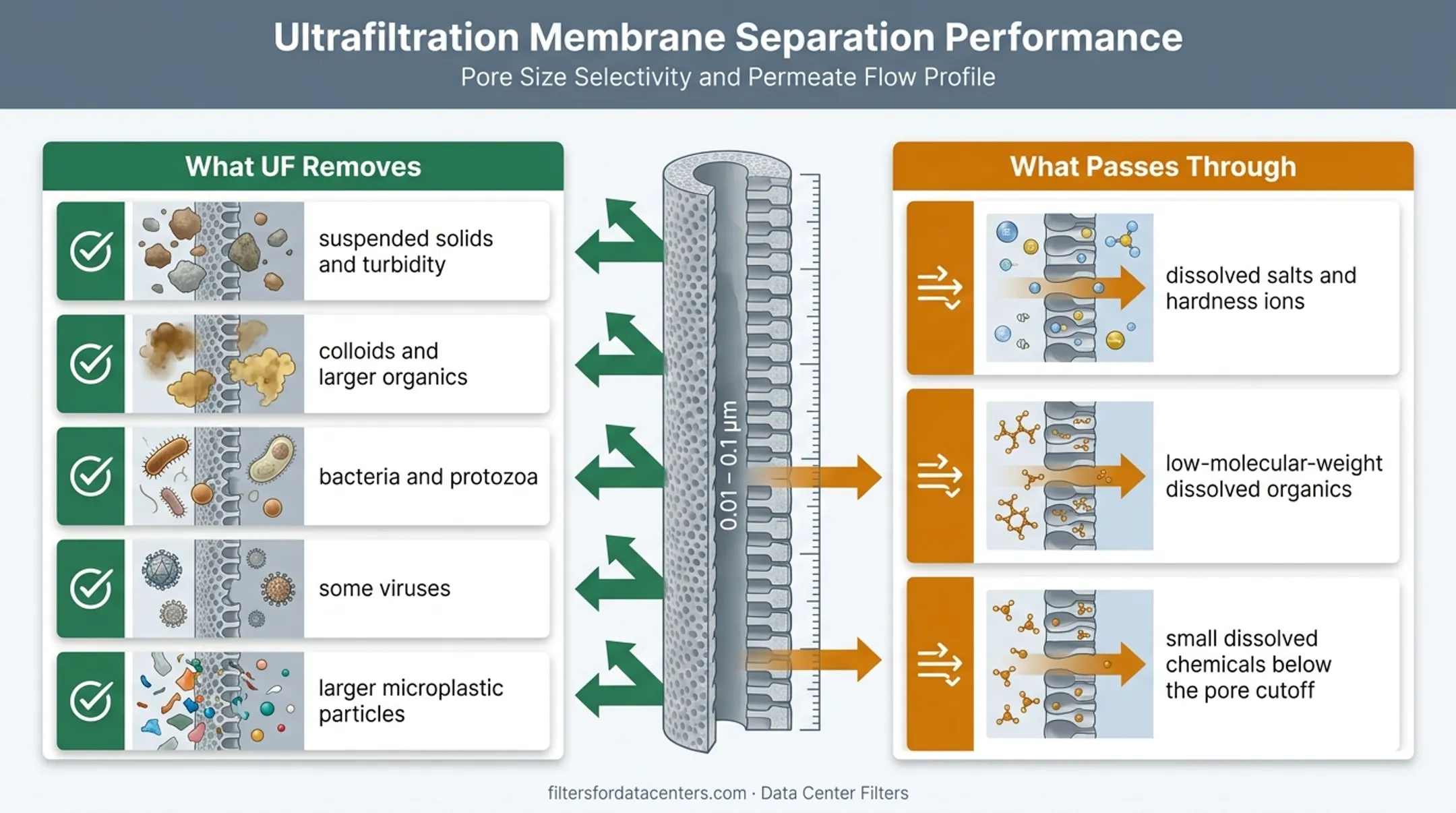

What Does Ultrafiltration Remove—and What Does It Not Remove?
UF's removal capability lines up with particle size rather than chemistry. It retains:
- Suspended solids and turbidity
- Colloids and larger organic compounds
- Bacteria and protozoa
- Some viruses, depending on membrane pore size and integrity
- Larger microplastic particles that exceed the membrane's effective separation threshold
Actual performance depends on membrane condition, feed-water characteristics, and operating parameters, not a single blanket percentage. Facilities teams should treat any removal claim as application-specific until confirmed through testing or manufacturer documentation for the exact module in use.
Common Limitations
UF is a physical barrier, not a chemical one. Contaminants smaller than the membrane's pore structure pass through with the permeate, including:
- Dissolved salts and hardness ions
- Many low-molecular-weight dissolved organics
- Small dissolved chemicals below the membrane's cutoff
This is why lab analysis of source water should come before choosing a system by pore-size label alone. A facility's cooling-water objectives (turbidity control versus dissolved-solids reduction, for instance) determine whether UF alone is sufficient or whether it's step one in a longer treatment train.
On microplastics specifically, a 2024 critical review of membrane treatment performance identified UF among the most studied processes for this contaminant. Combined UF, MBR, and MF results reported "up to 100%" removal—not a UF-only figure.
Particle size and shape affect both fouling behavior and pass-through, so UF isn't automatically a complete solution for every microplastic type.
UF water treatment does not touch airborne contaminants. Cottonwood, dust, insects, and leaves entering outdoor air intakes need a properly designed air-filtration system — a separate discipline from anything happening in the cooling loop.
How UF Compares With Conventional Filtration, RO, UV, and Other Technologies
Each technology solves a different piece of the water-quality puzzle. Here's how they stack up on the factors that matter for system selection:
| Technology | Barrier type | What it targets | Typical trade-off |
|---|---|---|---|
| Conventional media/cartridge/bag filtration | Physical, larger pore range | Bulk solids, turbidity protection | Periodic backwash or replacement; broader particle range than UF |
| UF | Physical membrane | Particles, colloids, bacteria, protozoa | Doesn't address dissolved salts |
| RO | Pressure-driven membrane, tighter pores | Dissolved salts, demineralization | Higher pressure, concentrate stream, heavier pretreatment needs |
| UV | Disinfection (not filtration) | Microbial inactivation | Doesn't remove particles at all |
| Nanofiltration | Intermediate pore size | Hardness, color, some organics | Positioned between UF and RO |
Conventional bag and cartridge filtration remains common in cooling-water systems for bulk solids protection ahead of finer treatment stages. Felt filter bags, for example, are typically rated across a 1 to 200 micron range with flow capacities from 5 to 150 GPM per bag, depending on size and media. That is a much coarser barrier than a UF membrane, but it is often a practical first-stage defense for cooling and condenser water loops.
UF and RO aren't competitors so much as sequential steps. UF generally allows dissolved minerals through while stripping particulates and microorganisms; RO then targets the dissolved load.
DuPont's FilmTec technical manual identifies spiral-wound configuration as the industry standard for RO/NF, citing simpler plumbing and lower replacement cost relative to other configurations. RO still needs clean, low-turbidity feed water to perform, which is exactly what UF pretreatment provides.
UV works differently again. It inactivates susceptible microorganisms through radiation exposure but removes nothing physically — no particles, no turbidity reduction. Pairing UV downstream of UF or RO covers a gap neither membrane process addresses on its own.
The right combination may be UF-only, UF-plus-RO, UF-plus-UV, or a fuller train with softening and activated carbon. Selection usually comes down to:
- Source-water chemistry
- Required permeate quality
- Reuse or discharge goals
- Uptime margin the facility needs
How to Select, Maintain, and Budget for a Data Center UF System
Specifying UF starts with data, not a product catalog. A solid specification package covers:
- Source-water lab results (turbidity, organics, biological load)
- Peak and average flow demand
- Required permeate quality and temperature range
- Available footprint, power, and drainage
- Controls integration and redundancy requirements
- Future capacity needs

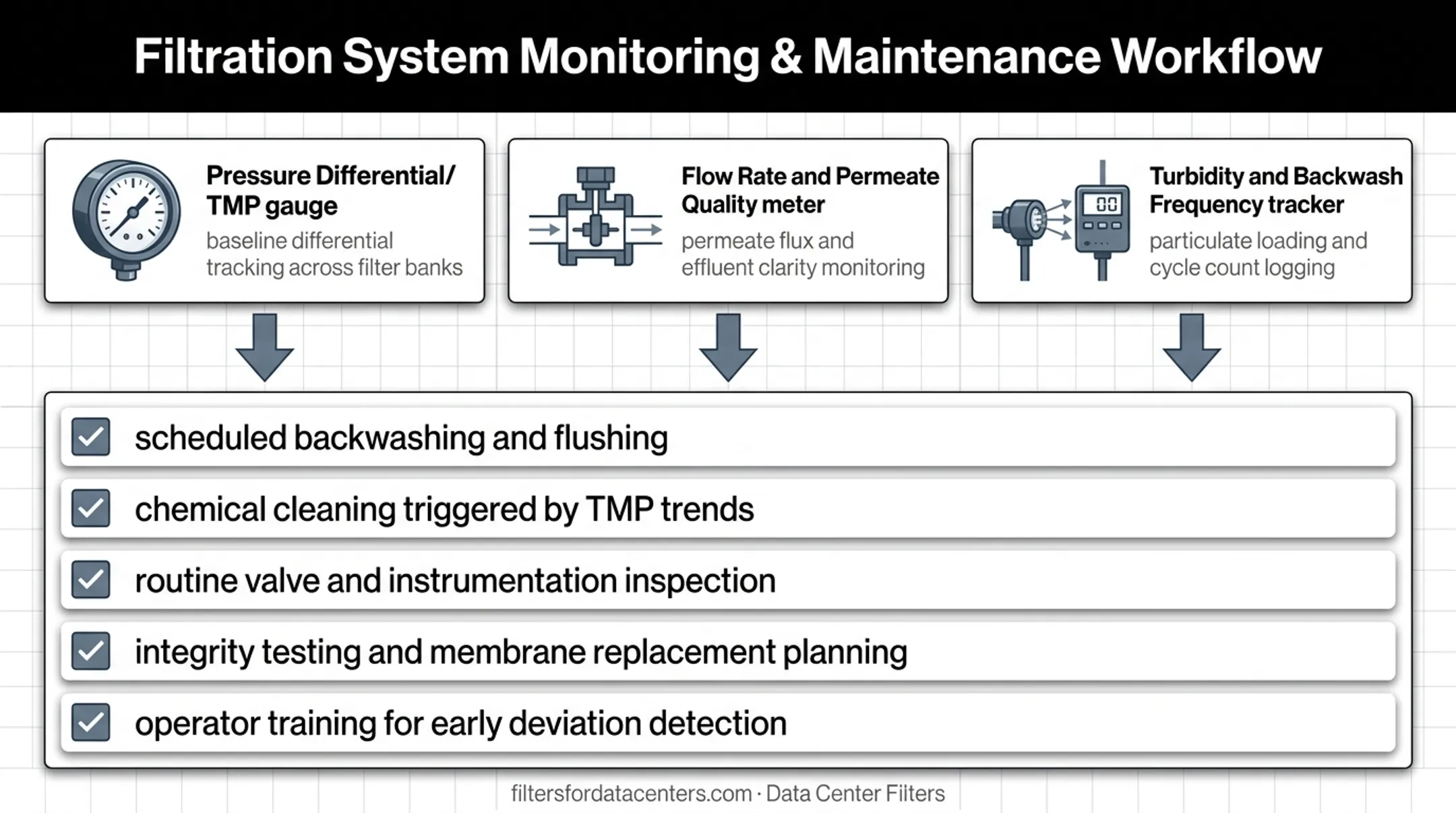

Monitoring and Maintenance Program
Ongoing performance depends on tracking the right indicators:
- Pressure differential and transmembrane pressure (TMP)
- Flow rate and permeate quality
- Turbidity and backwash frequency
Build the maintenance program around that data:
- Scheduled backwashing and forward flushing
- Chemical cleaning when TMP trends show fouling
- Routine valve and instrumentation inspection
- Periodic integrity testing and planned membrane replacement
- Operators trained to spot deviations before they become shutdowns
Cost Categories to Budget For
UF system pricing varies by flow rate, feed-water quality, and configuration. There's no universal number. Budget categories generally include:
- Equipment, engineering, and installation
- Pumps, controls, and pretreatment stages
- Tanks, plumbing, and commissioning
- Power, chemicals, and wastewater handling
- Testing, spare parts, and membrane replacement over the system's life
One supplier estimate places a basic 10-20 GPM system under $100,000, with 100-200 GPM units running $150,000 to $450,000. Treat those figures as a rough industry data point, not a quote. Get flow-rate and water-quality-specific pricing from a qualified vendor before budgeting.
Data Center Filters focuses on air-intake cooling protection, including custom air-intake filtration systems and AFF Field Services for on-site measurement, installation, and maintenance. On the water side, the catalog covers high-flow cartridge filters, felt filter bags, multi-bag filter housings, and stainless steel strainers and valves for cooling, chilled-water, and condenser-water systems.
UF membrane system design should be confirmed with a qualified water-treatment engineer. Facilities teams planning a broader filtration program should evaluate the air and water sides of cooling together, since neither covers the other's gaps.
Frequently Asked Questions
What is an ultrafiltration water filter?
UF is a pressure-driven membrane process that removes suspended solids, colloids, bacteria, and larger organics from water. In data centers, it's used for cooling-tower makeup water or as RO pretreatment, but it doesn't remove dissolved salts.
What's the difference between filtration and ultrafiltration?
Conventional filtration (bag or cartridge) targets a broader particle range, typically down to 1 micron, using replaceable media. UF uses a finer membrane barrier capable of removing bacteria and some viruses, but at higher equipment cost and more complex maintenance.
Which is better: reverse osmosis (RO), ultraviolet (UV), or ultrafiltration (UF)?
There's no single "best" option. Each addresses a different contaminant category. UF removes particles and microorganisms, RO reduces dissolved salts, and UV inactivates microbes without removing anything physically. Many systems combine two or more.
Does ultrafiltration remove microplastics?
UF can retain microplastic particles larger than its effective membrane threshold, but performance varies by particle size and shape. It's not a guaranteed universal solution, and dissolved contaminants pass through regardless of microplastic removal rates.
How much does an ultrafiltration water filter cost?
Cost depends on flow rate, source-water quality, system configuration, pretreatment needs, controls, and installation conditions. Small systems can run under $100,000, while larger flow-rate systems often reach several hundred thousand dollars. Request a project-specific quote for accurate pricing.
What are the two types of ultrafiltration systems?
The two commonly discussed configurations are pressurized and immersed systems. Within those categories, membranes come in hollow-fiber, tubular, spiral-wound, and flat-sheet formats, chosen based on feed-water quality and footprint.
