Commercial Water Valves - Industrial & HVAC Piping Solutions

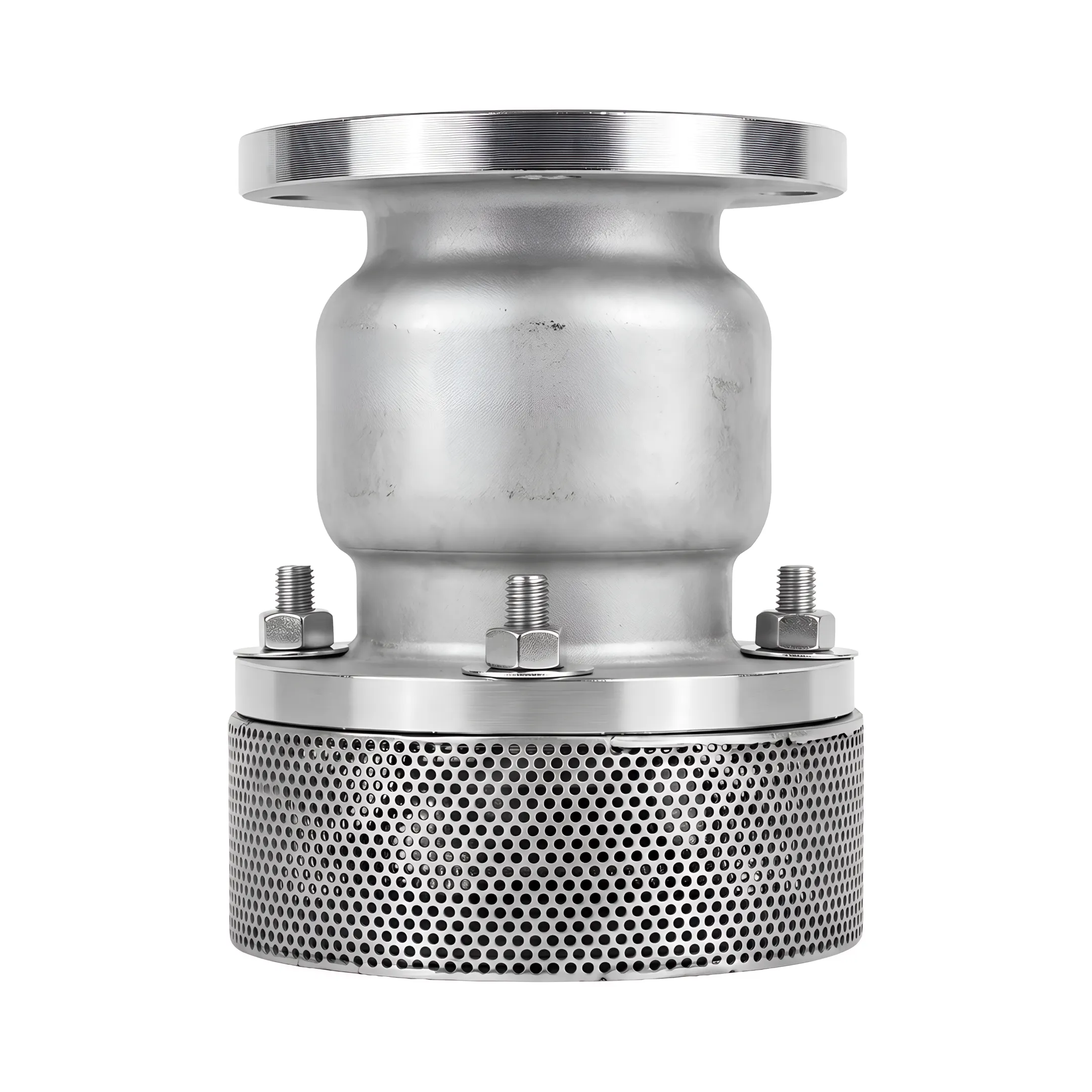

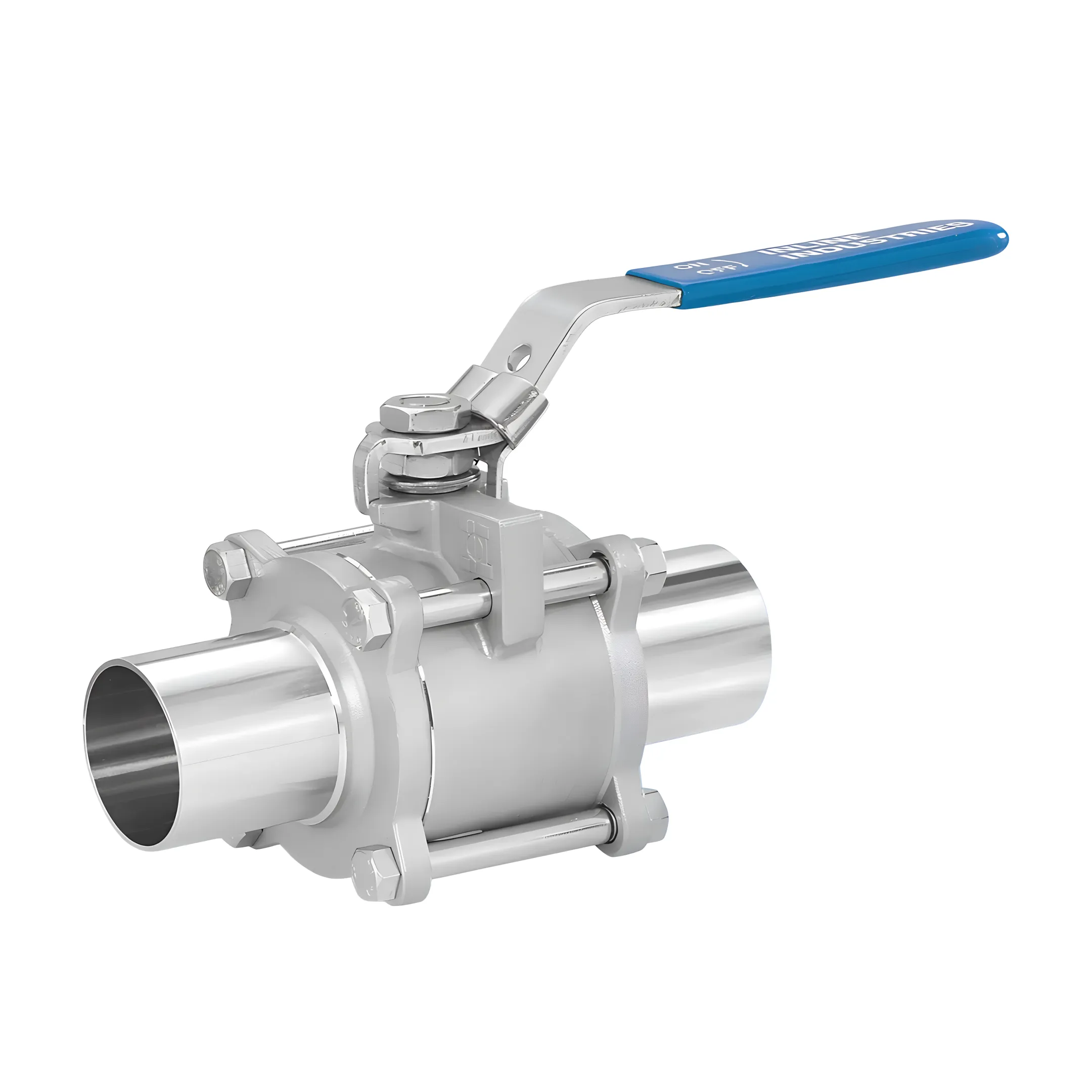

Commercial water valve sizes range from one-quarter inch up to 24 inches depending on valve design and piping requirements. Sanitary ball valves are available in sizes from one-quarter inch to 6 inches. Butterfly valves span one-half inch to 12 inches, with wafer configurations extending up to 24 inches. Heavy-duty foot valves are supplied in diameters from 2 inches to 16 inches.

Commercial water valves are constructed from durable metallic materials including 304 and 316/316L stainless steel, cast iron, and carbon steel. Internal components incorporate stainless steel or aluminum bronze discs and stems. For dependable sealing and temperature compatibility, resilient seats and O-rings are fabricated from elastomer and fluoropolymer materials such as Buna-N, EPDM, PTFE, RPTFE, and Viton based on application demands.

Commercial water valves offer several manual and automated actuation mechanisms to suit facility control requirements. Quarter-turn ball and butterfly valves can be equipped with standard manual lever handles, trigger-style handles, or gear-operated handwheels for manual operation. For automated process management, both valve types can be configured with electric actuators or pneumatic actuators to allow remote or automated flow control.

Maximum working pressures vary by valve configuration, body material, and sizing. Wafer butterfly valves support operating pressures up to 285 psi, while standard butterfly valves operate at pressures up to 140 psi. Sanitary ball valves handle maximum working pressures up to 150 psi. Heavy-duty industrial foot valves accommodate pressures up to 285 psig across Class 125 and Class 150 flanged connections.

Water valves are designed with multiple standardized end connection types to ensure straightforward integration into commercial and industrial piping infrastructure. Depending on the valve model selected, connection options include wafer-style bodies for installation between mating pipe flanges, weld ends, sanitary tri-clamp fittings, female NPT threaded connections, and standardized Class 125 or Class 150 ANSI flanged connections.

Products comply with recognized industry engineering standards, including ASME B16.1 and ASME B16.5 for flanged designs, ASTM material specifications, and FDA requirements where applicable. Quality verification documentation is available upon request, including material test certificates, dimensional inspection reports, surface-finish verification down to 15RA EP, and factory pressure testing documentation to ensure pressure containment and shutoff reliability.
