Introduction
Rust, scale fragments, and construction debris do not need a large breach to hurt a data center cooling loop. In a closed system, those suspended solids recirculate until they foul heat exchangers, strain pumps, and cut into the cooling capacity mission-critical IT depends on.
Closed-loop water system filtration removes those particles from recirculating cooling water. Unlike open systems, the loop is not managed through constant discharge and makeup. The goal is stable water quality inside a sealed circuit.
For U.S. data center owners, operators, facilities managers, and cooling maintenance teams, that distinction is practical. Filtration protects chillers, plate-and-frame exchangers, pumps, and liquid-cooling hardware that must run around the clock.
Closed-loop cooling is often sold as a water-saving move. Reliability depends on something quieter: filtration and water-quality practices that keep the loop clean for years, not just the day it is filled.
This guide covers:
- How closed-loop filtration works
- Where it fits in your cooling architecture
- How to choose the right approach
- Where filtration alone will not fix the problem
Key Takeaways
- Continuous or periodic filtration removes suspended solids from recirculating coolant, protecting pumps, heat exchangers, chillers, and liquid-cooling components.
- Water filtration does not replace chemical treatment, corrosion control, biological control, or dissolved-contaminant monitoring.
- Match the filter to particle type, flow, pressure-drop tolerance, water chemistry, and redundancy needs.
- Pair water filtration with external air-intake filters to protect outdoor coils and heat-rejection equipment.
What Is Closed-Loop Water Filtration?
A closed-loop water system is a recirculating circuit. Coolant moves through cooling equipment, absorbs heat, carries that heat to a rejection point, then returns to start the cycle again. Data center chilled-water loops, coolant distribution units (CDUs), and direct-to-chip liquid cooling circuits all work this way.
Filtration, in this context, means mechanically separating suspended particles (rust, corrosion products, welding slag, scale fragments, and similar solids) from that circulating fluid. It's a physical process, not a chemical one.
What clean filtration actually delivers:
- Cleaner surfaces and passages throughout the loop
- More consistent, predictable flow
- Lower fouling risk on heat-transfer surfaces
- Better protection for components that depend on steady heat rejection
Filtration vs. Water Treatment
Filters catch suspended solids. They don't touch dissolved minerals, pH, inhibitor concentration, glycol degradation, or microbial activity. Those need chemical treatment, biocides, and ongoing water chemistry management—a separate but connected discipline.
A closed loop isn't the same as an open cooling-tower loop that constantly draws in and discharges water. "Closed" still doesn't mean clean forever. Contaminants enter from initial fill water, corrosion, makeup water, maintenance work, leaks, and normal component wear.
Where Filtration Sits in Data Center Loops

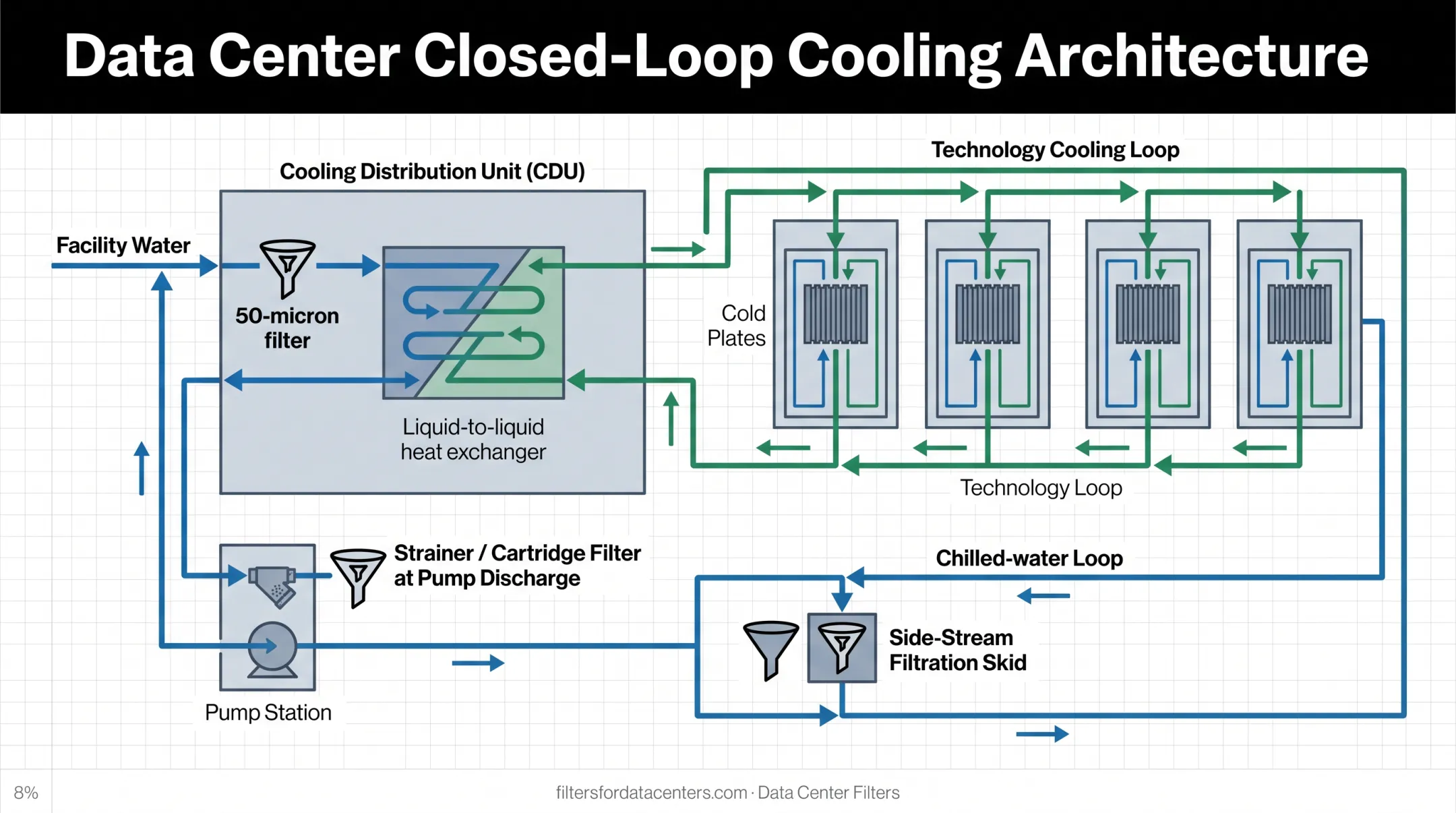

In modern data center architecture, CDUs typically separate the facility water system from an isolated technology cooling loop with a liquid-to-liquid heat exchanger. Vertiv notes that many CDUs include a 50-micron filter as standard equipment. That filter protects the plate heat exchanger and downstream cold plates from particulate buildup.
For simpler chilled-water loops rather than CDU-based direct-to-chip systems, filtration often sits at pump discharge or on a dedicated side-stream. Common options include simplex strainers or high-flow cartridge housings sized to the loop's flow and particle profile.
Why Closed-Loop Water Filtration Matters in Data Centers
Suspended solids don't stay put. They restrict passages, foul heat-transfer surfaces, damage pump seals, and interfere with valves and sensors. Over time, that adds up to a system that can't move heat as consistently as it did on day one.
For data centers, that loss of consistency shows up as uptime risk.
Filtration connects directly to priorities that facilities teams already track:
- Predictable cooling capacity under peak load
- Equipment life for pumps, valves, and heat exchangers
- Maintenance planning instead of emergency response
- Fewer avoidable alarms and thermal excursions
Where Contamination Comes From, Even in a "Closed" Loop
A sealed loop sounds immune to outside contamination. It isn't. Common sources include:
- Corrosion by-products generated inside the piping itself
- Construction or commissioning debris left in the system
- Oxygen ingress through fittings, seals, or makeup water
- Poor-quality makeup water introduced during top-offs
- Low-flow or stagnant areas where sediment settles
That last point matters more than people expect. A loop with dead legs or low-velocity branches gives particles somewhere to collect instead of circulating past a filter.
A closed loop still needs water makeup and hands-on attention. Zero water use and zero maintenance aren't realistic. Most systems still need:
- An initial fill and occasional top-offs
- Periodic flushing and water sampling
- Chemical treatment
- Controlled draining during service
BOLL Filter's guidance on treating data center water systems notes that sand, sediment, algae, biofilm, and rust can damage heat exchangers, piping, and valves. Even minor contamination can reduce heat-transfer efficiency while increasing pumping energy.
Front-line strainers are one practical way to keep those solids out of critical equipment. Data Center Filters' simplex and duplex strainer lines capture dirt, debris, and suspended solids before they reach a pump, valve, or heat exchanger. Basket options span 20 to 400 mesh, so protection can match how fine the duty needs to be.
How the Filtration Process Works
Coolant leaves a cooling component and passes through a selected filtration point. Suspended particles are captured or separated there, then the conditioned stream returns to the loop or continues to the next heat-transfer component.
What determines how that filtration point is designed:
- Fluid type and temperature
- Flow rate and system pressure
- Particle size and concentration
- Piping materials and equipment tolerances
- Required cleanliness level for downstream components
Full-Flow vs. Side-Stream Filtration
Full-flow filtration exposes 100% of circulating fluid to the filter. It catches everything, but it demands larger housings, creates more pressure drop, and typically needs bypass protection and redundancy so a clogged filter doesn't choke the whole loop.
Side-stream filtration diverts a smaller, controlled portion of flow through a filter and returns it to the loop. It's less disruptive to the primary circuit and makes servicing, backwashing, or replacement easier without touching the main flow path.
Common filtration and separation approaches include:
- Simplex and duplex strainers for coarse debris removal
- Cartridge or bag filters (felt or mesh) for finer particulate
- Automatic backwashing filters for continuous, low-maintenance operation
- Magnetic separators for ferrous particles
- Centrifugal or hydrocyclone separators in select applications
None of this replaces a proper engineering review. The right filter rating and configuration depend on your system's actual fluid, flow, and contamination data. Always check OEM requirements and consult a qualified water-treatment or cooling-system engineer before finalizing a design.
From Design to Daily Operation

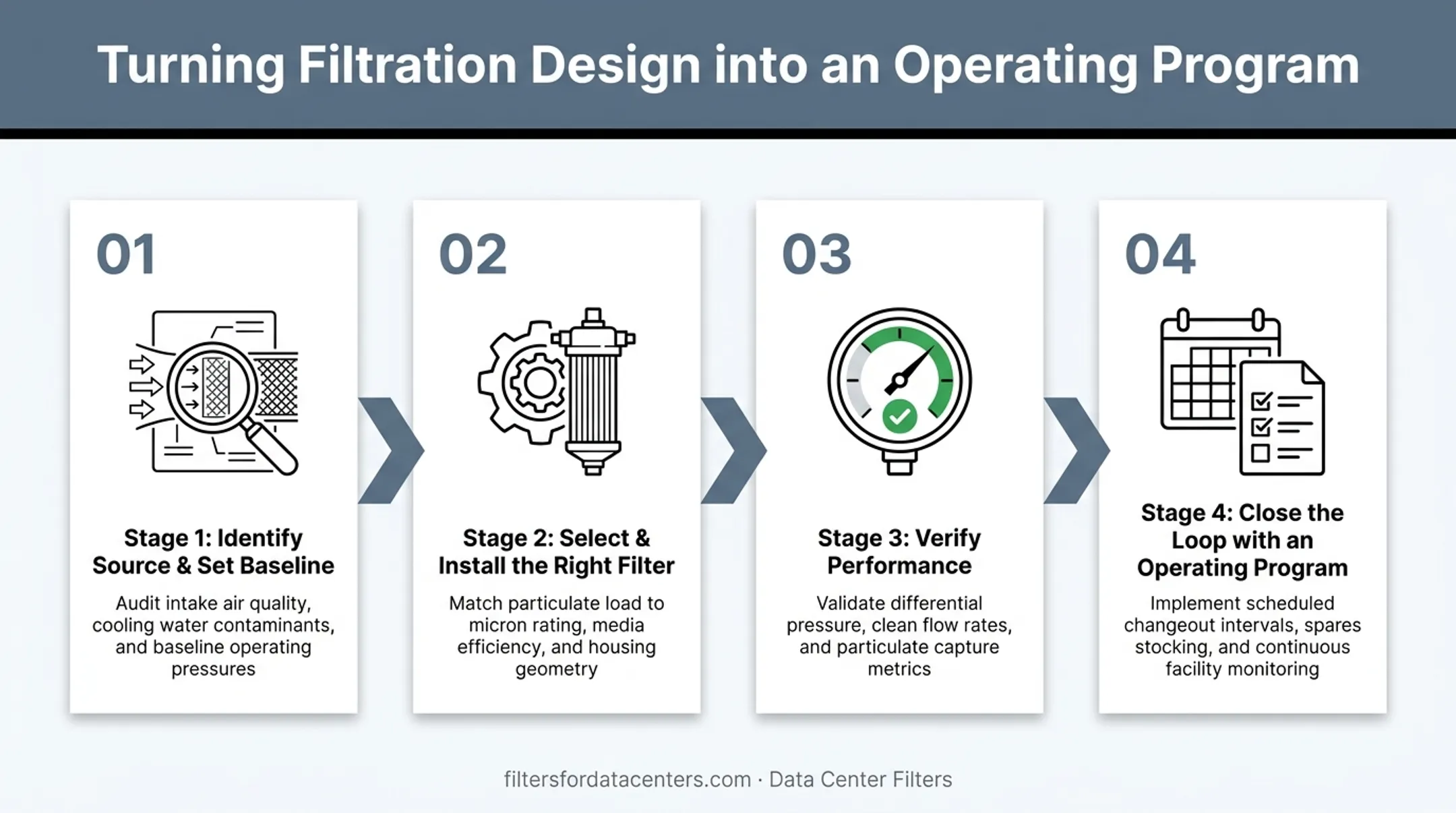

Hardware choice is only half the job. A four-step process turns filtration design into a reliable operating program.
Identify the source and set a baseline. Pull water samples, track differential-pressure readings, and review flow and temperature trends alongside maintenance records. Inspect existing strainers or filter media to see what is actually being caught today.
Select and install the right filter. Size multi-bag housings or high-flow cartridge systems to the install's flow and space limits. Plan for:
- Service access and isolation valves
- Bypass protection and pressure-drop limits
- Material compatibility with loop metallurgy and seals
- Leak containment and service clearance
Verify performance. After install, track differential pressure, flow, and particle or turbidity trends. Use visual inspection, heat-transfer indicators, and lab testing when trend data alone is incomplete.
Close the loop with an operating program. Include scheduled or condition-based cleaning, media replacement, backwashing, proper disposal, documentation, and periodic review of recurring contamination sources. Skip this step, and even a well-designed install drifts out of spec over time.
Where Filtration Fits and What Affects Performance
Filtration typically shows up at a handful of points in a data center cooling architecture:
- Pump discharge or return lines
- Side-stream skids running parallel to the main loop
- Coolant distribution units (CDU supply and secondary loop sides)
- Heat-exchanger circuits
- Dedicated equipment-protection points ahead of sensitive hardware
Final placement always depends on the engineered design of your specific system, not a generic template.
ASHRAE's TC 9.9 guidance on water-cooled servers recommends endpoint filtration on the CDU supply side to prevent particulate buildup in the plate heat exchanger. It also calls for filtration on the secondary technology cooling loop to catch debris from servicing, commissioning, or scale formation.
Filtration supports chemical treatment. It doesn't replace it. Programs that still need to run alongside your filter include:
- Corrosion inhibitors and scale control
- pH balance and dissolved oxygen management
- Glycol stability and microbiological control
Selection Factors That Actually Matter
| Factor | Why It Matters |
|---|---|
| Particle characteristics | Magnetic, fibrous, abrasive, sticky, or fragile solids need different capture methods |
| Flow and pressure drop | A clogged or bypassed filter can starve equipment of flow |
| Fluid chemistry and metallurgy | Glycol concentration, seals, and elastomers must match the filter's construction |
| Redundancy and access | Automatic vs. manual cleaning, spare media, and safe handling of contaminated waste |
| Instrumentation | Differential-pressure gauges, alarms, flow sensors, sampling ports, and trend logging |
Commissioning debris and recurring solids often need more than a filter change. Flushing, repair, passivation, or correcting oxygen ingress at the source may be the real fix. Filtration mostly buys time and protection while the root cause gets addressed.
Manufacturer guidance on maintenance intervals varies by water quality, flow rate, and filter type, so there's no universal number to plug in. Track differential-pressure trends against your own baseline and let that data, not a calendar, tell you when service is due.
Air-Side Protection Runs on a Separate Track
Water filtration protects the liquid loop. It has no bearing on what happens outside, at dry coolers, condensers, and coil banks exposed to cottonwood, dust, insects, and leaves. That's a separate problem requiring separate equipment.

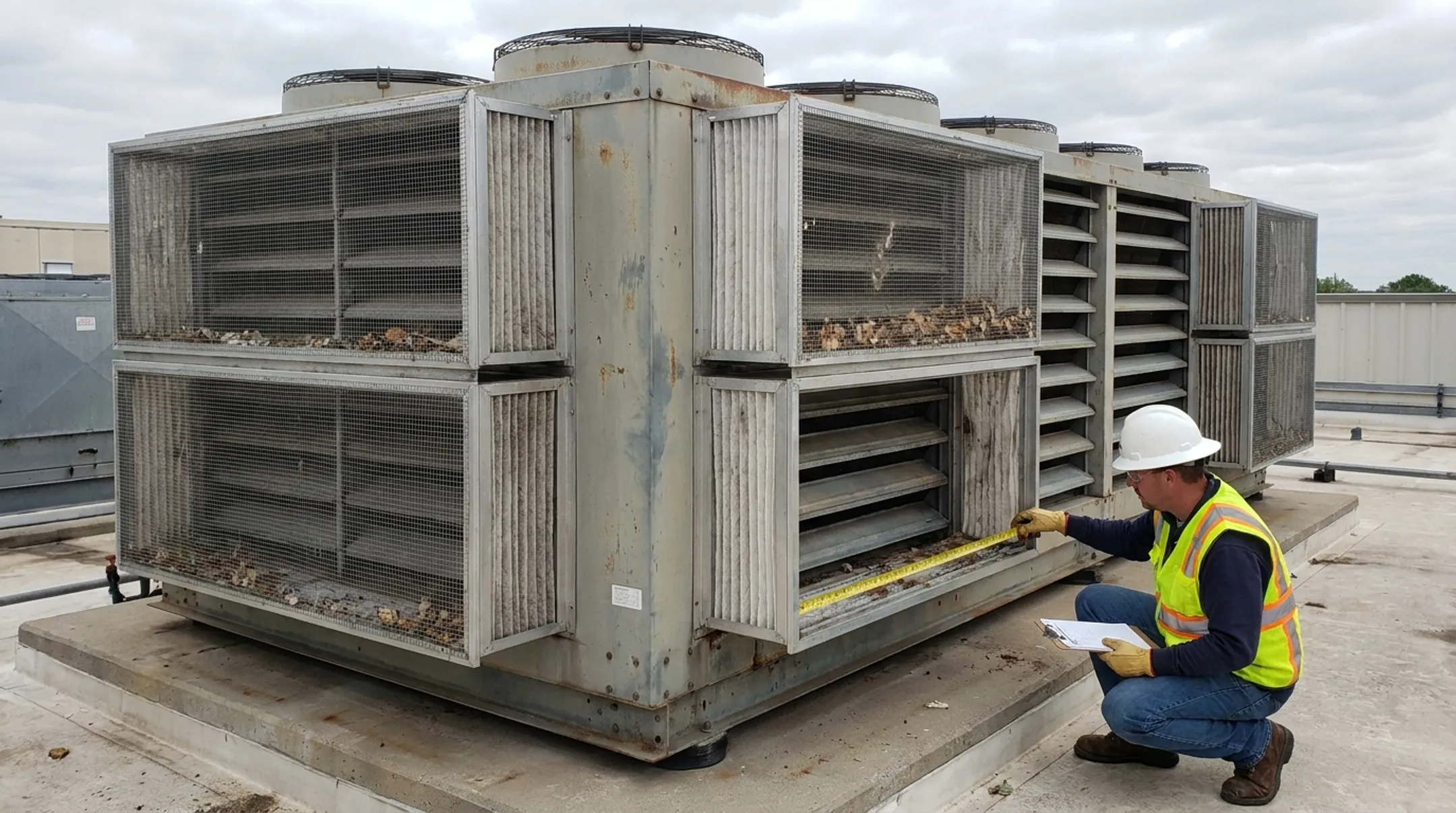

Data Center Filters' custom external air-intake systems, with AFF Field Services available for on-site measurement and installation, address that air-side exposure. It's a complementary solution, not a substitute for water-side filtration.
Common Issues, Misconceptions, and Limitations
"Closed loop" doesn't mean "clean forever." Corrosion, debris, biological activity, leaks, and routine maintenance all introduce or generate contaminants inside a sealed system. Treating a closed loop as maintenance-free is the most common misconception facilities teams run into.
Finer isn't automatically better, either. A tighter micron rating captures more, but it also loads faster, increases pressure drop, and can strain pump energy when the media is too fine for the duty. Match the rating to the actual particle profile.
A rising differential-pressure reading is a signal, not a verdict. It could mean:
- A one-time contamination event, like recent construction work
- Active corrosion generating new debris
- Undersized filter media for the current loading
- Cleaning or backwash cycles that aren't keeping pace
Filtration hits its limits fast against certain problems. A filter alone will not correct:
- Dissolved contamination
- Microbiologically influenced corrosion (MIC)
- Glycol degradation
- Active leaks
- Severe chemical imbalance
- Stagnant dead legs
Those conditions usually need a full flush and a water-treatment program.
Quick troubleshooting sequence before changing anything:
- Confirm differential-pressure or flow readings against known baselines
- Inspect the filter element and bypass path for damage or open bypass
- Identify the actual contaminant (sample or visual check)
- Compare current flow and pressure to commissioning data
- Review recent water-chemistry results
- Escalate to a qualified water-treatment specialist if the source isn't obvious
Always follow site procedures, chemical-handling requirements, manufacturer instructions, and change-control processes before adjusting treatment or filtration specs.
Conclusion
Closed-loop water filtration removes suspended solids from recirculating coolant, and that alone helps preserve flow, heat transfer, and component reliability across a data center's cooling infrastructure. It is a foundational piece of cooling protection—not a standalone fix.
Real performance depends on matching the method to your loop:
- Contaminant profile and particle load
- System design and flow path
- Cooling fluid chemistry
- On-site maintenance capacity
No single filter rating fits every loop. Pair filtration with water-quality monitoring, chemical treatment, leak prevention, routine equipment upkeep, and air-side protection for outdoor coils and heat rejection gear.
Before you select equipment, document your cooling architecture and any contamination history you already have. For critical or high-capacity systems, get qualified engineering input before locking the design.
Frequently Asked Questions
How do I know if my water system is a closed loop system?
You're in a closed loop if the same cooling fluid keeps circulating through a defined circuit of pumps, heat exchangers, chillers, or liquid-cooling equipment. Makeup water should be occasional, not a constant intake-and-discharge flow.
What are the key differences between open loop and closed loop water systems?
Open loops draw in and discharge water continuously, stay exposed to the atmosphere, and use more water. Closed loops recirculate the same fluid, cut overall consumption, and depend more on filtration and chemical monitoring to keep that fluid usable long-term.
Do closed loop systems still use water?
Yes. Most closed loops need an initial fill plus occasional top-offs or maintenance water. Actual consumption depends on the heat-rejection design, leak rate, drainage during service, and daily operating conditions.
What is a closed loop hot water system?
A closed loop hot water system is a sealed or mostly sealed heated-water circuit that circulates through boilers, heat exchangers, or process equipment. Filtration and chemical control protect it the same way they protect chilled-water loops: by managing suspended solids and water chemistry.
What is a loop system in water distribution?
A loop system connects supply and return paths so water can circulate through multiple equipment points rather than dead-ending. That layout improves continuity and makes it easier to apply controlled treatment or filtration at defined points.
What is a closed loop water system?
A closed loop water system is a recirculating circuit that transfers heat without routinely discharging its full flow. It still needs monitoring, chemical treatment, filtration, and regular maintenance to stay reliable.
