Many facility teams struggle with the same core challenges — coils that foul faster than expected, piping systems that leak or lose flow balance, and cooling architectures that can't keep pace with rising rack density. These aren't separate problems. They're connected.
This article covers three infrastructure priorities that determine whether your cooling system performs or fails:
- Filtration that protects coils and airflow from outdoor contaminants
- Piping that moves cooling capacity safely and reliably
- Cooling practices that control heat efficiently across changing loads
The guidance applies whether you're running a traditional air-cooled facility, a chilled-water plant, or a newer liquid-cooled and hybrid environment. Final decisions always come down to heat load, climate, facility design, and uptime requirements.
Key Takeaways
- HVAC performance depends on how filtration, piping, cooling equipment, and controls work together, not on any single component
- Select filters based on your facility's actual contaminant profile, then track pressure drop instead of guessing on a calendar
- Design piping for correct flow, insulation, water quality, and service access without full system shutdowns
- Match air, liquid, or hybrid cooling to current and projected rack density, then confirm performance through commissioning
Understanding Data Center HVAC Systems
Comfort HVAC keeps people happy. Data center HVAC keeps hardware alive. Priorities shift to stable server-inlet conditions, continuous heat removal, air cleanliness, humidity control, redundancy, and maintainability.
The Temperature and Humidity Targets That Matter
ASHRAE's Technical Committee 9.9 sets the industry reference point. The recommended dry-bulb range for server inlets sits at 64.4–80.6°F (18–27°C), paired with a humidity envelope running from a -9°C dew point up to a 15°C dew point, according to ASHRAE's thermal guidelines reference card. Allowable ranges stretch further by equipment class, but most facilities should stay inside the recommended envelope day to day.
Common System Configurations
Most data centers use one of these architectures, or a mix of them:
- CRAC units — Direct-expansion refrigeration for localized or smaller cooling zones
- CRAH units — Tie into a chilled-water plant with chillers, towers or dry coolers, pumps, heat exchangers, and distribution piping
- Liquid-cooled and hybrid systems — Direct-to-chip cold plates, rear-door heat exchangers, or immersion cooling for higher-density racks
Chilled-water plants tie those pieces together. Chillers, towers, pumps, exchangers, and terminals only hold setpoint when the water stays clean and the piping is sized correctly—the foundation for reliable filtration and distribution design.
Filtration Best Practices for Data Center HVAC Systems
Filtration directly affects cooling performance. Dust, cottonwood, insects, leaves, and other outdoor debris load onto coils, restrict airflow, raise fan resistance, and steadily erode heat-transfer performance.
Building a Filter-Selection Framework
Choosing the right filter means evaluating several factors together, not picking based on price alone:
- Intake location: surrounding contaminant sources near outdoor air intakes
- Seasonal load: pollen, cottonwood, insects, and dusty dry stretches
- OEM requirements: air-handler or CRAH manufacturer limits
- Fit and media: dimensions and media type compatible with the housing
- Efficiency vs. pressure drop: rating balanced against acceptable resistance
- Moisture exposure: wet or weather-exposed intake conditions
Practical options range from panel and pleated filters to magnetic cabinet filters and weather-resistant or antimicrobial constructions. Validate any choice against the specific air handler or intake it protects. A higher-efficiency rating will not help if the filter does not fit or creates excessive resistance.
When to Actually Replace a Filter
Calendar-based replacement schedules sound simple, but they are often wrong in practice. Camfil's analysis of filter replacement strategies found that waiting until a filter hits the manufacturer's maximum recommended pressure drop can cost significantly more in energy than replacing earlier.

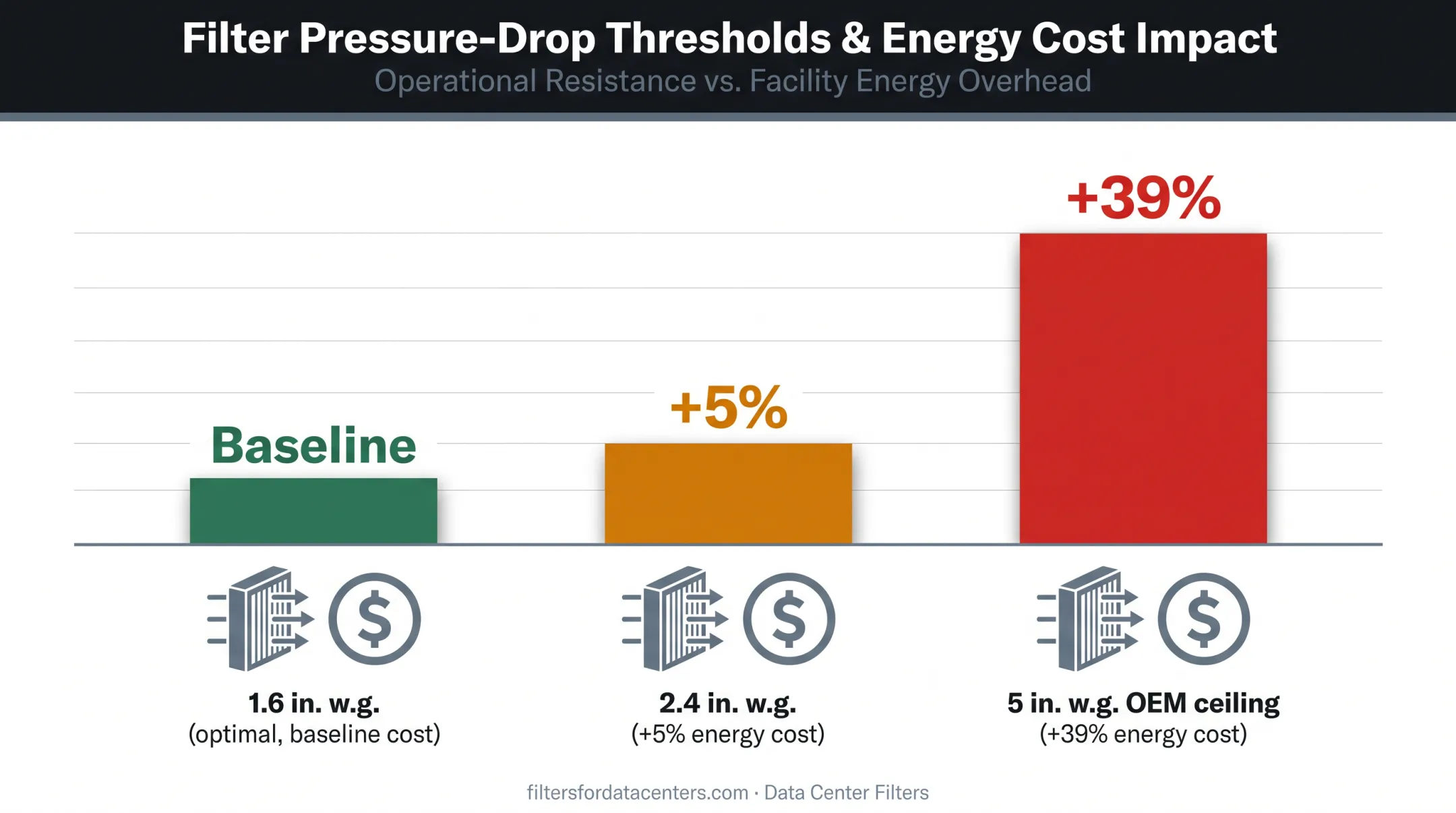

In one example, running filters to a 2.4 in. w.g. limit (instead of an optimal 1.6 in. w.g.) increased operating costs by nearly 5%. Waiting for a 5 in. w.g. OEM ceiling pushed costs up 39%.
Better replacement criteria combine:
- Differential-pressure readings tracked over time
- Visual inspection for visible loading or damage
- Airflow trend data showing gradual restriction
- Seasonal conditions like cottonwood season or dry, dusty stretches
- Manufacturer recommendations as an upper bound, not a target
Data Center Filters builds custom external air-intake systems sized to the actual coil footprint rather than a generic catalog size. Options include magnetic cabinet filters, polypropylene panel filters with dual-layer electrostatic media, and reusable metal filters. The goal is fewer coil cleanings and longer equipment life in outdoor intake conditions.
Piping Best Practices for Data Center HVAC Systems
Piping is the circulatory system of a data center's cooling plant. Chilled-water, condenser-water, refrigerant, and liquid-cooling loops all depend on properly designed piping to move heat between cooling equipment, distribution units, coils, and heat-rejection equipment without losing capacity along the way.
Design Fundamentals
Sound piping design starts with flow and pressure calculations before material selection:
- Calculate required flow and pressure for current load, then size for projected growth
- Limit unnecessary pressure loss through proper pipe sizing and routing
- Build in balancing capability so flow can be adjusted across zones
- Coordinate routing with equipment access and future expansion plans
Stainless steel SCH10 pipe is common in HVAC and cooling-water systems where corrosion resistance has to last the full system life. It is available welded or seamless in 304/304L and 316/316L grades, from 1/2- to 12-inch diameters. Custom fabricated spool pieces route piping through tight mechanical rooms without awkward field welds.
Insulation and Condensation Control
Chilled-water lines at typical supply temperatures need insulation for three reasons:
- Process control
- Condensation control
- Energy conservation
Cold surfaces condense moisture readily. Incorrect or damaged insulation lets that moisture form inside the insulation system, which leads to corrosion and mold over time. Use sealed joints, vapor barriers, and physical protection from mechanical damage, and inspect periodically for degradation.
Reliability Features That Support Maintenance
Leaks, corrosion, scaling, air entrainment, and poorly supported pipe sections are the usual suspects behind unplanned cooling outages. The fix is designing serviceability in from the start:

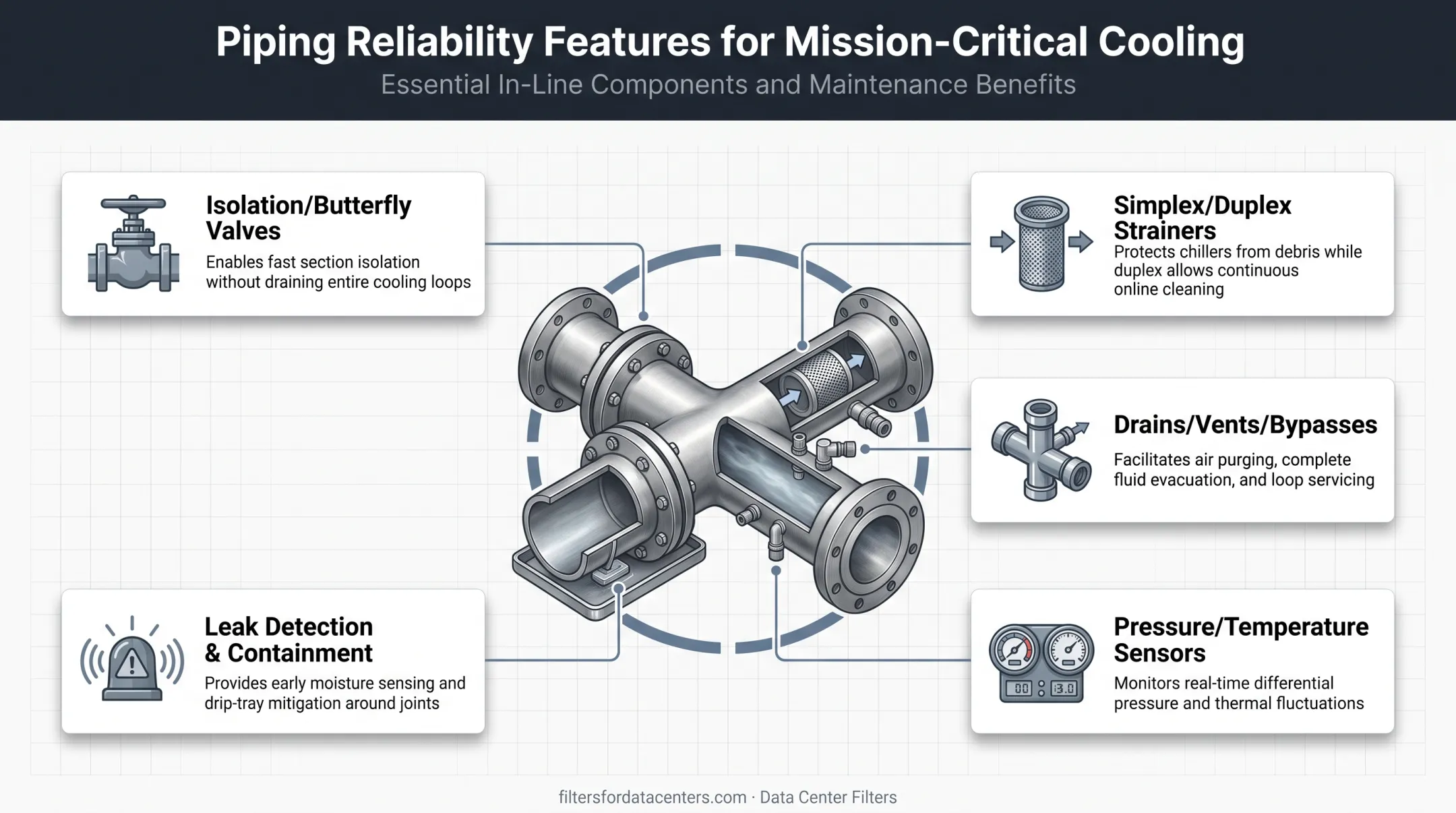

- Isolation valves and butterfly valves at key points, so sections can be worked on without draining the entire loop
- Simplex or duplex strainers to catch particulate before it reaches coils or heat exchangers — duplex configurations let one basket stay in service while the other is cleaned
- Drains, vents, and bypasses for controlled maintenance access
- Pressure and temperature sensors for ongoing visibility
- Leak detection and secondary containment where the risk profile calls for it
Duplex strainers rated up to 600 psig and simplex strainers built to ASME B16.5 flange standards are common choices here. Stainless steel hangers with vibration-reducing inserts matter as well: unsupported piping runs create stress points that eventually fail.
Material and installation requirements fall under codes like ASME B31.9 for building service piping and ASME B31.5 for refrigerant and secondary coolant piping. These are general references only. Always confirm specific mechanical, fire, water-treatment, and electrical requirements with your project engineer and the authority having jurisdiction before finalizing a design.
Cooling and Airflow Best Practices
Choosing among air-cooled, chilled-water, liquid-cooled, and hybrid systems comes down to a few facility-specific factors:
- Current and projected rack density
- Local climate and free-cooling potential
- Water availability and treatment capacity
- What the maintenance team can support long-term
Containment Still Delivers Real Savings
Hot-aisle/cold-aisle layouts remain one of the highest-value, lowest-complexity interventions available. ENERGY STAR reports that proper containment reduces mixing of supply and exhaust air enough to generate cooling savings of 10–35%, while also allowing slower fan speeds and greater use of economizers.
Getting there requires:
- Alternating rows with intakes facing cold aisles, exhausts facing hot aisles
- Blanking panels on every unused rack slot
- Sealed bypass-air openings in raised floors or overhead pathways
- Consistent return-air paths that don't fight the containment design
Redundancy and Efficiency Working Together
Redundancy planning should reflect the facility's actual uptime classification, not a generic default. N+1 adds one extra cooling unit beyond what's needed for full load; 2N mirrors the entire cooling arrangement for full fault tolerance. Neither choice is better in isolation. The right tier depends on risk tolerance and budget.
Efficiency gains can stack on top of whatever redundancy tier you choose:
- Variable-speed drives on pumps and fans
- Optimized temperature and humidity set points
- Economizers where climate and intake air quality allow
Clean intake filtration and protected coils make economizer hours more usable and cut how often filters and coils foul. Real-time monitoring of server-inlet temperature, return-air temperature, humidity, differential pressure, and chilled-water supply/return turns trend data into early warnings. A fouled filter or failing pump usually appears in the trends before it triggers an alarm.
Liquid and hybrid cooling help dense AI and HPC racks, but they add service requirements air-cooled plants do not have:
- Coolant quality standards and filtration
- Leak detection at manifolds and CDUs
- Staff trained on liquid-cooling maintenance procedures
Maintenance, Monitoring, and Commissioning

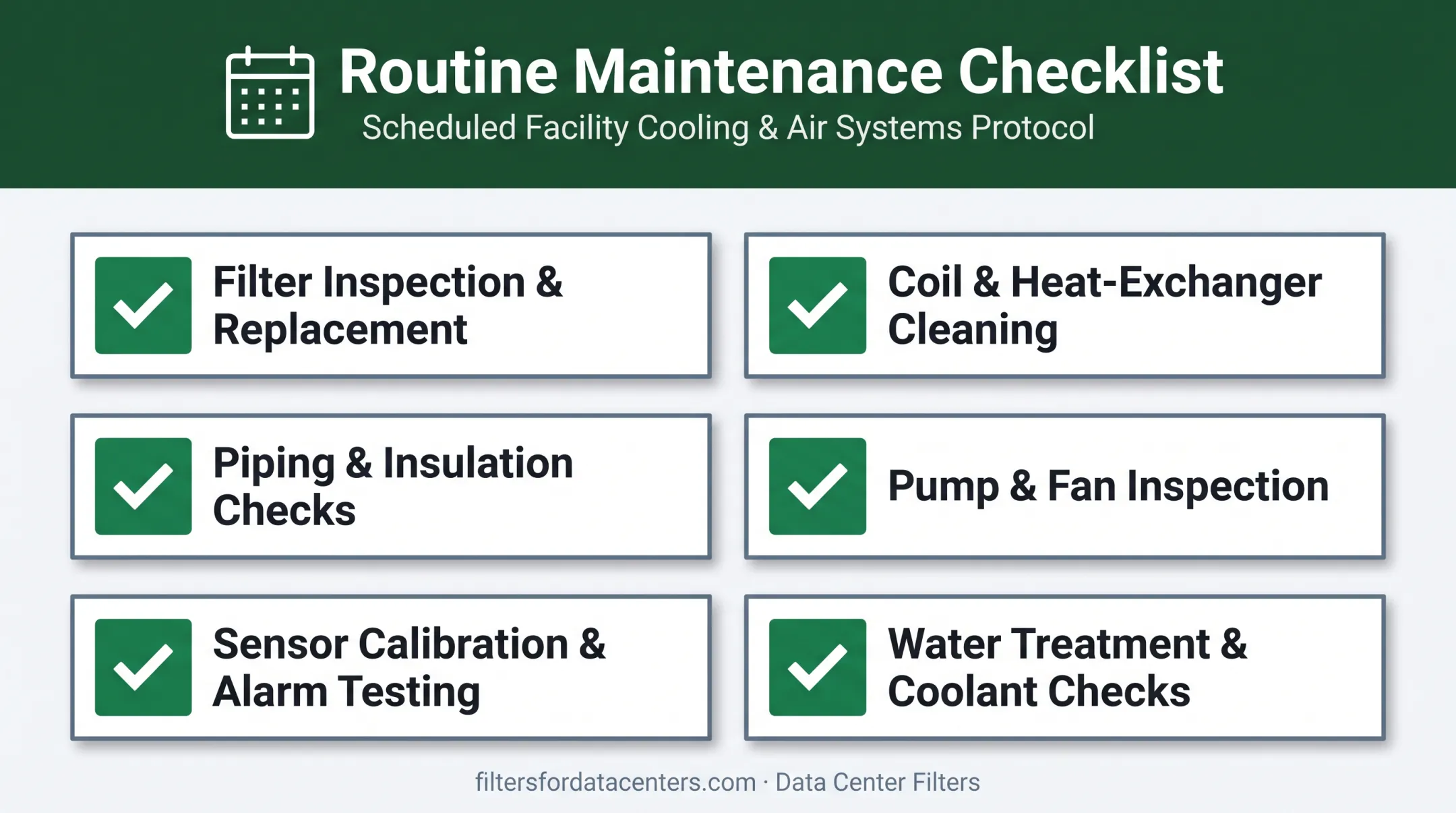

Reliable cooling depends on a disciplined maintenance routine. Cover these checks on a set schedule:
- Filter inspection and replacement based on pressure-drop trends
- Coil and heat-exchanger cleaning
- Piping and insulation checks for moisture or physical damage
- Pump and fan inspection
- Sensor calibration and alarm testing
- Water treatment and refrigerant or coolant checks
Stainless steel industrial pressure gauges rated for 15–200 psi flag restricted filters, abnormal line pressure, and pump problems early, often before a formal alarm. Multi-bag filter housings with single-cover access and quick-opening simplex strainer covers also shorten service time versus older bolted designs.
Commissioning Verifies What Design Promised
Commissioning and retrocommissioning should verify performance under expected operating conditions, including:
- Design flow and airflow direction
- Temperature and humidity control
- Valve operation and sequence of operations
- Redundancy behavior during failover checks
Temporary cone strainers protect new equipment during startup, flushing, and hydrostatic testing, then come out once the system is clean.
Keep records of filter specifications, pressure-drop baselines, piping diagrams, valve locations, and maintenance intervals so teams can spot drift before it becomes an uptime risk.
For hands-on intake support, Data Center Filters’ AFF Field Services provides on-site filtration measurement, installation, and maintenance. HVAC, piping, controls, and electrical work outside that scope should go to qualified specialists.
Frequently Asked Questions
What type of HVAC system do data centers use?
Data centers may use CRAC, CRAH, chilled-water, air-cooled, liquid-cooled, or hybrid systems, depending on heat density, facility size, climate, redundancy needs, and expansion plans. Most facilities combine more than one approach as loads grow.
Is HVAC needed in a data center?
Yes. Specialized HVAC or thermal-management systems are essential to remove server heat, control humidity and airflow, limit contaminants, and protect equipment from overheating and environmental damage.
How often should data center HVAC filters be changed?
Replacement timing depends on contaminant loading, pressure drop, airflow, filter type, season, and manufacturer guidance. Monitor actual filter condition rather than relying on a single universal schedule.
What piping is used in data center cooling systems?
Common arrangements include chilled-water, condenser-water, refrigerant, and liquid-cooling piping, often stainless steel for corrosion resistance. Material, insulation, sizing, and code requirements depend on the specific system design.
How can data centers improve HVAC cooling efficiency?
Combine airflow containment, clean filters and coils, correct pipe flow and insulation, variable-speed equipment, and appropriate set points. Add economizers where suitable and real-time monitoring to catch problems before they affect uptime.
