Introduction
An open cooling water system never stops touching the outside world. Every gallon that cycles through a cooling tower picks up dust, pollen, corrosion byproducts, and whatever biological material happens to be floating through the air that day.
That exposure creates real risk for heat-transfer surfaces and overall cooling capacity. Left unmanaged, suspended solids and scale can erode the performance data centers depend on around the clock.
Filtration is only one control layer. It works alongside chemical treatment, blowdown, makeup-water control, and routine inspection, not instead of them.
This article covers how open systems operate, where filtration fits into the water circuit, and how to select the right equipment. It also explains why water-side filtration is a different job from external air-intake filtration.
Key Takeaways
- Open systems expose cooling water to air in evaporative towers; closed systems keep process fluid sealed off.
- Filtration cuts suspended solids and fouling risk but cannot control dissolved minerals, corrosion, or biology alone.
- Select equipment for water chemistry, flow rate, pressure-drop limits, and facility redundancy needs.
- Air-intake filtration protects outdoor coils from debris and complements water-side filtration without replacing it.
Understanding Open Cooling Water Systems
In an open recirculating system, warm water leaves the condenser or process load and travels to the cooling tower. There, it contacts moving air across the fill media, sheds heat partly through evaporation, and collects in the basin before heading back out to do the job again.

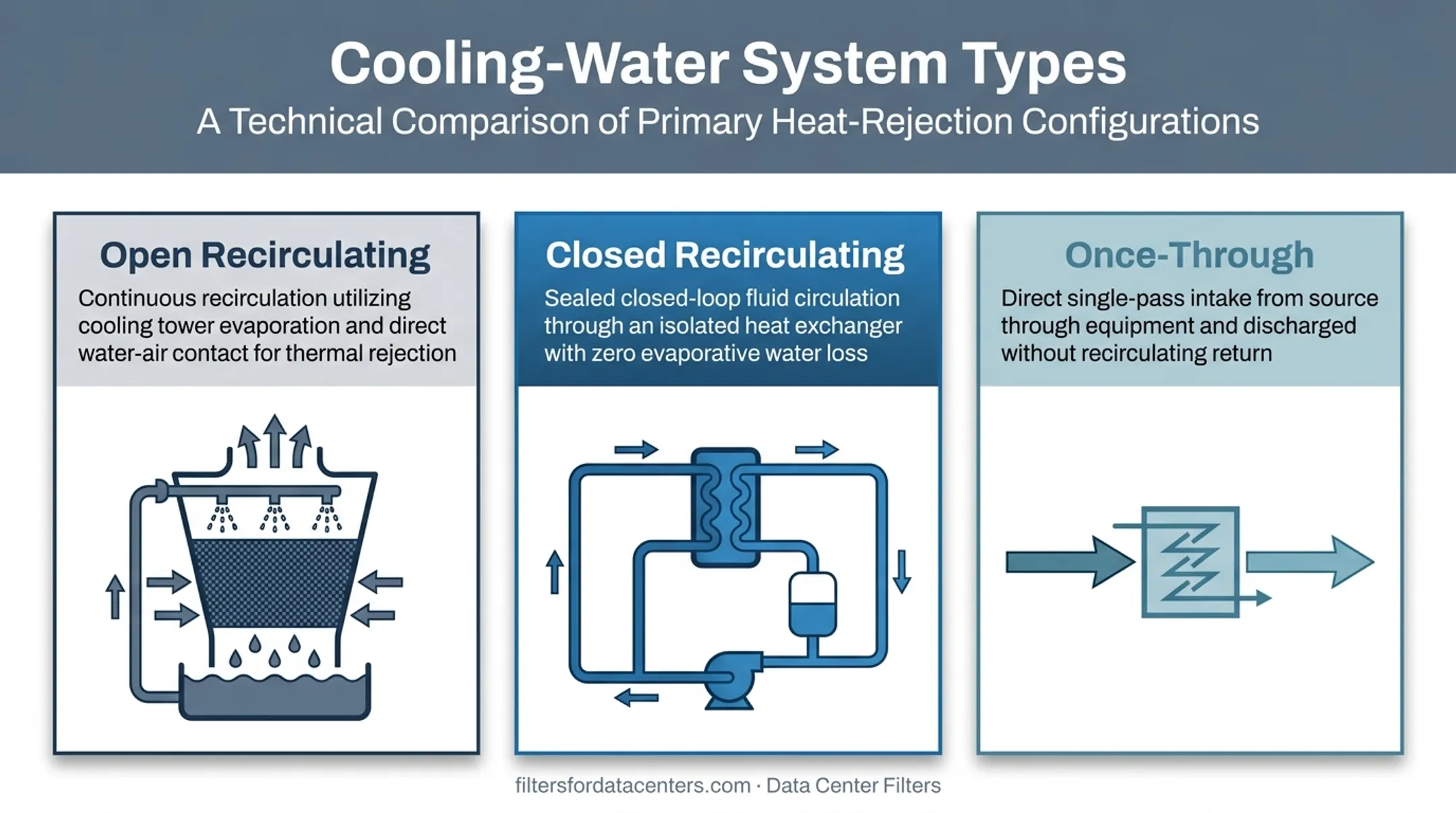

Three Configurations Worth Distinguishing
Cooling-water systems generally fall into one of three categories:
- Open recirculating (evaporative): Water repeatedly contacts air, typically through a cooling tower's fill and basin design.
- Closed recirculating: Water or a water-glycol mix stays in a sealed loop, rejecting heat through a heat exchanger, dry cooler, or closed-circuit tower.
- Once-through: Water is drawn from a source, passed through the heat load a single time, then discharged rather than reused.
ASHRAE's guidance on condenser water systems classifies condenser-water systems along these same lines, once-through versus recirculating, because the contamination and treatment demands differ substantially between them.
Where Filtration Fits Into the Picture
Open recirculating systems are the focus here because they take on far more contamination than sealed loops. Filtration has to protect several points in that circuit:
- Basin and makeup-water connection
- Pumps and distribution piping
- Heat exchangers and fill
- Strainers and side-stream filter loops
- Blowdown line
Airborne dust, construction debris, corrosion products, scale fragments, and biological material enter through tower air and makeup water. Closed circuits largely avoid that exposure.
Fouled fill or heat exchangers cut heat transfer, raise pressure drop, increase pump load, and drive up maintenance. In a data center, that means less stable cooling capacity when uptime matters most.
Why Filtration Matters in an Open Cooling Water System
Mechanical filtration and water treatment solve different problems. Understanding the difference matters when you're specifying equipment.
- Mechanical filtration removes or separates particulate matter, suspended solids, and undissolved debris.
- Chemical treatment addresses corrosion, scale formation, and biological growth.
- Softening, demineralization, and reverse osmosis target dissolved constituents when the water-treatment design calls for it.
Common Contaminants and What They Do
Each contaminant category demands a slightly different response:
- Sediment abrades pump seals and valve components
- Organic debris feeds fouling and biological growth
- Corrosion products recirculate through equipment and cause further wear
- Scale particles obstruct passages and cut heat-transfer efficiency
Filtration alone was never meant to carry the whole load.

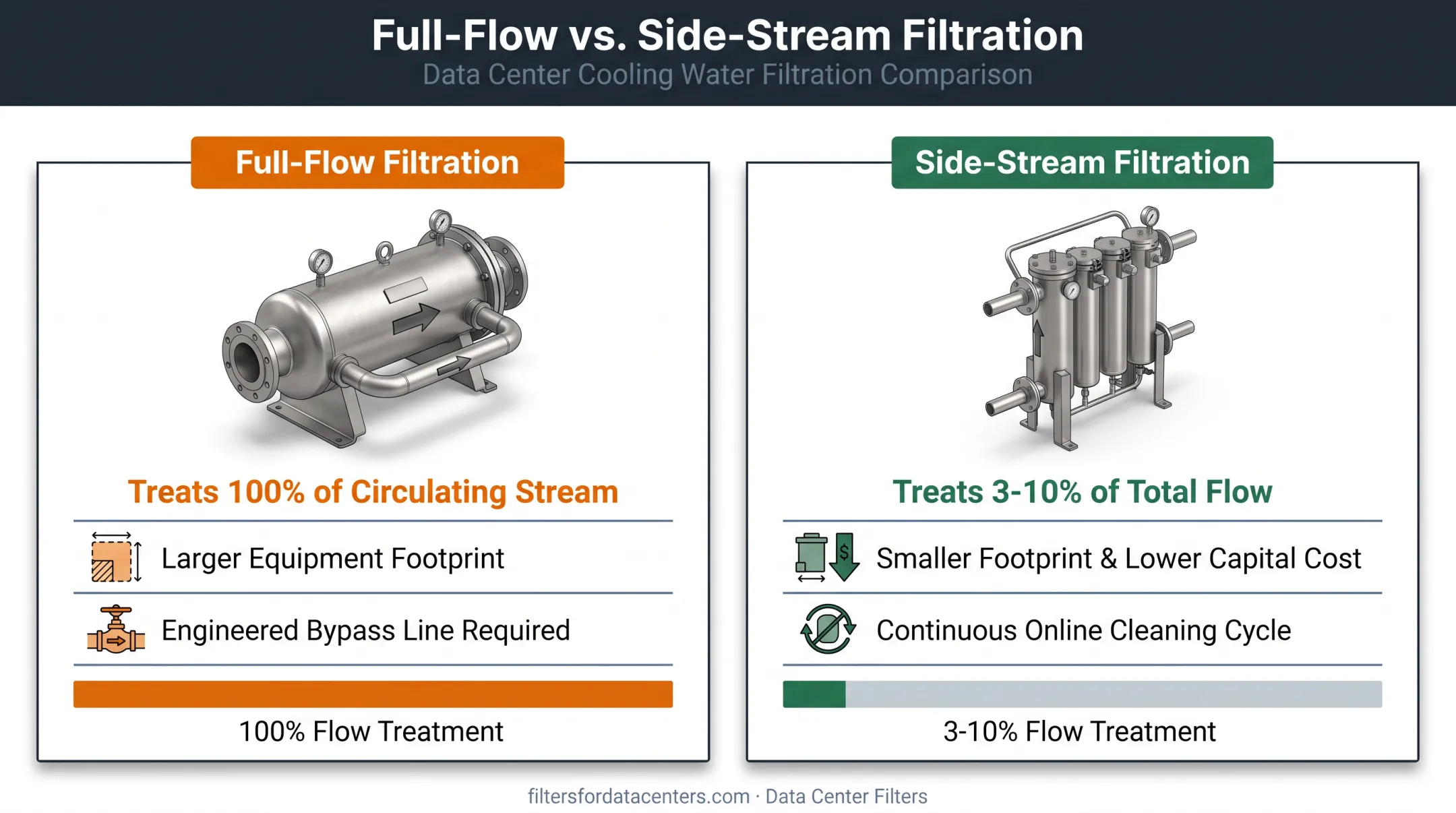

Full-Flow vs. Side-Stream Filtration
Full-flow filtration treats the entire circulating stream. It works, but it usually requires larger equipment, more pressure capacity, and a carefully engineered bypass for redundancy.
Side-stream filtration takes a different path: it continuously cleans a smaller portion of flow. The U.S. Department of Energy's Federal Energy Management Program reports side-stream sizing typically falls between 3–10% of total flow, occasionally up to 20%, with full-system turnover roughly once per hour as a common design target.
That same guidance notes that sizing below 3% has been linked to fouling throughout the loop. Undersizing is a real risk, not just a theoretical one.
For most data center cooling loops, side-stream setups built around high-flow filter cartridges or bag filter housings—the same solids-control hardware Data Center Filters supplies for open loops—deliver practical protection without the footprint full-flow systems demand.
Filtration Placement and Monitoring
Filtration can be positioned at the basin outlet, pump discharge, a dedicated heat-exchanger protection circuit, a side-stream loop, or the makeup-water line. Final placement should follow system hydraulics and the equipment manufacturer's requirements, not a generic template.
Filtration also supports, but never replaces, ongoing water-quality monitoring. According to EPA's WaterSense at Work guidance, conductivity, pH, hardness, and microbial indicators are all critical chemistry parameters that filtration equipment alone cannot address.
For data centers specifically, operations need more than a single filter point:
- Redundant cooling paths so one train can stay online
- Filtration maintenance without pulling critical cooling offline
- Alarm integration with the building-management system
- A documented response plan when water quality starts to drift
How to Choose and Implement Filtration for Data Center Cooling Water
Before specifying anything, build a site picture.
Site-Assessment Checklist
- Document water source, tower type, circulating-flow rate, and operating temperatures
- Record basin volume, makeup-water quality, and observed contaminants
- Note existing strainers and available installation space
- Review filter plugging frequency, basin-cleaning records, and differential-pressure trends
Matching Technology to Contaminant Profile
Different filtration technologies handle different particle sizes and loading conditions. A few reference points from common configurations:
| Technology | Micron Range | Notes |
|---|---|---|
| Mesh filter bags | 1–1,500 micron | Surface filtration, some reusable options |
| Felt filter bags | 1–200 micron | Depth filtration with strong dirt-holding capacity |
| High flow filter cartridges | 0.5–100 micron | Polypropylene media, 20"–80" lengths |
High-flow filter cartridges typically call for change-out around 30 psi differential pressure, giving operators a clear trigger instead of a guessing game.
Always verify ratings and removal performance against manufacturer data and independently verified engineering guidance. No single technology fits every basin.

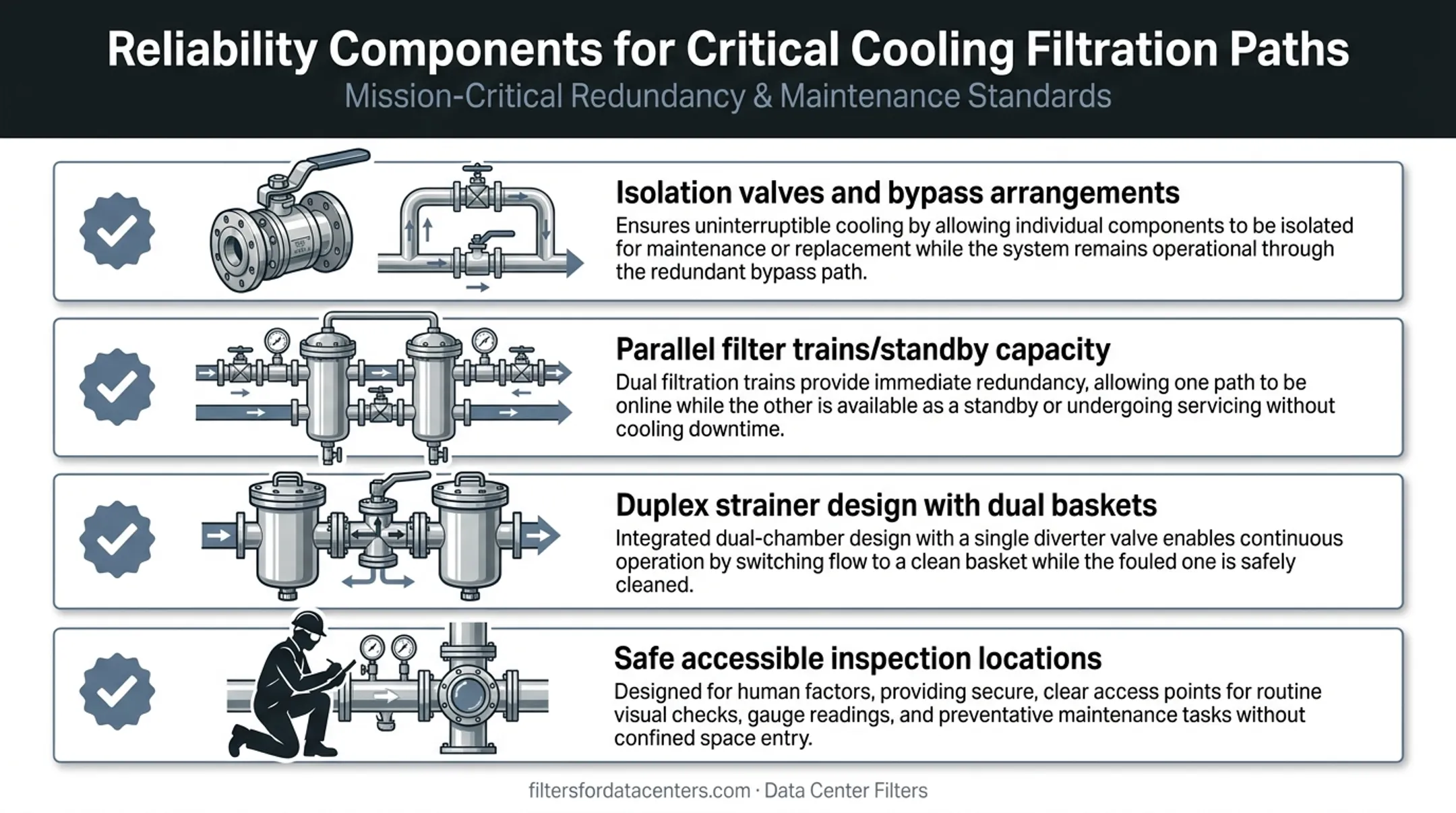

Building In Reliability
Single points of failure have no place in a critical cooling path. That means:
- Isolation valves and bypass arrangements for service without shutdown
- Parallel filter trains or standby capacity where redundancy is required
- Duplex strainer designs, such as the Eaton 53BTX, which use dual baskets so one side can be cleaned while the other stays in service
- Safe, accessible locations for routine inspection
Simplex strainers work fine in less critical circuits, but for anything protecting a primary cooling path, duplex configurations are worth the added cost.
Commissioning and Ongoing Operation
At startup, establish baseline flow and pressure readings along with clean-filter differential pressure. Stainless steel pressure gauges rated for the system's working pressure range give early warning of abnormal flow restrictions or pump issues long before a failure becomes visible elsewhere.
From there, build an operating plan covering inspection frequency, differential-pressure logging, filter cleaning or replacement schedules, and clear escalation steps when readings exceed approved limits.
Water-side filtration protects what's inside the loop. It does not address outdoor air intake.
Data Center Filters offers custom systems that stop cottonwood, dust, insects, leaves, and other airborne debris from reaching outdoor cooling equipment and coils. That external layer complements a water-side program rather than replacing it. For multi-site or hard-to-access facilities, AFF Field Services provides on-site measurement, installation, and maintenance on the air-intake side.
Monitoring, Maintenance, and Troubleshooting
Routine checks catch problems before they become downtime events. Watch for:
- Basin sediment buildup and clogged strainers
- Fouled fill or blocked distribution nozzles
- Rising filter differential pressure or abnormal pump behavior
- Reduced flow, shifting water chemistry, or visible biological growth
Reading the Symptoms
Rising differential pressure often points to solids loading, undersized filter capacity, or a stalled backwash cycle. Strainer baskets typically warrant cleaning around 15-20 psi ΔP, depending on configuration.
Other common symptoms map to different root causes:
- Reduced heat-transfer performance: Fouling, scale accumulation, inadequate flow, or a chemistry imbalance rather than filtration failure alone
- Repeated filter plugging: Construction debris, corrosion activity, or organic loading that outpaces current pretreatment
None of these symptoms have a single definitive cause. Coordinate filtration maintenance with your water-treatment provider, cooling-tower service team, and equipment manufacturers before changing chemical programs or operating limits. Laboratory testing and engineering review should guide those decisions.
Frequently Asked Questions
What is an open-cycle cooling water system?
An open-cycle or open-recirculating system exposes circulating water directly to air, usually inside an evaporative cooling tower. That direct air contact is why filtration, water treatment, and ongoing monitoring are necessary.
What are the two types of water cooling systems?
Open-loop systems allow water to contact air directly, while closed-loop systems keep the process fluid sealed inside a circuit. Closed-loop systems transfer heat through a heat exchanger rather than through evaporation.
What are closed cooling water systems?
Closed cooling water systems circulate sealed water or water-glycol mixtures with far less exposure to airborne contamination. They still require active management of corrosion, dissolved contaminants, and equipment-specific water chemistry.
Do closed-loop water systems work?
Yes, closed-loop systems provide reliable cooling when properly designed and maintained. Performance still depends on heat load, fluid selection, heat-exchanger sizing, and site-specific redundancy planning.
