Introduction
Servers get the credit, but piping keeps them running. Every chilled-water loop, coolant distribution unit, and direct-to-chip line depends on pipe, valves, and fittings. Those components have to hold up under continuous operation, shifting heat loads, and years of thermal cycling.
Selecting the right piping isn't simple. Engineers have to weigh pressure, temperature, fluid chemistry, leak risk, and future capacity all at once. Get one variable wrong, and you're looking at corrosion, condensation damage, or an unplanned shutdown.
This guide covers the pieces that matter: cooling-system types, material and component selection, design considerations, installation practices, and ongoing monitoring. The goal is a practical reference, not a substitute for project-specific engineering.
Key Takeaways
- No single piping material works for every loop; fluid, pressure, temperature, and chemistry drive the decision
- Liquid-cooled systems need coordinated design across piping, CDUs, pumps, valves, and controls
- Corrosion, condensation, thermal expansion, and poor supports are common reliability threats
- Qualified engineers should confirm codes, ASHRAE guidance, and commissioning requirements before construction begins
How Piping Supports Different Data Center Cooling Systems
Piping does different jobs depending on how a facility cools its equipment. In air-cooled rooms, pipe mainly moves chilled water to CRAC or CRAH units and removes condensate. In direct-liquid-cooling (DLC) systems, piping carries coolant straight to cold plates or immersion tanks. Hybrid facilities run both simultaneously, so piping must meet two different demand sets at once.
Most data centers still lean on air cooling. Uptime Institute's 2025 survey found that 75% of respondents use perimeter air cooling, while 22% report direct liquid cooling — categories that overlap as facilities adopt hybrid approaches. High rack density remains the top driver pushing operators toward liquid cooling.
Facility Water vs. Technology Cooling Loops
Two loops typically exist in liquid-cooled environments:
- Facility Water System (FWS) — often site- or campus-wide and owned by building or facilities staff
- Technology Cooling System (TCS) — data-center-specific and tied to a defined set of IT equipment

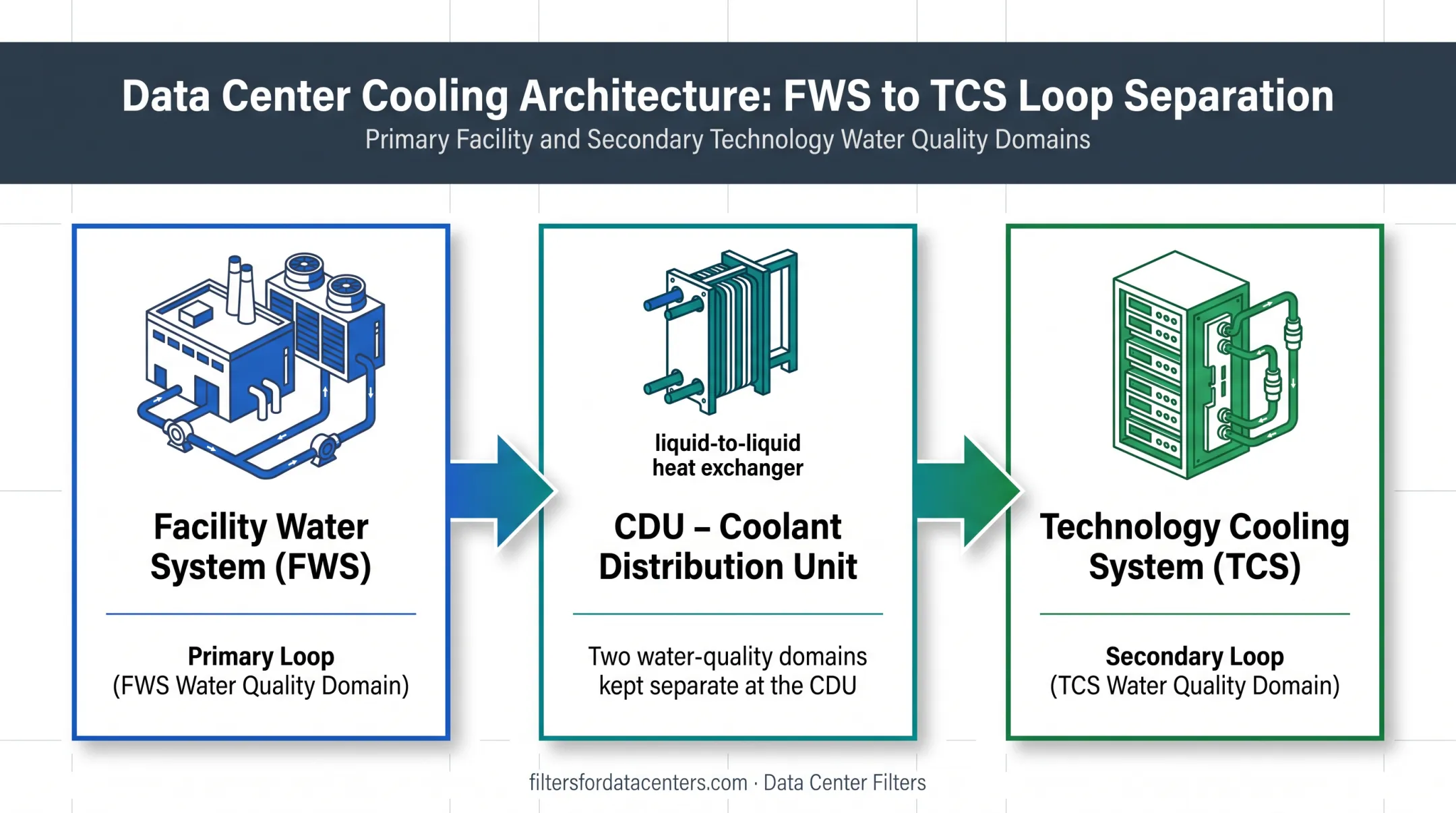

A coolant distribution unit (CDU) sits between them. ASHRAE's TC9.9 guidance on water-cooled servers explains that the CDU is a liquid-to-liquid heat exchanger: it moves heat from the TCS coolant into the FWS and keeps the two water-quality domains separate.
That separation matters. TCS water often needs tighter filtration to protect fine cold-plate channels, while FWS water quality can vary more.
Matching Piping Priorities to Facility Type
Enterprise, colocation, hyperscale, edge, and modular facilities don't all use the same cooling method — but their piping priorities do shift based on scale and mission:
- Enterprise data centers often rank maintainability and simplicity above aggressive density
- Colocation facilities need flexible, sectionalized piping so tenants can be serviced independently
- Hyperscale sites push high flow rates and redundancy across large loop networks
- Edge and modular facilities favor compact, prefabricated runs that ship and install quickly
No facility type is locked to one cooling method. Piping design still has to weight density, redundancy, footprint, scalability, and service isolation for the mission at hand.
Data Center Cooling Piping Materials and Components
Material selection comes down to a handful of variables: operating temperature, design pressure, flow rate, coolant chemistry, corrosion resistance, thermal expansion behavior, installation method, and lifecycle cost. No material wins on every criterion. The right choice depends on the specific loop.
Comparing Common Piping Materials
| Material | Typical Strengths | Watch For |
|---|---|---|
| Stainless steel (304/304L, 316/316L) | Corrosion resistance, high-temperature capability, long service life | Higher upfront cost; welding or press joining needed |
| Copper | Proven thermal performance, established joining methods | Cost volatility; galvanic risk with dissimilar metals |
| Carbon steel | Strong pressure ratings, widely available | Corrosion risk without proper treatment or lining |
| PEX | Flexible, fast installation, good for smaller branch lines | Pressure/temperature limits drop as temperature rises |
| HDPE | Resists corrosion, rot, and biological growth | Requires fusion joining; support spacing differs from metal pipe |
| Polypropylene (PP-R/PP-RCT) | Chemical resistance, heat-fused joints | Wall thickness and support spacing depend on temperature differential |
Stainless steel SCH10 pipe, for example, is commonly specified for cooling-water systems in 304/304L and 316/316L grades, available from ½-inch up to 12-inch outside diameters in welded or seamless construction.
Schedule 10 wall thickness keeps the pipe lighter than heavier schedules while still meeting ASME B36.19M dimensional standards. Match that wall schedule to your project's pressure class before you finalize the spec.
PEX ratings drop as temperature climbs. One manufacturer's submittal lists 160 psi at 73°F, dropping to 100 psi at 180°F and 80 psi at 200°F. A single "PEX-rated" pressure number rarely tells the whole story.
HDPE has its own advantages. According to the Plastics Pipe Institute's Handbook of Polyethylene Pipe, PE pipe doesn't rust, pit, corrode, or support biological growth, with a typical pressure-service range of 0 to 140°F.
Components That Work Alongside the Pipe
Pipe alone doesn't make a system. The supporting cast includes:
- Fittings, flanges, and press connections
- Isolation and control valves, plus check valves
- Strainers and filters (simplex, duplex, or temporary cone styles)
- Manifolds, pumps, and heat exchangers
- Flexible hoses and dripless or dry-break couplings
Strainers deserve particular attention in cooling loops. Simplex strainers, for instance, are commonly specified for pump, heat-exchanger, chilled-water, and closed-loop systems, typically in 3/8- to 8-inch sizes. Duplex strainers with dual baskets and a manual flow diverter allow continuous operation during basket cleaning, which matters where downtime isn't an option.
Custom stainless steel spool pieces, fabricated to project drawings with tight dimensional tolerances, can incorporate elbows, tees, reducers, and valves into a single shop-built assembly. Prefabricating these in a controlled shop environment cuts field welding time and reduces the chance of fit-up errors on-site.
Insulation and Vapor Barriers
Cold chilled-water piping sweats without proper insulation. Damaged, incomplete, or poorly sealed insulation near IT and electrical equipment creates real risk: dripping condensate doesn't mix well with server racks or switchgear.
Insulation guidance for chilled-water piping (typically 33–60°F) calls for continuous coverage through supports and fittings, sealed longitudinal and circumferential joints, and vapor dams at terminations and flange connections. Skipping any of these details tends to show up later as a moisture problem.
A Quick Decision Checklist

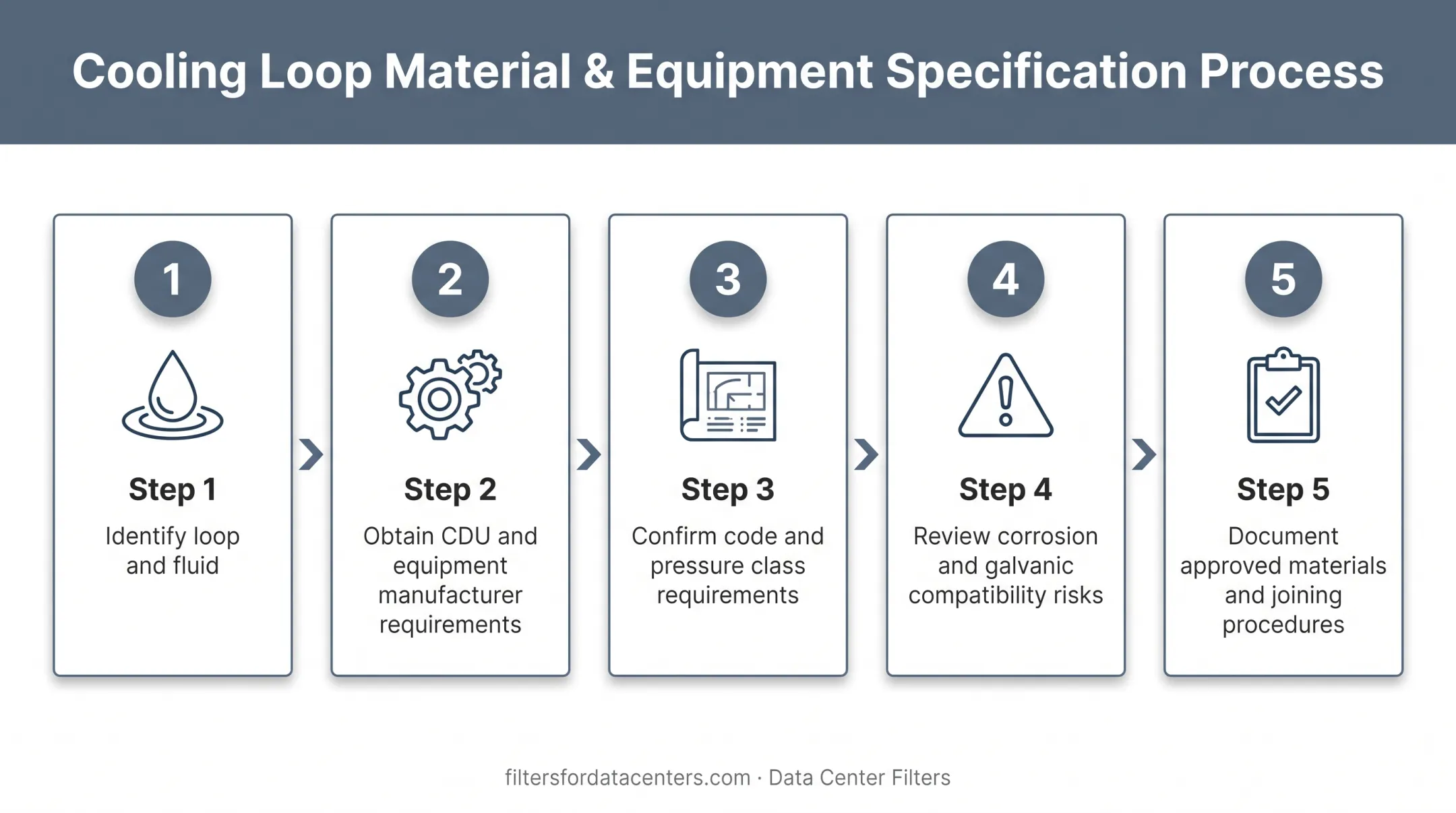

Before specifying material, walk through these steps:
- Identify the loop and fluid (FWS or TCS, water or glycol blend)
- Obtain CDU and cooling-equipment manufacturer requirements
- Confirm code and pressure class requirements
- Review corrosion and galvanic compatibility risks
- Document approved materials and joining procedures
Data Center Piping Design Considerations
Good piping design starts with real numbers, not assumptions. Pipe sizing and routing should reflect project-specific inputs:
- Heat load and required flow rate
- Supply and return temperatures
- Allowable pressure drop and pump capacity
- Velocity limits and room for future capacity
Generic sizing tables can steer you wrong.
Redundancy and Maintainability
Reliable systems build in the ability to service one section without shutting down the whole loop. Common approaches include:
- Separated loops for different equipment zones
- Standby pumps or alternate cooling paths
- Isolation valves and bypasses at key junctions
- Sectional shutoffs that limit the blast radius of any single repair
Leak Prevention
Leaks near IT or electrical equipment are costly in ways that go beyond the repair itself. Reduce the risk by:
- Routing piping away from racks and electrical gear where practical
- Minimizing unnecessary joints
- Using compatible seals and couplings rated for the fluid and pressure
- Providing containment or drainage where leaks would cause the most damage
- Coordinating leak detection with building-management or facility-monitoring systems
Thermal Expansion, Vibration, and Transient Loads
Pipe moves as temperature changes, and pumps introduce vibration that travels through both the structure and the fluid. Anchors, guides, supports, expansion loops, and vibration isolation all help manage these forces. Flexible hoses simplify service connections, but they need correct bend radius, restraint, and manufacturer-approved support. Treat that hardware as part of the design, not an afterthought bolted on during installation.
Hangers matter more than they get credit for. Block-style and stainless steel hanger systems designed for thermal-expansion accommodation typically support temperatures up to 300–320°F and loads ranging from roughly 100 to over 1,000 pounds per hanger, depending on configuration.

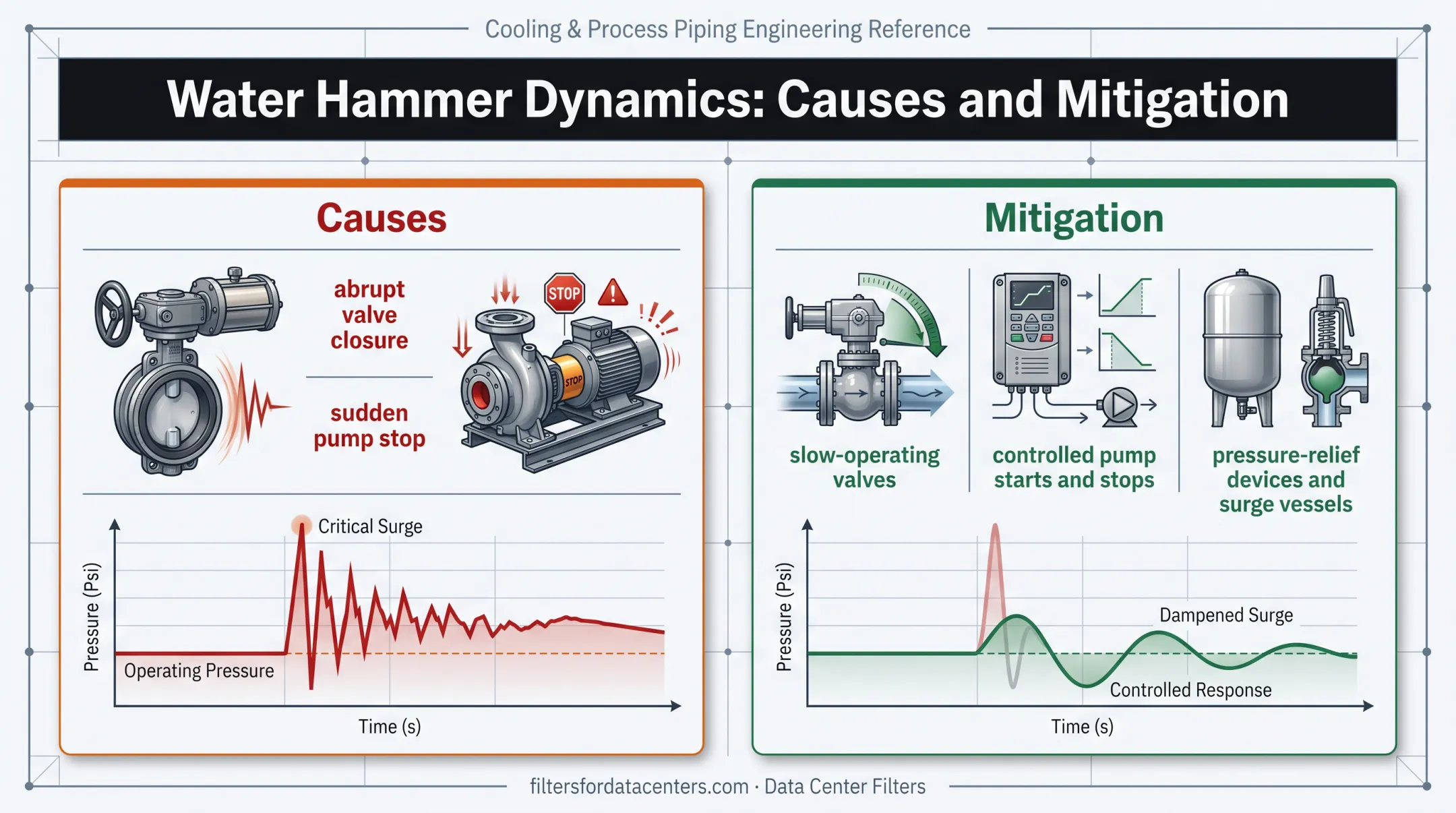

Transient conditions can exceed normal operating loads. ASPE describes water hammer as a pressure spike caused by sudden flow-rate changes. Abrupt valve closure and sudden pump stops are the usual culprits.
Mitigation typically includes:
- Slow-operating valves
- Controlled pump starts and stops
- Pressure-relief devices and surge vessels
Normal operating values alone will not show what happens during a pump trip or emergency shutdown. That is where transient or pipe-stress analysis earns its keep.
Data Center Piping Best Practices

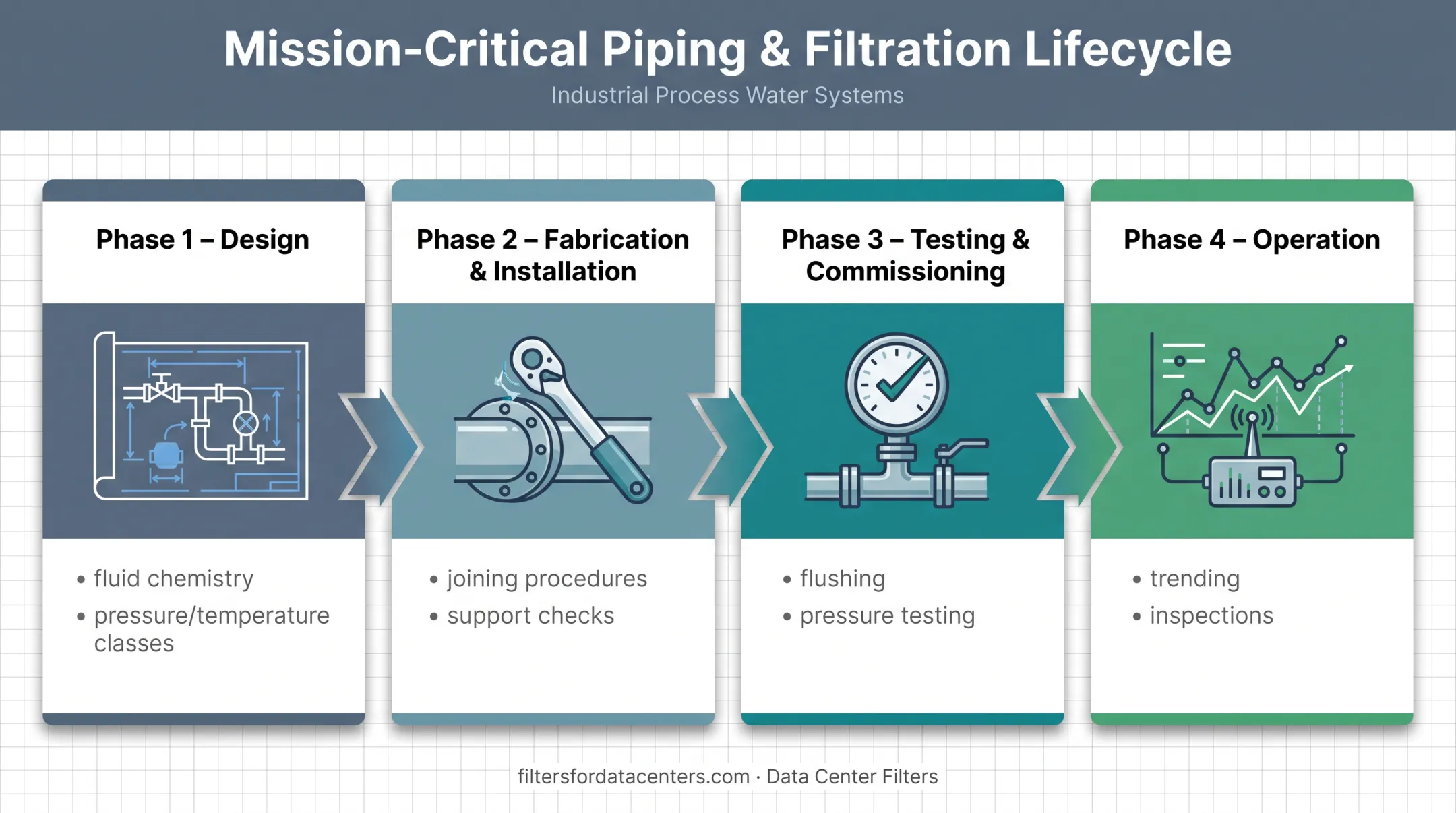

Reliable piping is a lifecycle discipline that runs from design through daily operations.
During design: Document these items before fabrication starts:
- Fluid chemistry and material compatibility
- Pressure and temperature classes
- Insulation requirements and valve specifications
- Support locations, access clearances, and leak-detection strategy
During fabrication and installation:
- Require qualified joining procedures for every connection type
- Keep pipe ends clean and capped until final connection
- Verify alignment and support installation before covering with insulation
- Protect open piping from construction debris
- Handle insulation and vapor barriers carefully; damage here creates problems later
During testing and commissioning: Complete these steps before the system goes live:
- Flushing and cleaning
- Pressure testing and water-quality verification
- Control-sequence testing, flow balancing, and sensor calibration
One common commissioning spec calls for a minimum four-hour hydrostatic test with no leakage beyond localized pump or valve packing. Confirm the project and code requirements for your test methods; they vary by jurisdiction and spec.
During operation: Schedule regular inspection of joints, valves, supports, insulation, strainers, flexible connections, and leak-detection equipment. Trend pressure, temperature, flow, and water quality over time. A slow drift often signals a problem before it becomes an alarm.
Filtration as a Complementary Layer
Piping design, insulation, and water treatment protect the loop from the inside. Air-cooled equipment also faces outside threats: cottonwood, dust, insects, leaves, and other airborne debris that restrict airflow or foul coils.
External air-intake filtration doesn't replace good piping practice, but it addresses a different failure point. Data Center Filters offers custom external air-intake filtration built for mission-critical facilities, along with AFF Field Services for on-site measurement, installation, and maintenance support. Treat it as a separate line item in piping and cooling-system planning, especially at sites with heavy seasonal debris.
Conclusion
Reliable data center piping depends on many decisions working together:
- Material selection and component compatibility
- Hydraulic design and thermal-movement control
- Corrosion control, leak prevention, and commissioning rigor
Bring the cooling-equipment manufacturer, mechanical engineer, commissioning team, water-treatment specialist, and qualified piping professionals in early. Retrofitting good practice after install costs far more than designing it in from day one.
Where air-cooled equipment faces outdoor debris, treat external air-intake filtration as a separate, complementary layer of protection.
Frequently Asked Questions
What type of piping is used in data centers?
Data centers use stainless steel, copper, carbon steel, engineered plastics, or other approved systems based on the loop, coolant chemistry, pressure, temperature, and OEM specs. There is no single standard material.
What is the difference between facilities-water piping and technology-cooling piping?
Facility water systems (FWS) are building- or campus-wide loops run by facilities teams. Technology cooling systems (TCS) serve IT gear and usually connect through a CDU or heat exchanger that keeps the two water-quality domains separate.
Is stainless steel always the best piping material for a data center?
Stainless steel offers strong corrosion resistance and durability, but the right choice still depends on fluid compatibility, pressure, temperature, joining method, cost, and project specs. Other materials can fit some loops better.
How can data centers prevent cooling-pipe leaks?
Route piping away from critical gear, use compatible seals and quality connections, add isolation valves, pressure-test the system, and tie leak detection into facility monitoring. Scheduled inspections catch weak points before they fail.
Why is insulation important on data center cooling pipes?
Properly sealed insulation and vapor barriers limit condensation, reduce energy loss, and prevent moisture damage near sensitive electrical and IT equipment. Gaps or damage in insulation often show up later as unexplained moisture issues.
What should be monitored in a data center cooling-piping system?
Track supply/return temperature, flow, pressure, water chemistry, pump and valve status, filter or strainer condition, condensation, and leak alarms. Trend data usually flags declining performance before a hard alarm hits.
