8-Inch Strainer Baskets for Data Center Cooling Systems

These strainer baskets are manufactured from 316 stainless steel, providing high mechanical strength and corrosion resistance for fluid services. Available surface finishes include mill, polished, and passivated options. Metallic materials can be supplied in accordance with applicable ASTM material standards, accompanied by dimensional inspection, weld inspection, and material traceability documentation.

Basket screens can be configured with woven wire mesh ranging from 20 to 200 mesh and perforation diameters from 1/32 inch to 3/4 inch. This allows facilities to select an open area between approximately 20% and 60%, balancing particle control efficiency against system flow requirements across nominal housing sizes from 2 to 24 inches.

Depending on the specific configuration and housing build, these 316 stainless steel strainer baskets operate at working pressures up to 600 PSIG and operating temperatures up to 500°F (260°C). They support a maximum operating differential pressure of up to 50 psi (3.4 bar) for robust containment during operation.

Routine maintenance is recommended when the differential pressure across the strainer reaches 15 to 20 psi ΔP, depending on the configuration. Because the baskets feature a durable, rigid metal design, they are completely reusable, allowing facility operators to wash out captured debris and return them to service without continuous filter replacement.

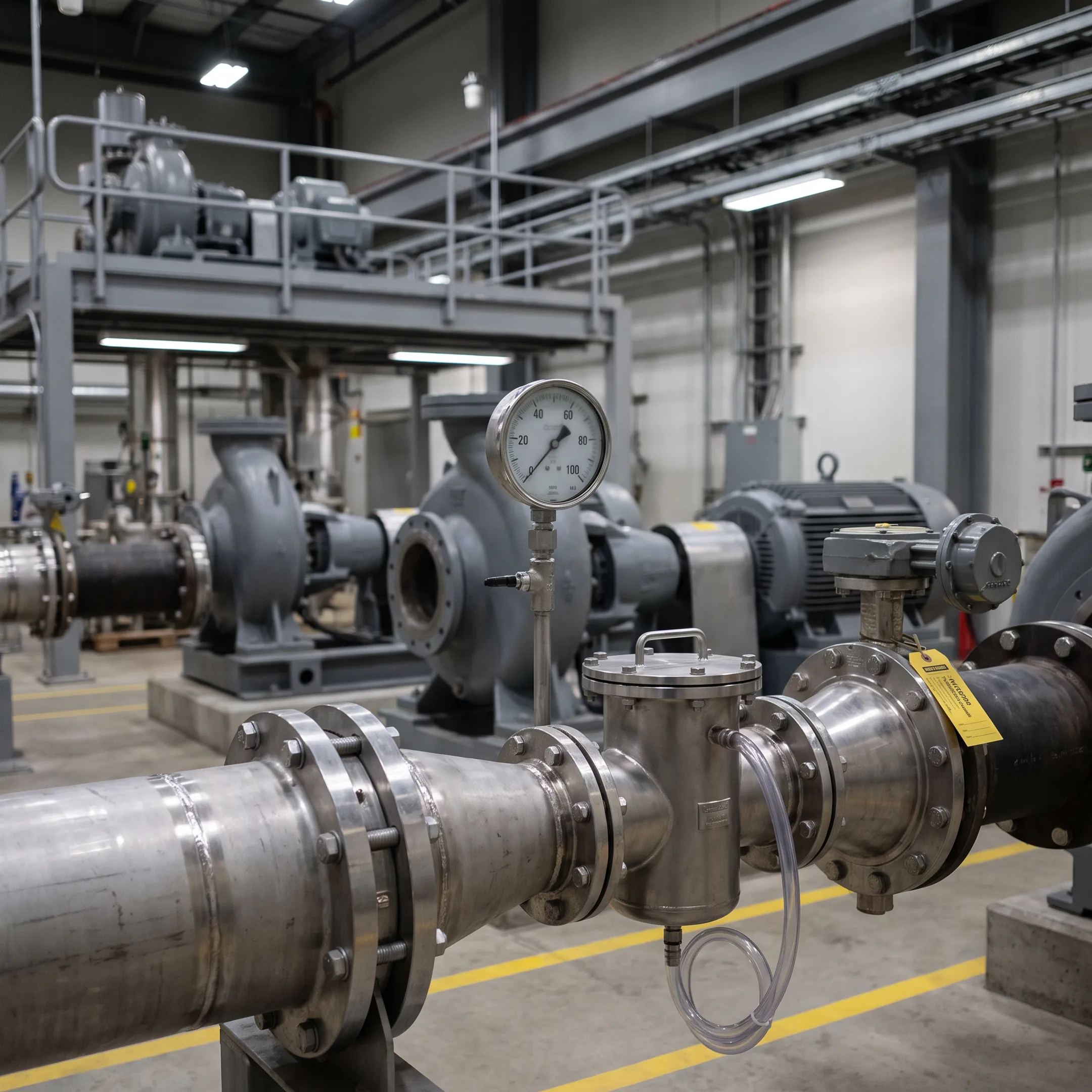

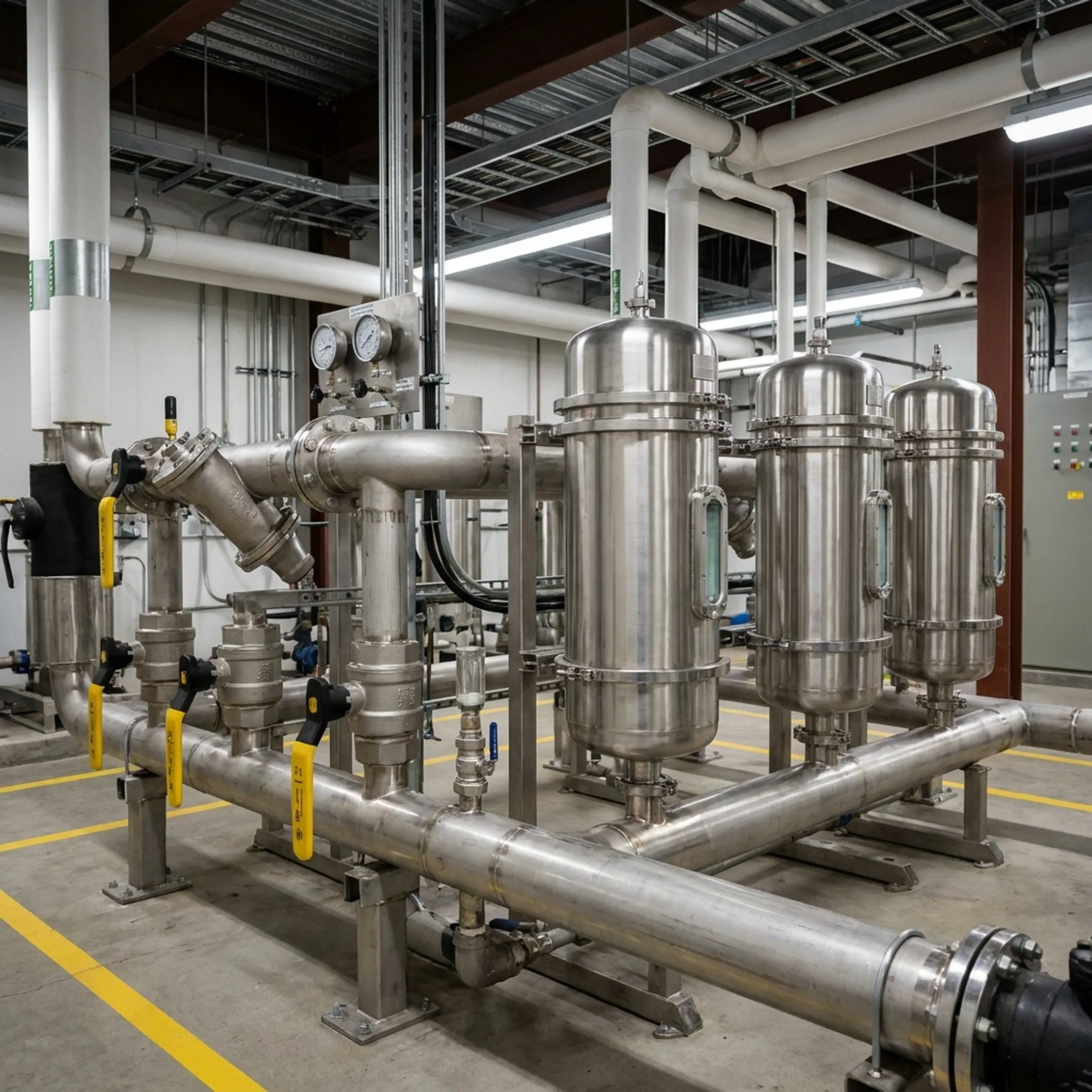

These strainers are widely utilized in chilled water systems, cooling tower systems, condenser water lines, and closed-loop water circuits. They provide critical protection for circulating pumps, heat exchangers, valves, and flow meters by capturing suspended solids, pipe scale, and debris before contaminants reach mission-critical cooling machinery.

Yes. Strainer baskets can be engineered with reinforced frames, support rings, or heavy-duty wire cages to withstand high fluid flow rates and pressure loads. Basket lengths from 4 inches to 36 inches can be paired with custom flange rings or handles to fit standard and custom strainer housings.
